Medium Pressure Needle Valves

Non-rotating stem prevents galling and scoring
Five stem styles:
- Vee
- Regulating
- Metering
- Micro-Metering
- Soft Tip
17-4PH Stem for longer service life. 316 wetted parts are also available by specifying option -316WP (see page MP-3)
Glass-filled Teflon packing for temperatures to 600°F (315°C)
Integral through holes for bracket mounting, a panel-mounting option is also available (see page MP-3)
Wide range of options allow customizing of valve
Positive gland locking device

Download Catalog

Link to configuration tool

Request a Quote

BuTech Medium Pressure Valves are designed for liquid and gas flow control in petroleum, chemical, power generating and general industrial applications.

Available in a variety of body styles, the valves are designed for operation at temperatures ranging from -100° to +600°F (-73° to +315°C). Optional packings and/or extended stuffing boxes increase the range to -423° to +1200°F (-253° to +648°C).

Their rugged construction provides assurance of fail-safe operation at pressures ranging to 20,000 PSI (1380 bar).

Materials of Construction

Standard materials of construction include 316 cold-worked stainless steel, 17-4PH, Ampco 45, and glass-filled teflon. All BuTech equipment may also be produced in any machinable metal. Some of the more common exotic materials used are:

Hastelloy™
Inconel™
Titanium
Monel 400™

Tube Sizes: 1/4" through 1" ; Pressures to 20,000 PSI (1380 bar); Type: M/P Cone-and-Thread

Tube O.D.	Connection	Orifice	Cv*	MAWP+
1/4"	1/4" M/P	0.109" (2.8)	0.31	20,000 PSI 1380 bar
3/8"	3/8" M/P	0.203" (5.2)	0.75	20,000 PSI 1380 bar
9/16"	9/16" M/P	0.312" (7.9)	1.75	20,000 PSI 1380 bar
3/4"	3/4" M/P	0.438" (11.1)	2.80	20,000 PSI 1380 bar
1"	1" M/P	0.562" (14.3)	5.20	20,000 PSI 1380 bar

*Cv values listed are for 2-way straight pattern valves excluding metering valves.
For 2-way angle pattern valves, increase Cv value by 50%.
For Metering Valves: Cv=.004, Port size=0.062" (1.57 mm) +Maximum allowable working pressure at 72°F (22° C)

1/4" M/P Tube, Coned and Threaded

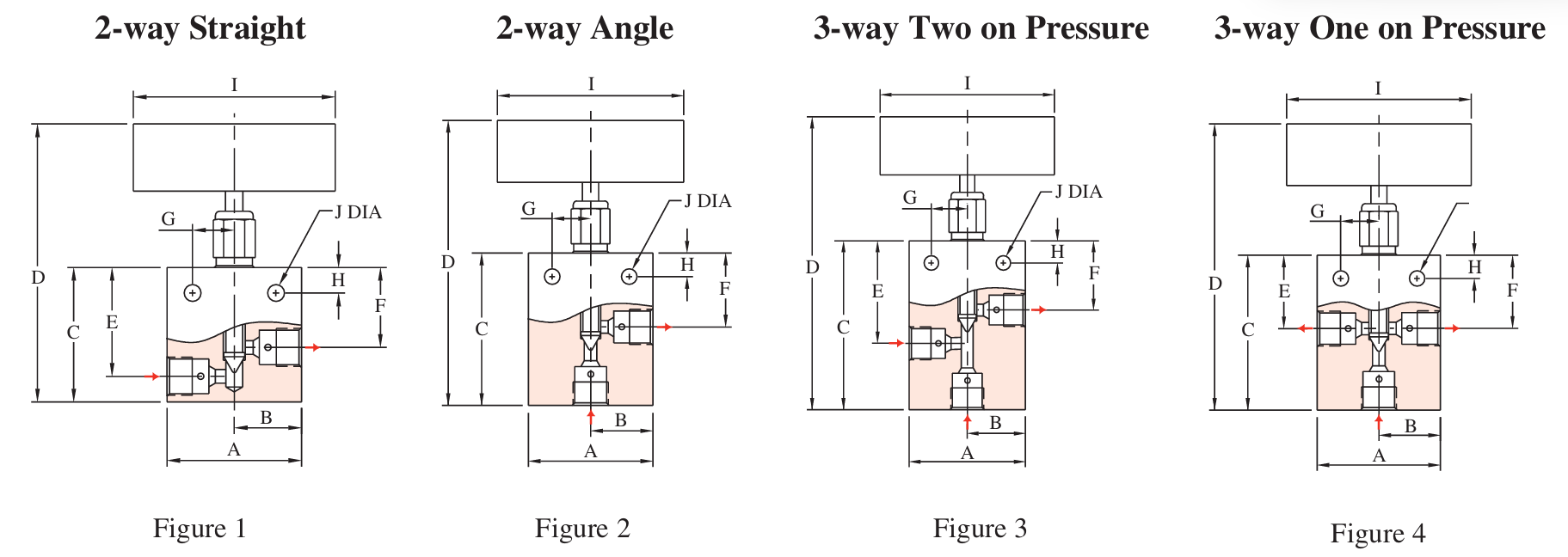

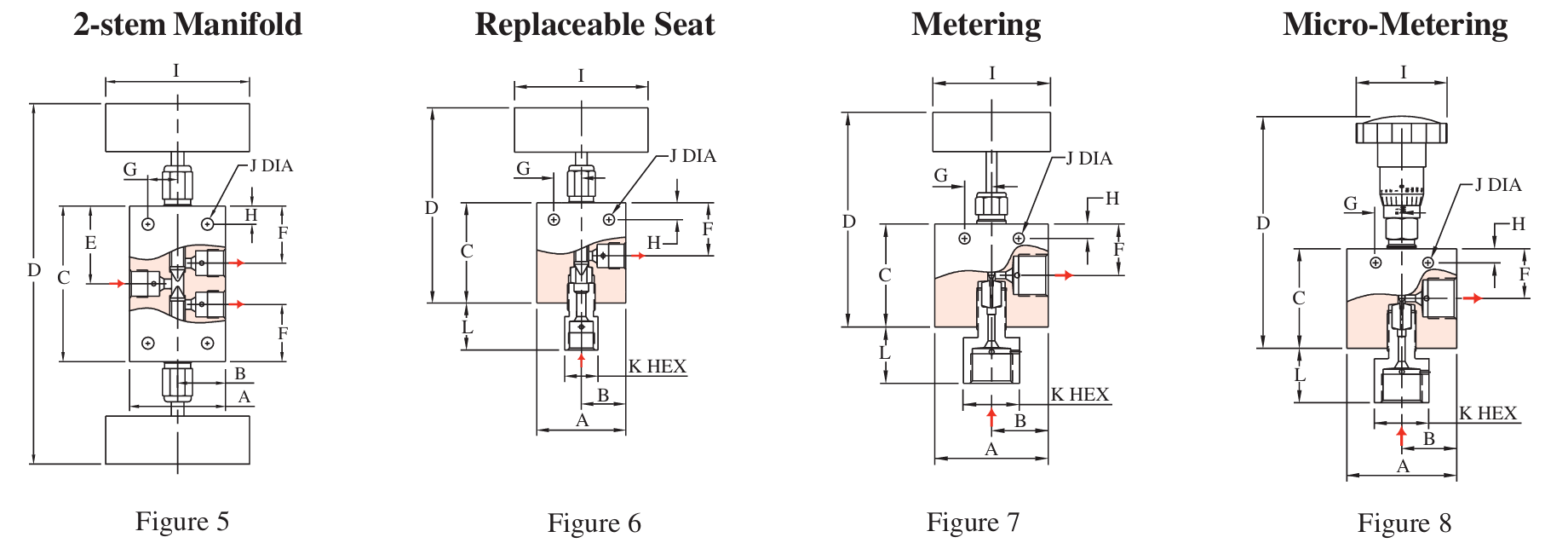

Catalog Number	Stem Style	Connection	A	B	C	D	E	F	G	H	I	J	K	L	Thk.	Fig
20UV41V 20UV41R	Vee Reg	1/4" M/P Tube	2.00" (50.8)	1.00" (25.4)	2.00" (50.8)	4.50" (114.3)	1.62" (41.1)	1.19" (30.2)	0.62" (15.7)	0.38" (9.7)	3.00" (76.2)	0.25" (6.4)	---	---	0.75" (19.1)	1
20UV42V 20UV42R	Vee Reg	1/4" M/P Tube	2.00" (50.8)	1.00" (25.4)	2.44" (62.0)	4.94" (125.5)	---	1.19" (30.2)	0.62" (15.7)	0.38" (9.7)	3.00" (76.2)	0.25" (6.4)	---	---	0.75" (19.1)	2
20UV43V 20UV43R	Vee Reg	1/4" M/P Tube	2.00" (50.8)	1.00" (25.4)	2.62" (66.5)	5.12" (130.0)	1.62" (41.1)	1.19" (30.2)	0.62" (15.7)	0.38" (9.7)	3.00" (76.2)	0.25" (6.4)	---	---	0.75" (19.1)	3
20UV44V 20UV44R	Vee Reg	1/4" M/P Tube	2.00" (50.8)	1.00" (25.4)	2.44" (62.0)	4.94" (125.5)	1.19" (30.2)	1.19" (30.2)	0.62" (15.7)	0.38" (9.7)	3.00" (76.2)	0.25" (6.4)	---	---	0.75" (19.1)	4
20UV45V 20UV45R	Vee Reg	1/4" M/P Tube	2.00" (50.8)	1.00" (25.4)	3.38" (85.9)	8.38" (212.9)	1.68" (42.7)	1.19" (30.2)	0.62" (15.7)	0.38" (9.7)	3.00" (76.2)	0.25" (6.4)	---	---	0.75" (19.1)	5
20UV46V 20UV46R	Vee Reg	1/4" M/P Tube	2.00" (50.8)	1.00" (25.4)	2.25" (57.2)	4.75" (120.7)	---	1.19" (30.2)	0.62" (15.7)	0.38" (9.7)	3.00" (76.2)	0.25" (6.4)	0.75" (19.1)	1.06" (26.9)	0.75" (19.1)	6
20MV46V	Meter	1/4" M/P Tube	2.00" (50.8)	1.00" (25.4)	2.62" (66.5)	6.72" (170.7)	---	1.31" (33.3)	0.69" (17.5)	0.38" (9.7)	3.00" (76.2)	0.25" (6.4)	0.75" (19.1)	1.06" (26.9)	1.00" (25.4)	7
20MMV46V	Micro-Meter	1/4" M/P Tube	2.00" (50.8)	1.00" (25.4)	2.62" (66.5)	7.36" (186.9)	---	1.31" (33.3)	0.69" (17.5)	0.38" (9.7)	2.35" (59.7)	0.25" (6.4)	0.75" (19.1)	1.06" (26.9)	1.00" (25.4)	8

3/8" M/P Tube, Coned and Threaded

Catalog Number	Stem Style	Connection	A	B	C	D	E	F	G	H	I	J	K	L	Thk.	Fig
20UV61V 20UV61R	Vee Reg	3/8" M/P Tube	2.00" (50.8)	1.00" (25.4)	2.00" (50.8)	4.50" (114.3)	1.62" (41.1)	1.19" (30.2)	0.62" (15.7)	0.38" (9.7)	3.00" (76.2)	0.25" (6.4)	---	---	0.75" (19.1)	1
20UV62V 20UV62R	Vee Reg	3/8" M/P Tube	2.00" (50.8)	1.00" (25.4)	2.44" (62.0)	4.94" (125.5)	---	1.19" (30.2)	0.62" (15.7)	0.38" (9.7)	3.00" (76.2)	0.25" (6.4)	---	---	0.75" (19.1)	2
20UV63V 20UV63R	Vee Reg	3/8" M/P Tube	2.00" (50.8)	1.00" (25.4)	2.62" (66.5)	5.12" (130.0)	1.62" (41.1)	1.19" (30.2)	0.62" (15.7)	0.38" (9.7)	3.00" (76.2)	0.25" (6.4)	---	---	0.75" (19.1)	3
20UV64V 20UV64R	Vee Reg	3/8" M/P Tube	2.00" (50.8)	1.00" (25.4)	2.44" (62.0)	4.94" (125.5)	1.19" (30.2)	1.19" (30.2)	0.62" (15.7)	0.38" (9.7)	3.00" (76.2)	0.25" (6.4)	---	---	0.75" (19.1)	4
20UV65V 20UV65R	Vee Reg	3/8" M/P Tube	2.00" (50.8)	1.00" (25.4)	3.38" (85.9)	8.38" (212.9)	1.68" (42.7)	1.19" (30.2)	0.62" (15.7)	0.38" (9.7)	3.00" (76.2)	0.25" (6.4)	---	---	0.75" (19.1)	5
20UV66V 20UV66R	Vee Reg	3/8" M/P Tube	2.00" (50.8)	1.00" (25.4)	2.25" (57.2)	4.75" (120.7)	---	1.19" (30.2)	0.62" (15.7)	0.38" (9.7)	3.00" (76.2)	0.25" (6.4)	0.75" (19.1)	1.06" (26.9)	0.75" (19.1)	6
20MV66V	Meter	3/8" M/P Tube	2.00" (50.8)	1.00" (25.4)	2.62" (66.5)	6.72" (170.7)	---	1.31" (33.3)	0.69" (17.5)	0.38" (9.7)	3.00" (76.2)	0.25" (6.4)	0.75" (19.1)	1.06" (26.9)	1.00" (25.4)	7
20MMV66V	Micro-Meter	3/8" M/P Tube	2.50" (63.5)	1.25" (31.8)	2.62" (66.5)	7.36" (186.9)	---	1.31" (33.3)	0.69" (17.5)	0.38" (9.7)	2.35" (59.7)	0.25" (6.4)	0.75" (19.1)	1.06" (26.9)	1.00" (25.4)	8

9/16" M/P Tube, Coned and Threaded

Catalog Number	Stem Style	Connection	A	B	C	D	E	F	G	H	I	J	K	L	Thk.	Fig
20UV91V 20UV91R	Vee Reg	9/16" M/P Tube	2.50" (63.5)	1.25" (31.8)	2.88" (73.2)	6.32" (160.5)	2.38" (60.5)	1.75" (44.5)	0.69" (17.5)	0.50" (12.7)	4.00" (101.6)	0.34" (8.6)	---	---	1.00" (25.4)	1
20UV92V 20UV92R	Vee Reg	9/16" M/P Tube	2.50" (63.5)	1.25" (31.8)	3.38" (85.9)	6.82"(173.2)	---	1.75" (44.5)	0.69" (17.5)	0.50" (12.7)	4.00" (101.6)	0.34" (8.6)	---	---	1.00" (25.4)	2
20UV93V 20UV93R	Vee Reg	9/16" M/P Tube	2.50" (63.5)	1.25" (31.8)	3.62" (91.9)	7.06" (179.3)	2.38" (60.5)	1.75" (44.5)	0.69" (17.5)	0.50" (12.7)	4.00" (101.6)	0.34" (8.6)	---	---	1.00" (25.4)	3
20UV94V 20UV94R	Vee Reg	9/16" M/P Tube	2.50" (63.5)	1.25" (31.8)	3.38" (85.9)	6.82"(173.2)	1.75" (44.5)	1.75" (44.5)	0.69" (17.5)	0.50" (12.7)	4.00" (101.6)	0.34" (8.6)	---	---	1.00" (25.4)	4
20UV95V 20UV95R	Vee Reg	9/16" M/P Tube	2.50" (63.5)	1.25" (31.8)	5.12" (130.0)	12.00" (304.8)	2.56" (65.0)	1.75" (44.5)	0.69" (17.5)	0.50" (12.7)	4.00" (101.6)	0.34" (8.6)	---	---	1.00" (25.4)	5
20UV96V 20UV96R	Vee Reg	9/16" M/P Tube	2.50" (63.5)	1.25" (31.8)	3.25" (82.6)	6.69" (169.9)	---	1.75" (44.5)	0.69" (17.5)	0.50" (12.7)	4.00" (101.6)	0.34" (8.6)	0.75" (19.1)	1.37" (34.8)	1.00" (25.4)	6

3/4" M/P Tube, Coned and Threaded

Catalog Number	Stem Style	Connection	A	B	C	D	E	F	G	H	I	J	K	L	Thk.	Fig
20V121V 20V121R	Vee Reg	3/4" M/P Tube	3.00" (76.2)	1.50" (38.1)	3.75" (95.3)	8.75"(222.3)	3.00" (76.2)	2.25" (57.2)	0.88" (22.4)	0.62" (15.7)	8.00" (203.2)	0.43" (10.9)	---	---	1.38"(35.1)	1
20V122V 20V122R	Vee Reg	3/4" M/P Tube	3.00" (76.2)	1.50" (38.1)	4.50" (114.3)	9.50"(241.3)	---	2.25" (57.2)	0.88" (22.4)	0.62" (15.7)	8.00" (203.2)	0.43" (10.9)	---	---	1.38"(35.1)	2
20V123V 20V123R	Vee Reg	3/4" M/P Tube	3.00" (76.2)	1.50" (38.1)	5.00" (127.0)	10.00" (254.0)	3.00" (76.2)	2.25" (57.2)	0.88" (22.4)	0.62" (15.7)	8.00" (203.2)	0.43" (10.9)	---	---	1.38"(35.1)	3
20V124V 20V124R	Vee Reg	3/4" M/P Tube	3.00" (76.2)	1.50" (38.1)	4.50" (114.3)	9.50"(241.3)	2.25" (57.2)	2.25" (57.2)	0.88" (22.4)	0.62" (15.7)	8.00" (203.2)	0.43" (10.9)	---	---	1.38"(35.1)	4
20V125V 20V125R	Vee Reg	3/4" M/P Tube	3.00" (76.2)	1.50" (38.1)	7.00" (177.8)	17.00"(431.8)	3.50" (88.9)	2.25" (57.2)	0.88" (22.4)	0.62" (15.7)	8.00" (203.2)	0.43" (10.9)	---	---	1.38"(35.1)	5
20V126V 20V126R	Vee Reg	3/4" M/P Tube	3.00" (76.2)	1.50" (38.1)	3.75" (95.3)	8.75"(222.3)	---	2.25" (57.2)	0.88" (22.4)	0.62" (15.7)	8.00" (203.2)	0.43" (10.9)	1.38" (35.1)	1.65"(41.9)	1.38"(35.1)	6

1" M/P Tube, Coned and Threaded

Catalog Number	Stem Style	Connection	A	B	C	D	E	F	G	H	I	J			Thk.	Fig
20V161V 20V161R	Vee Reg	1" M/P Tube	4.12" (104.6)	2.06" (52.3)	4.75" (120.7)	10.19" (258.8)	3.75"(95.3)	2.81" (71.4)	1.25" (31.8)	1.12" (28.4)	10.00" (254.0)	0.56" (14.2)	---	---	1.75" (44.5)	1
20V162V 20V162R	Vee Reg	1" M/P Tube	4.12" (104.6)	2.06" (52.3)	5.50" (139.7)	10.94"(277.9)	---	2.81" (71.4)	1.25" (31.8)	1.12" (28.4)	10.00" (254.0)	0.56" (14.2)	---	---	1.75" (44.5)	2
20V163V 20V163R	Vee Reg	1" M/P Tube	4.12" (104.6)	2.06" (52.3)	6.00" (152.4)	11.44" (290.6)	3.75" (95.3)	2.81" (71.4)	1.25" (31.8)	1.12" (28.4)	10.00" (254.0)	0.56" (14.2)	---	---	1.75" (44.5)	3
20V164V 20V164R	Vee Reg	1" M/P Tube	4.12" (104.6)	2.06" (52.3)	5.50" (139.7)	10.94"(277.9)	2.81" (71.4)	2.81" (71.4)	1.25" (31.8)	1.12" (28.4)	10.00" (254.0)	0.56" (14.2)	---	---	1.75" (44.5)	4
20V165V 20V165R	Vee Reg	1" M/P Tube	4.12" (104.6)	2.06" (52.3)	8.00" (203.2)	18.88" (479.6)	4.00" (101.6)	2.81" (71.4)	1.25" (31.8)	1.12" (28.4)	10.00" (254.0)	0.56" (14.2)	---	---	1.75" (44.5)	1
20V166V 20V166R	Vee Reg	1" M/P Tube	4.12" (104.6)	2.06" (52.3)	4.88" (124.0)	10.62" (269.7)	---	2.81" (71.4)	1.56" (39.6)	1.12" (28.4)	10.00" (254.0)	0.56" (14.2)	1.75" (44.5)	2.08" (52.8)	1.75" (44.5)	2

Configure Repair kits or search parts in seconds

Repair Kit Selector Part Number Search

*Complete catalog number by adding the following:

V, R or S for stem type
Suffix for special packing materials (see page MP-3) (ex. -GR for Grafoil packings)
Suffix for special materials (ex. -HC for Hastelloy)
-LT or -HT for cryogenic or high-temperature service
-WAO for a valve fitted with an actuator

+Complete catalog number by adding the flow path designator:

2-way straight
2-way angle
3-way, 2 connections on pressure
3-way, 1 connection on pressure
2-stem manifold
2-way angle with replaceable seat

Examples:

20UV42V specifies a 2-way angle valve for 1/4" tube with a Vee stem
20UV91R-PM specifies a 2-way straight valve for 9/16" tube with regulating stem and panel-mount packing gland option

Replacement Parts

BuTech offers replacement parts in a variety of packages so you can purchase just the parts you need.

Replacement Stem Kit contains just the stem
Replacement Packing Kit contains all soft packing rings
Repair Kits contain stem, stem sleeve, stem nuts and washers, packings and packing washers (replacement seat where applicable)

	Repair Kits		Replacement Stem	Replacement Packings	Replacement Valve Body
Valve Series	All others	Replaceable Seat	Replacement Stem	Replacement Packings	Replacement Valve Body
20UV4	RK-20UV4*	RK-20UV46*	20S4*	20PK4*	20UV4+
20UV6	RK-20UV6*	RK-20UV66*	20S6*	20PK6*	20UV6+
20UV9	RK-20UV9*	RK-20UV96*	20S9*	20PK9*	20UV9+
20V12	RK-20V12*	RK-20V126*	20S12*	20PK12*	20V12+
20V16	RK-20V16*	RK-20V166*	20S16*	20PK16*	20V16+
