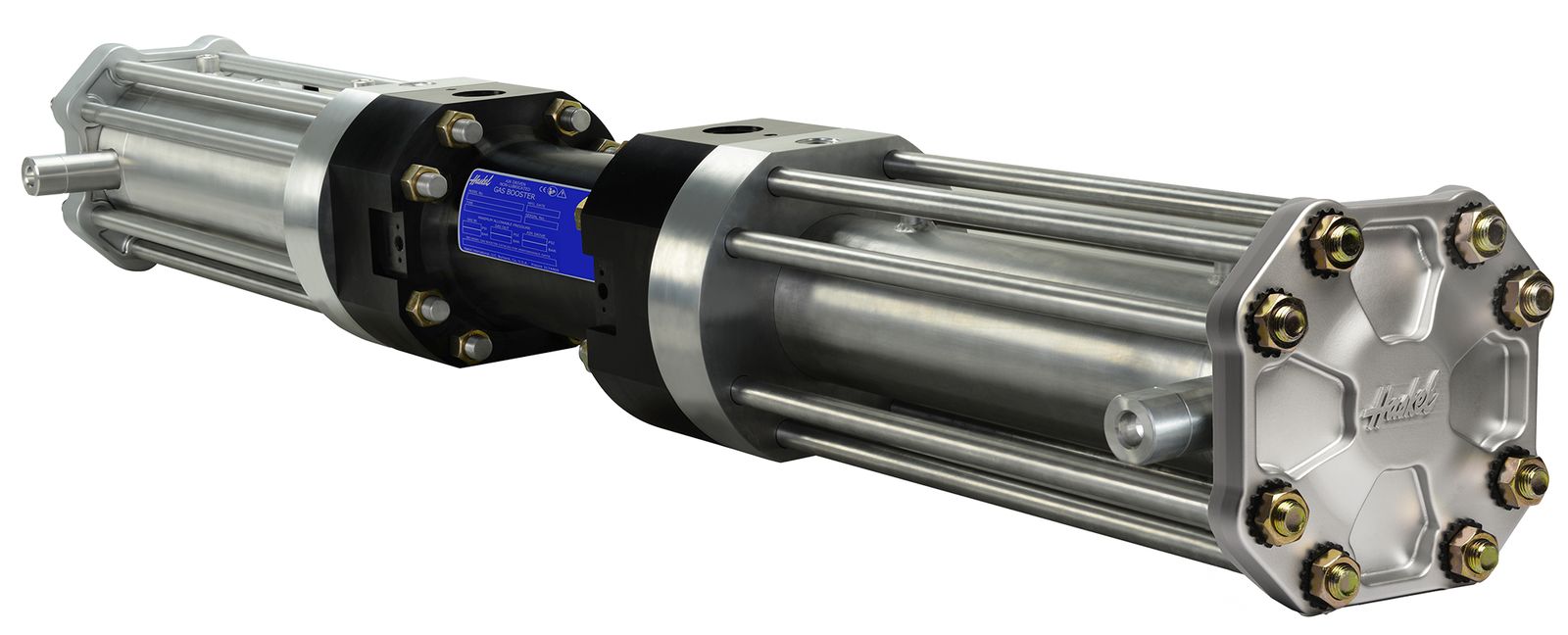

Hydraulic Driven Gas Boosters - Single Stage and Double Acting Models H24

Designed to compress a wide range of gases up to pressures of 1034 bar (15.000 psi)
Constructed from hydrogen suitable materials to resist hydrogen embrittlement.
Suitable for constant 24/7 operation or daily intermittent use when demand fluctuates.
Oil & contaminant free compression suitable for ultra-high gas purity applications.
Speed turn down and cycle control for variable gas flowrates.

Constructed from hydrogen suitable materials to resist hydrogen embrittlement.
Suitable for constant 24/7 operation or daily intermittent use when demand fluctuates.
Oil & contaminant free compression suitable for ultra-high gas purity applications.
Speed turn down and cycle control for variable gas flowrates.
Suitable for a range of dynamic inlet pressures to accommodate various different applications.
Available as a standalone piece of equipment or as a packaged solution provided by the H-Drive System Module.
Available as a single stage configuration or a two stage configuration when higher ratios of compression are required.
ATEX certified – EX II 3G II C

Model		Condition Limitations			Typical Scenario Performance at 15 cycles/min
		Min. Inlet Pressure	Max. Outlet Pressure	Max. Compression Ratio	Inlet	Outlet
		Min. Inlet Pressure	Max. Outlet Pressure	Max. Compression Ratio	(bar)	(bar)
Single stage and double acting models	H24-150	50 (3.45)	4500 (310)	6:1	30	180
	H24-150	50 (3.45)	4500 (310)	6:1	50	300
	H24-90	50 (3.45)	10,000 (690)	6:1	84	500
	H24-90	50 (3.45)	10,000 (690)	6:1	115	690
	H24-63	100 (6.9)	15,000 (1034)	6:1	173	1034
	H24-63	100 (6.9)	15,000 (1034)	6:1	500	1034
