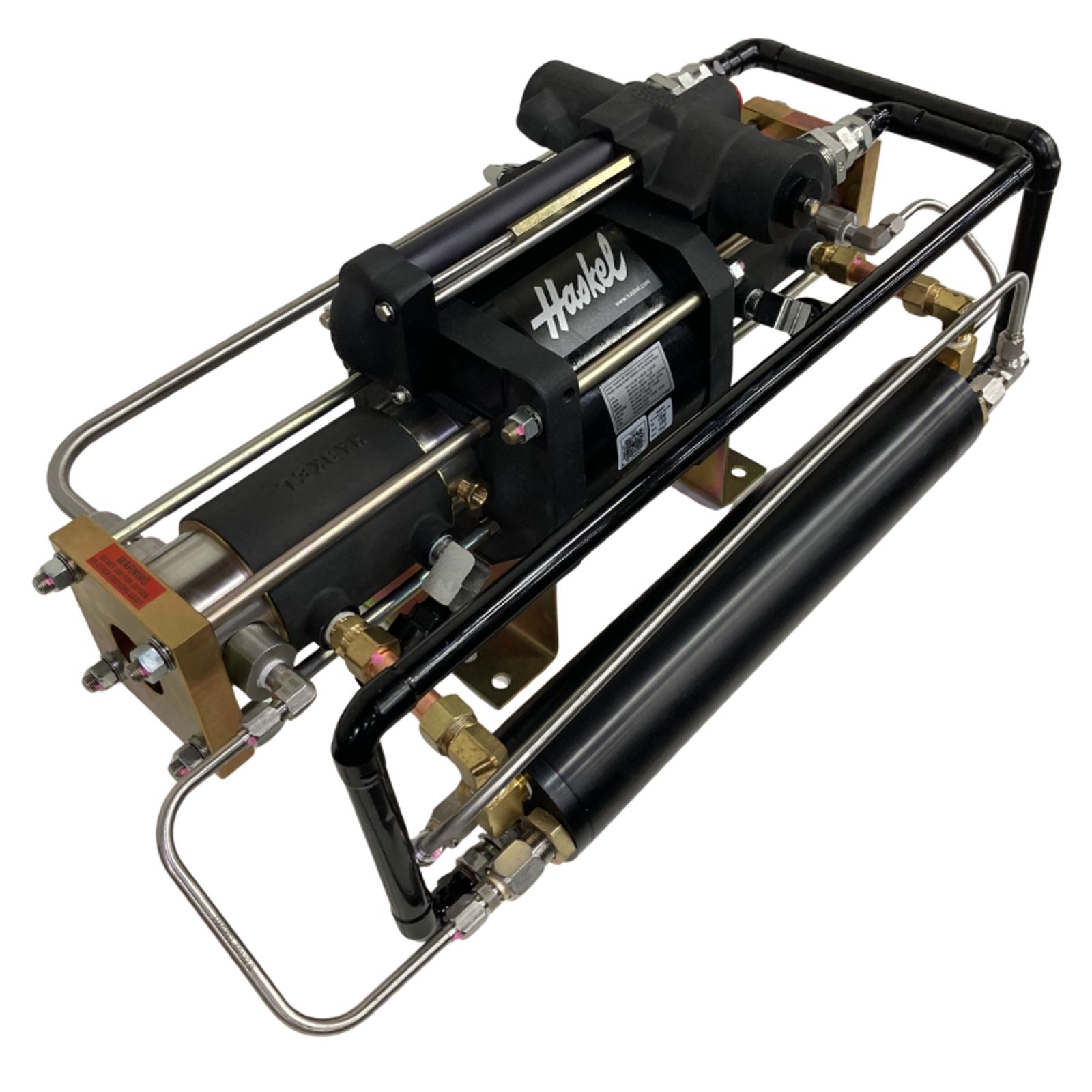

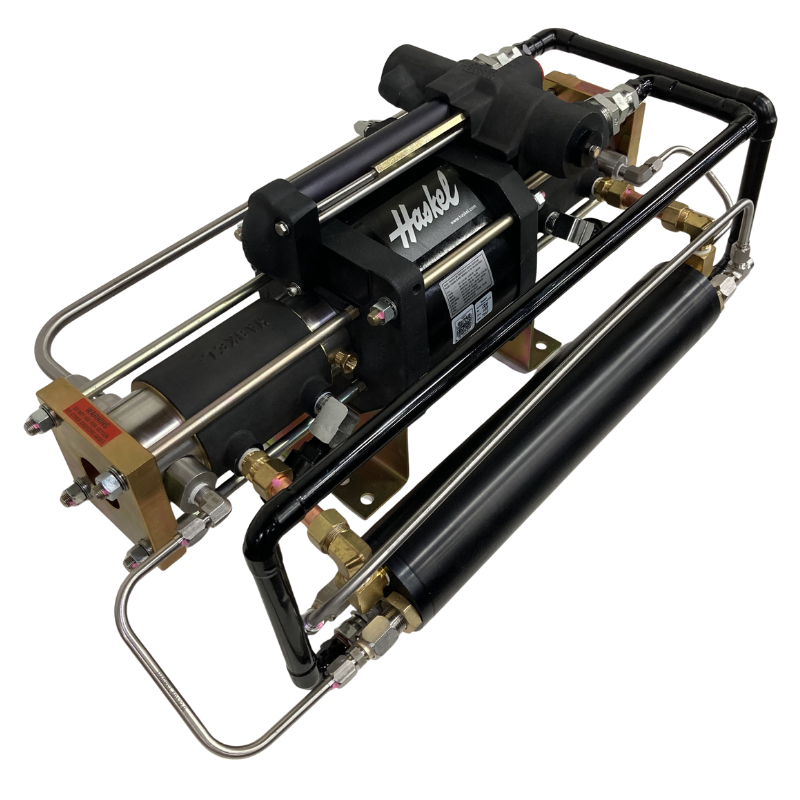

Air Driven Gas Booster - AGD Series 8 Double Acting, Single Stage

The Haskel AGD Series 8 (8″) Double-Acting, Single-Stage gas boosters provide high-volume, efficient compression, doubling the output per cycle compared to single-acting models. They feature a 2.8:1 to 60:1 nominal pressure ratio (depending on model) with air-driven, oil-free operation, making them ideal for high-flow, low-to-medium pressure applications up to 800 psi or more.

Key Features and Performance

• Double-Acting Design: Boosts gas on both strokes, significantly increasing flow capacity.
• Performance Range: Capable of handling high volumes with maximum inlet pressures.
• Operating Ratios: Available in various ratios, such as the 8AGD-2.8 (2.8:1) and higher pressure options, typically operating with a max air drive pressure of 8.96 bar (130 psi).
• Versatility: Suitable for most industrial gases.
• Operation: Pneumatically driven, eliminating the need for electrical connections and allowing for safe operation in hazardous environments.
• Control: The units can stall at a predetermined pressure and hold it without consuming power
