The 2 and 2.2 hp models expand the series into very high‑pressure operation while offering greater flexibility in air drive configuration. With options for single, double, or triple air heads and a wide selection of ratios, these models are suited for advanced testing, intensification, and process applications where pressure range and adaptability are more important than maximum flow.

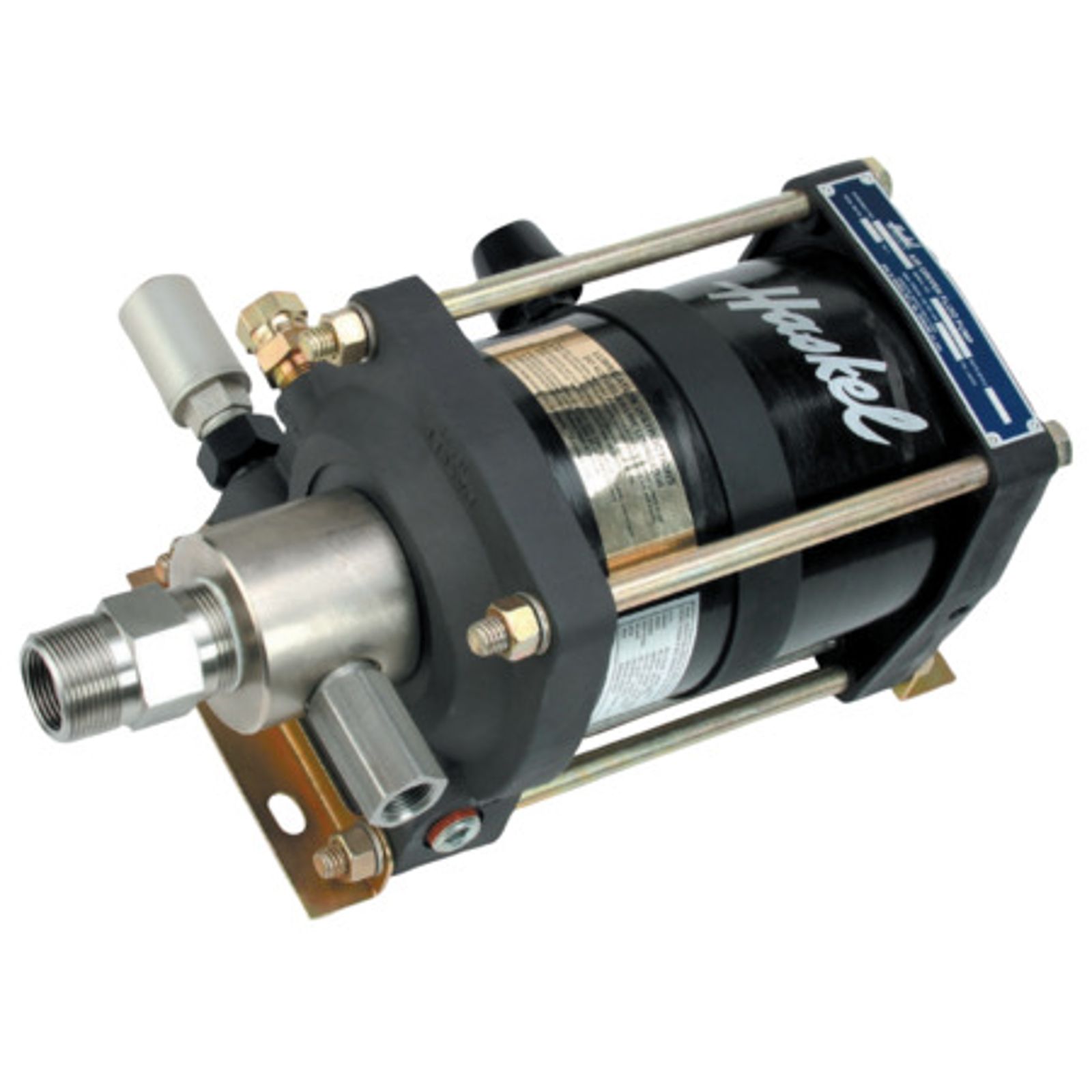

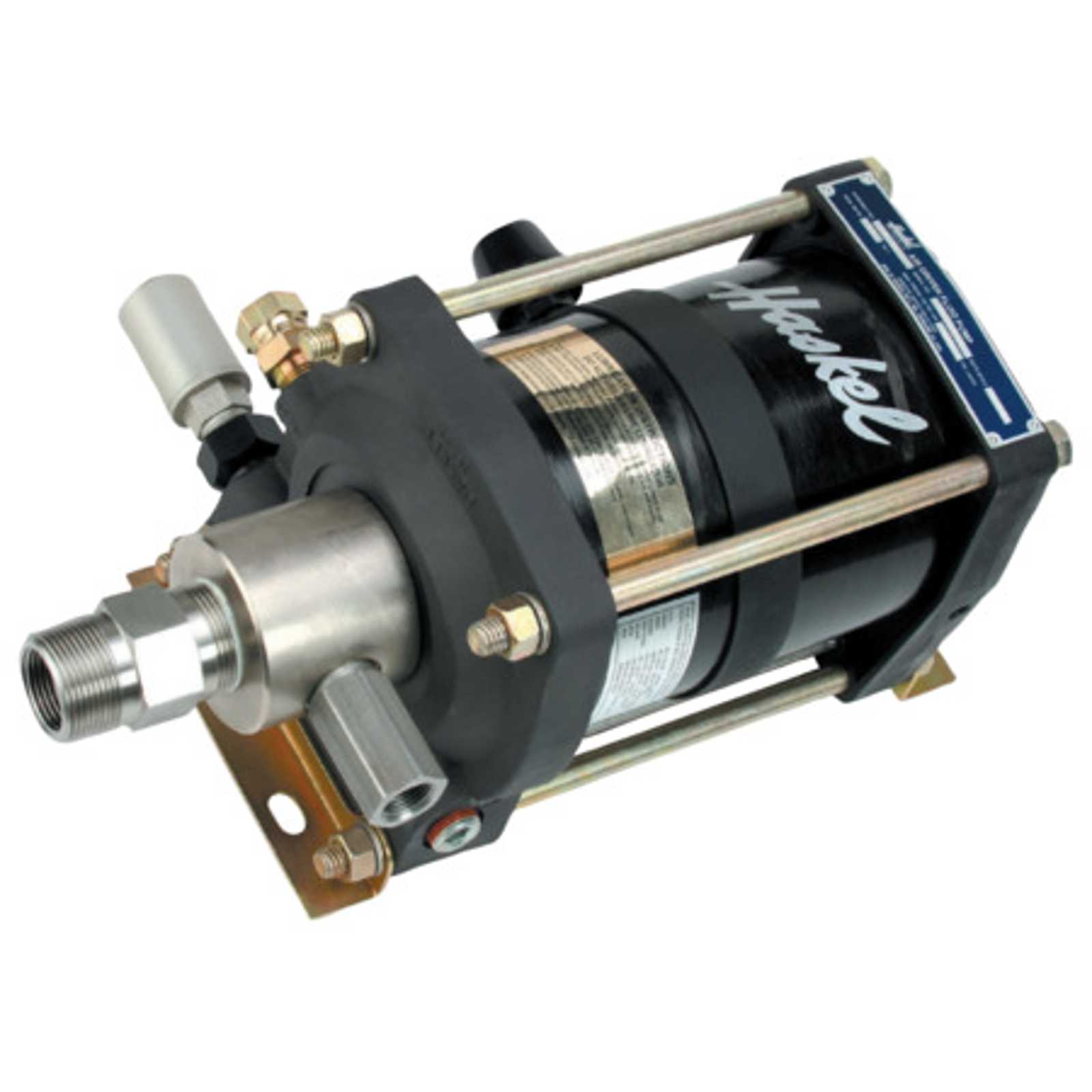

High-Pressure Air Driven Liquid Pump 2 and 2.2 hp Series

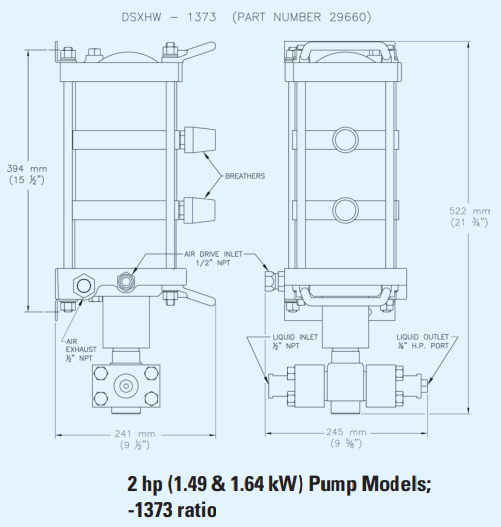

_Pump_Models.png?format=pjpeg&width=100&quality=10)

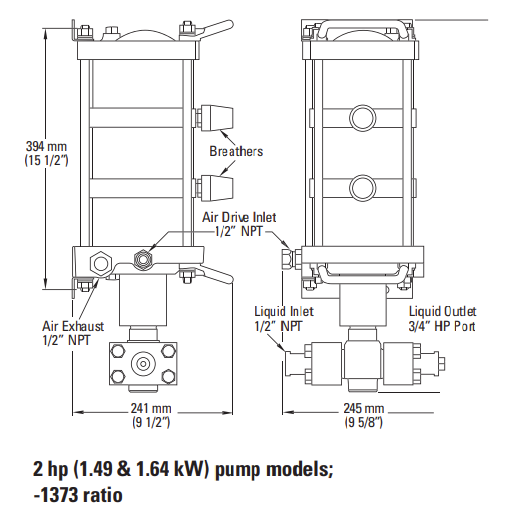

_pump_models_-1373.png?format=pjpeg&width=100&quality=10)
- Choice of 16 models, 13 ratios, 46 possible combinations
- Output pressures to 100000 psi (7000 bar)
- Flows to 5 gpm (15 l/min)
- Choice of wetted materials
- Double and triple air heads
- Drive pressure 3 to 100 psi (.2 to 7 bar)
Key Features
- Choice of 16 models, 13 ratios, 46 possible combinations
- Output pressures to 100000 psi (7000 bar)
- Flows to 5 gpm (15 l/min)
- Choice of wetted materials
- Double and triple air heads
- Drive pressure 3 to 100 psi (.2 to 7 bar)
Max Air |
Air Head |
Power | Pump Model Code | Ratio Dash no. | Actual Area Ratio | Maximum Rated Output Pressure | Displacement/Cycle | Maximum Flow | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Continuous | Intermittent | ||||||||||||
psi | bar | psi | bar | cu in | ml | cu in/min | l/min | ||||||
150 psi/10.5 bar |
Double |

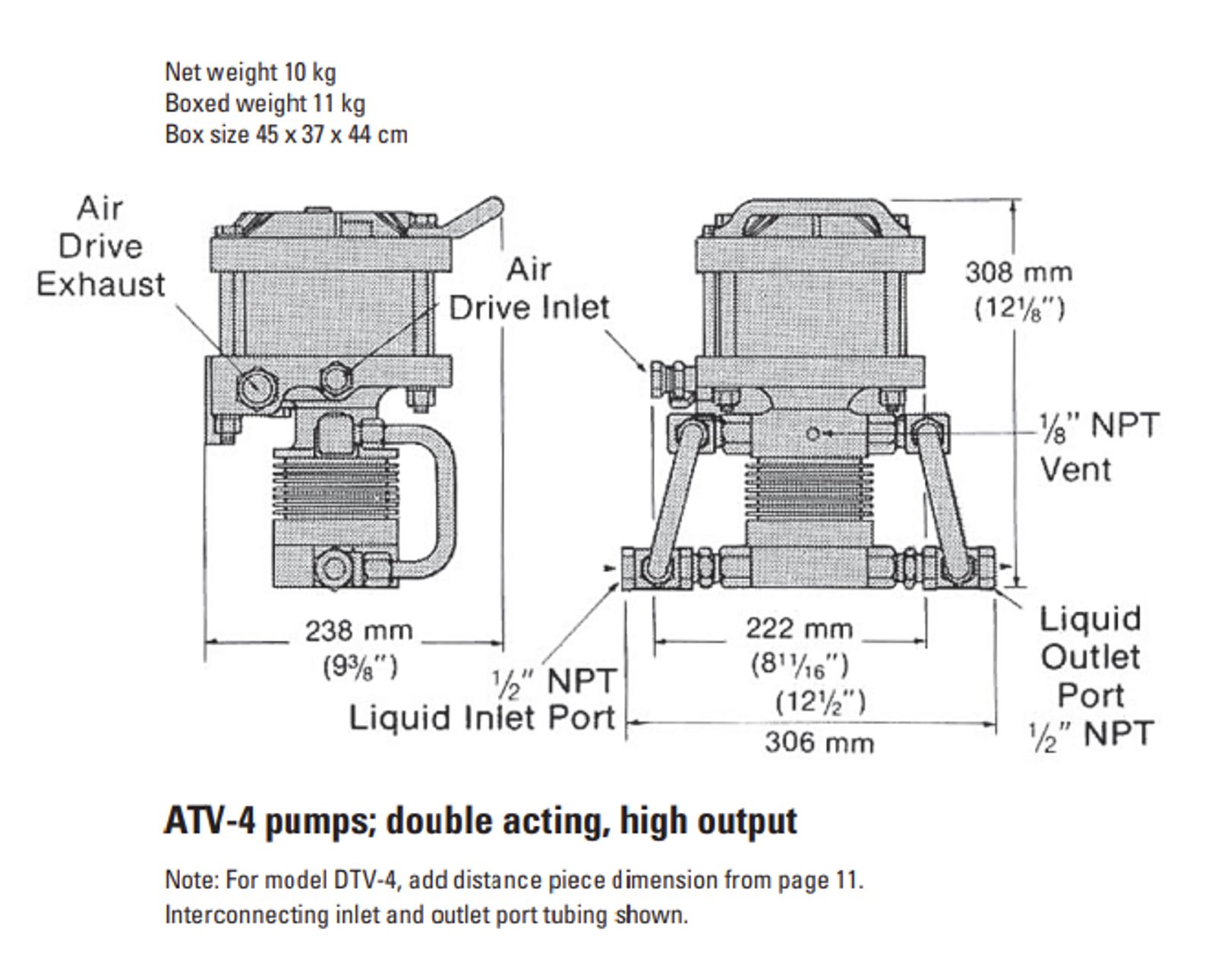

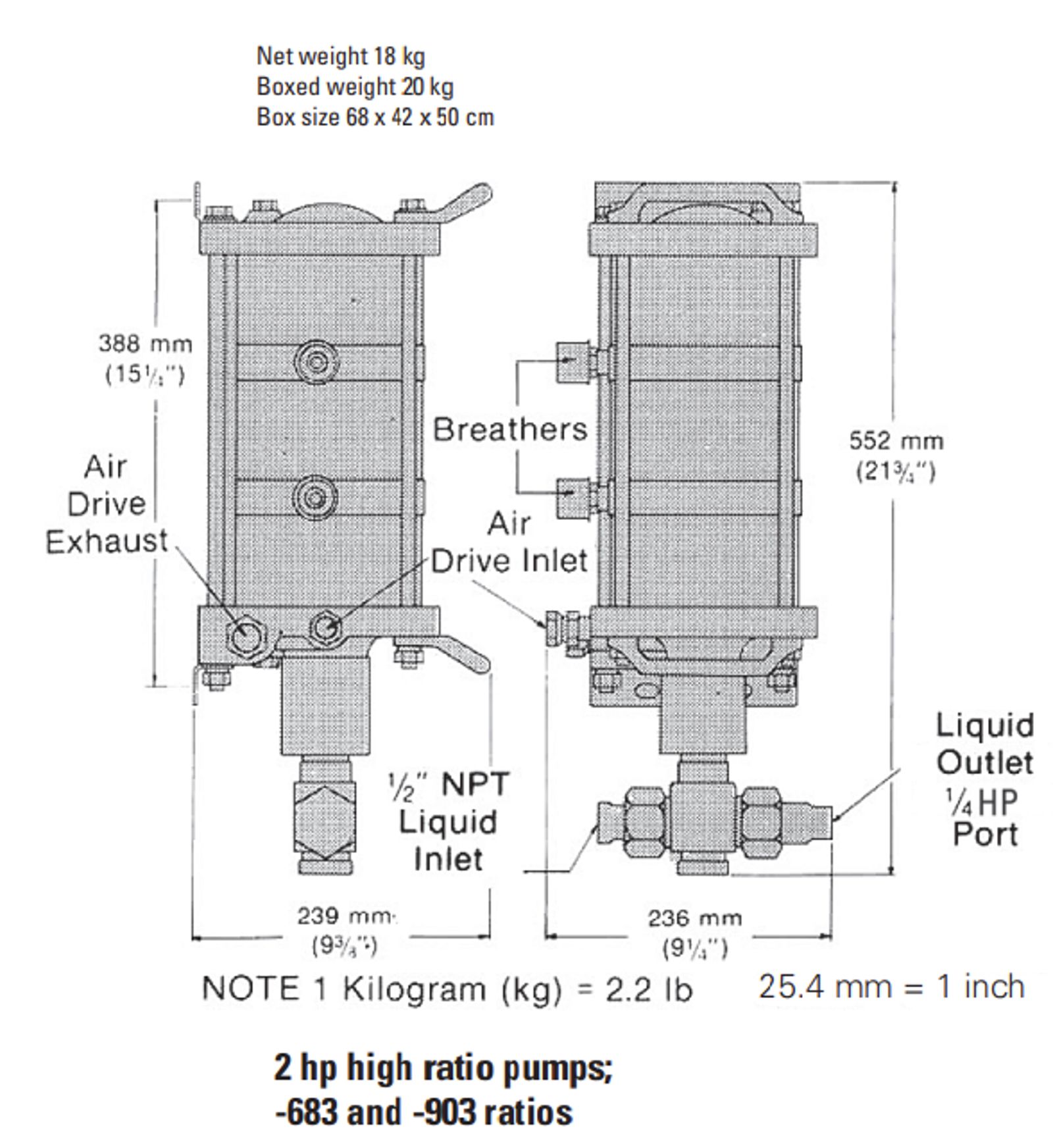

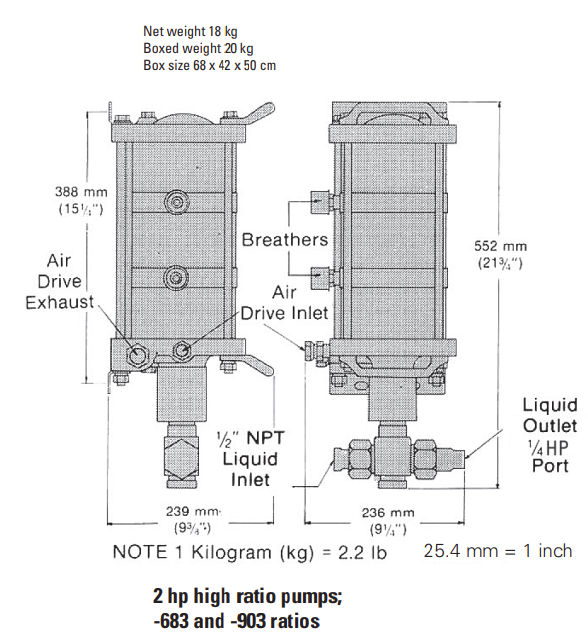

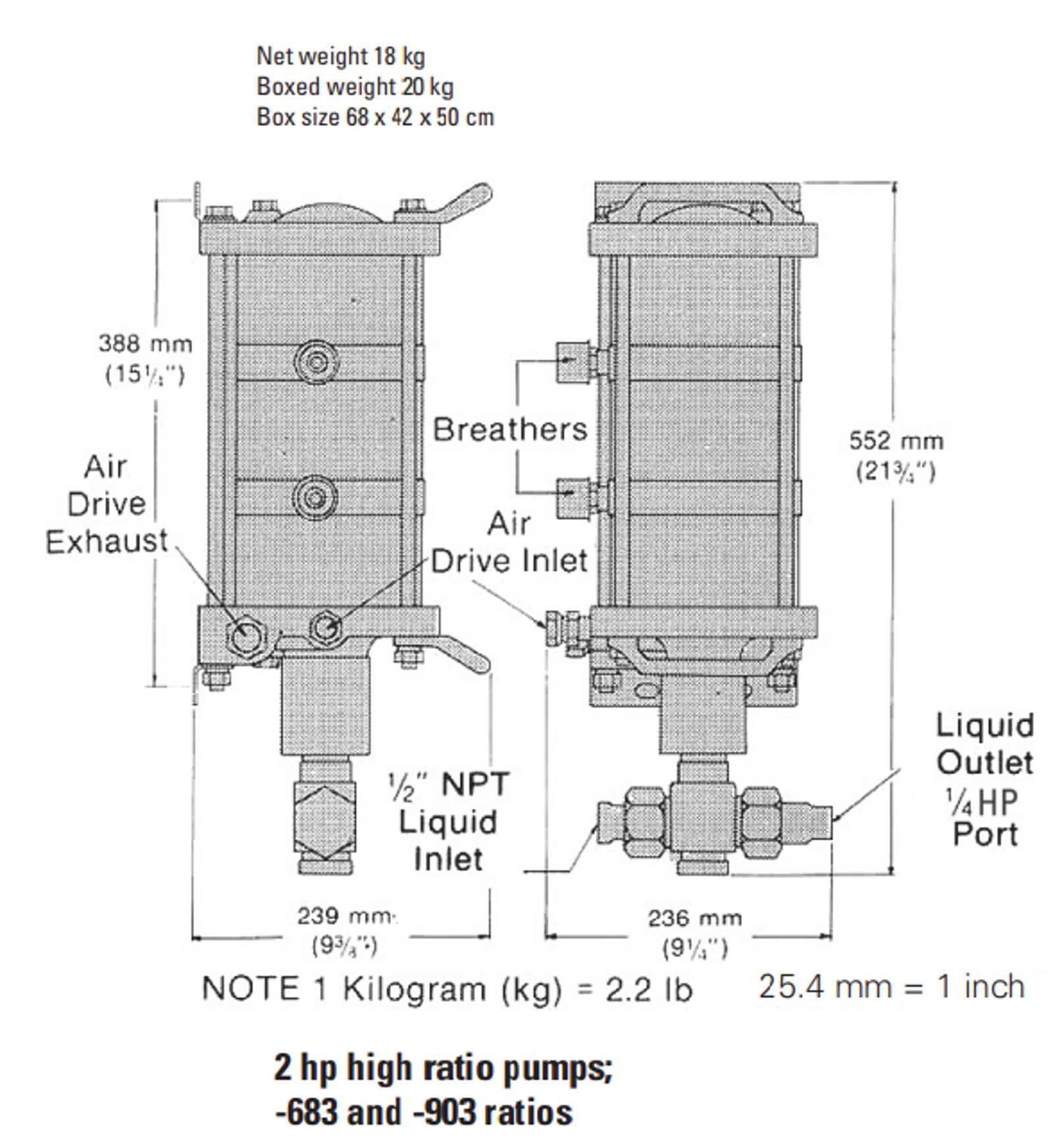

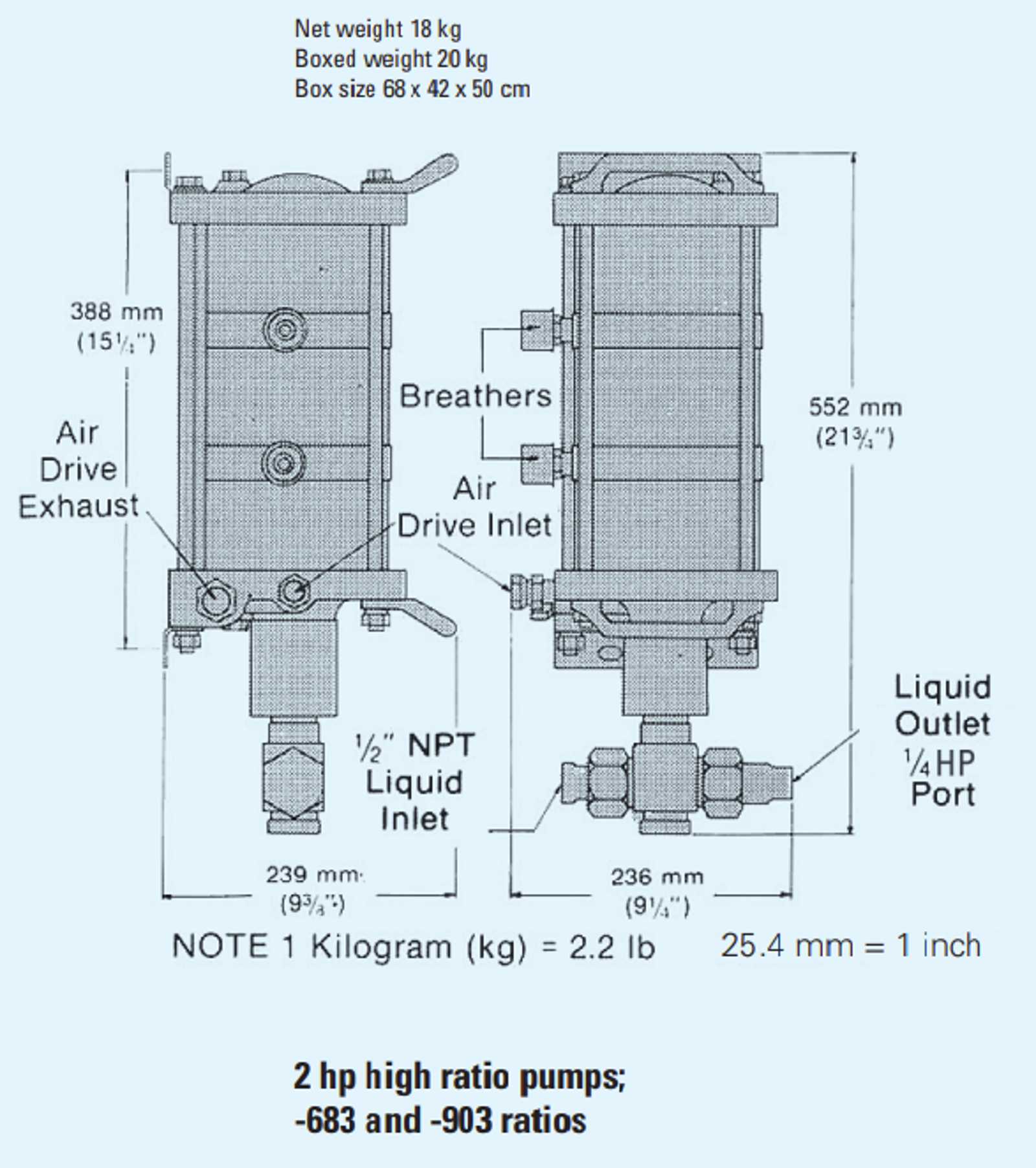

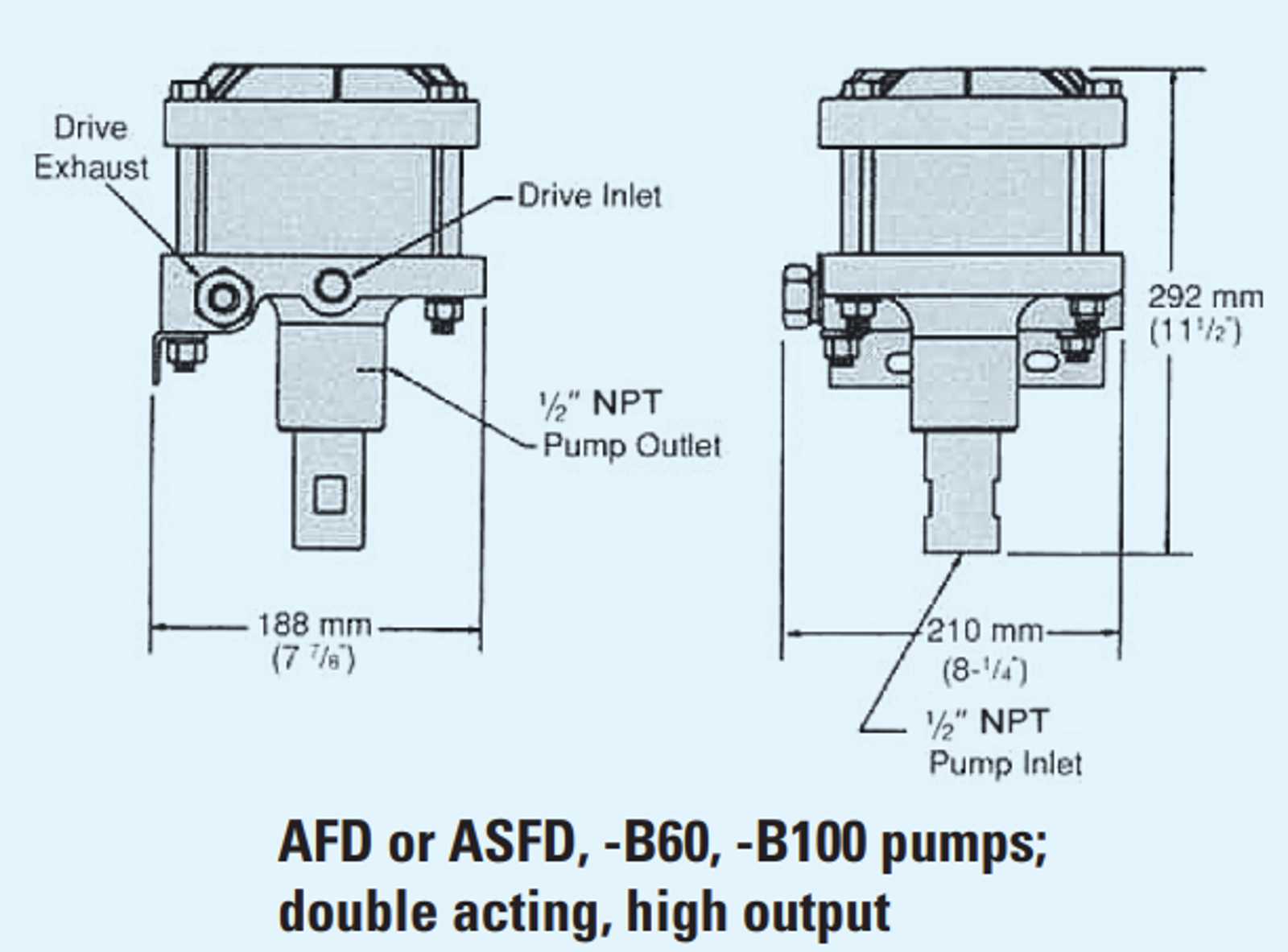

2 hp | ATV | -8 | 9.2 | 850 | 59 | 1200 | 83 | 20 | 328 | 3200 | 52.4 |
| AW, ASF, DSF, DSTV | -B22 -B32 -52 -72 -122 | 23 34 57 80 138 | 3200 4800 5000 11000 15000 | 221 331 345 759 1034 | 3200 4800 8000 11000 19000 | 221 331 552 759 1310 | 4.05 2.70 1.62 1.16 0.67 | 66.4 44.3 26.6 19.0 11.0 | 1215 810 488 348 201 | 19.9 13.3 8.0 5.7 3.3 | |||
| HF, HSF, DSHF | -202 -302 | 230 346 | 3000 3000 | 2069 2069 | 33000 50000 | 2276 3448 | 0.41 0.27 | 6.7 4.5 | 92 62 | 1.5 1.0 | |||
| DSXHF | -452 -602 | 520 690 | 30000 30000 | 2069 2069 | 70000 75000 | 4828 5172 | 0.18 0.14 | 3.0 2.3 | 41 32 | 0.7 0.5 | |||
100 psi/7 bar | Triple | 2 hp | DXHF, DSXHF | -683 -903 | 780 1038 | 30000 30000 | 2069 2069 | 70000 75000 | 4828 5172 | 0.18 0.14 | 3.0 2.3 | 25 20 | 0.41 0.33 |
| DSXHW | -1373 | 1575 | 30000 | 2069 | 100000 | 6897 | 0.086 | 1.4 | 12 | 0.197 | |||
2.2 hp | AFD-DFD-ASFD-DSFD | -B60 | 69 | 6500 | 448 | 6500 | 448 | 1.34 | 2.2 | 369 | 6.0 | ||
2 thru 3hp
MODEL | WETTED MATERIALS | NON METALLICS | |
|---|---|---|---|
PUMP SECTION | PLUNGERS | ||
| AW | Nickel Plated Steel & SS | 440C SS | Urethane, Buna N, PTFE |
| AFD | Nickel Plated Steel & SS | 416 SS | UHMWPE, Buna, PTFE, Ryton |
| DFD | Nickel Plated Steel & SS | 416 SS | UHMWPE, Viton, PTFE, Rtyon |
| ASFD | All SS | 15.5PH SS | UHMWPE, Viton, PTFE, Rtyon |
| ASF | All SS | 440C SS | UHMWPE, Viton, PTFE, Rtyon |
| DSFD | Separation - All SS | 15.5PH SS | UHMWPE, Viton, PTFE, Rtyon |
| DSF | Separation - All SS | 440C SS Hard chrome plated | UHMWPE, Viton, PTFE, Rtyon |
| HF | Nickel Plated Steel & SS | Stellite 15-5PH SS* | UHMWPE, Buna N |
| HSF | All SS | Stellite 15-5PH SS* | UHMWPE, Buna N |
| DSHF | Separation - All SS | Stellite 15-5PH SS* | UHMWPE, Buna N |
| DSXHF | Separation - All SS | Stellite 15-5PH SS | UHMWPE, Buna N |
| DSXHW | Separation - All SS | Stellite 15-5PH SS | Urethane, PTFE |
| DSTV-1.5 | Separation - All SS | 17.4PH SS | PTFE, Viton |
| DSTV | Separation - All SS | 440C SS Hard chrome plated | PTFE, Viton |
*Except -202 ratio is chrome plated 440 SS
Configure seal kits or search parts in seconds
To assist in easier pump selection, we have classified various popular liquids in groups and assigned to each group a service code. These service code numbers are featured in the chart to the right and are designated for each pump series. Seals and other wetted materials can be supplied to suit your preferred liquid. For advice, please contact our technical services personnel at 818-843-4000.
Service Codes
1 - Petroleum-based oils, kerosene, ethylene glycol, water with 5% soluble oil.
2 - Plain water, diesel fuel.
3 - Most phosphate ester-based hydraulic e.g. Pydraul, Lindol, Cellulube, Fyrquel, and Houghtosafe 1120 and petroleum-based solvents compatible with UHMWPE (Ultra-high Molecular Weight Polyethylene) dynamic seals and Viton static seals.
4 - Petroleum-based solvents, e.g. aromatic hydrocarbons (benzene, toluene, xylene, hylene, etc.); chlorinated solvents (trichlorethylene, carbon tetrachloride, chlorobenzine, etc.); mercaptans, Dowtherm A, solvents etc.); Dowtherm E, plus all of Group 3 and some mildly corrosive acids compatible with wetted materials. See note 5A for service with methyl-ethyl-ketone, methyl acetone, diacetone, alcohol and freon 22.
5 - Skydrol and Aerosafe hydraulic acetone and some alcohols (ethyl, methyl, and isopropyl). 5A. Also suitable for these if Viton static seals are replaced with EPR; specify number 51331 (no extra charge); e.g., 51331-MDTV-5. Most phosphate ester-based solidify at approximately 30000 psi.
6 - Deionized water; demineralized water.
