The 3 hp model is intended for continuous or high‑duty extreme‑pressure applications where both pressure and air drive power must be sustained over longer cycles. It uses the same proven high‑pressure architecture as the 2 and 2.2 hp models, but is optimized for applications that demand greater drive energy and operational margin.

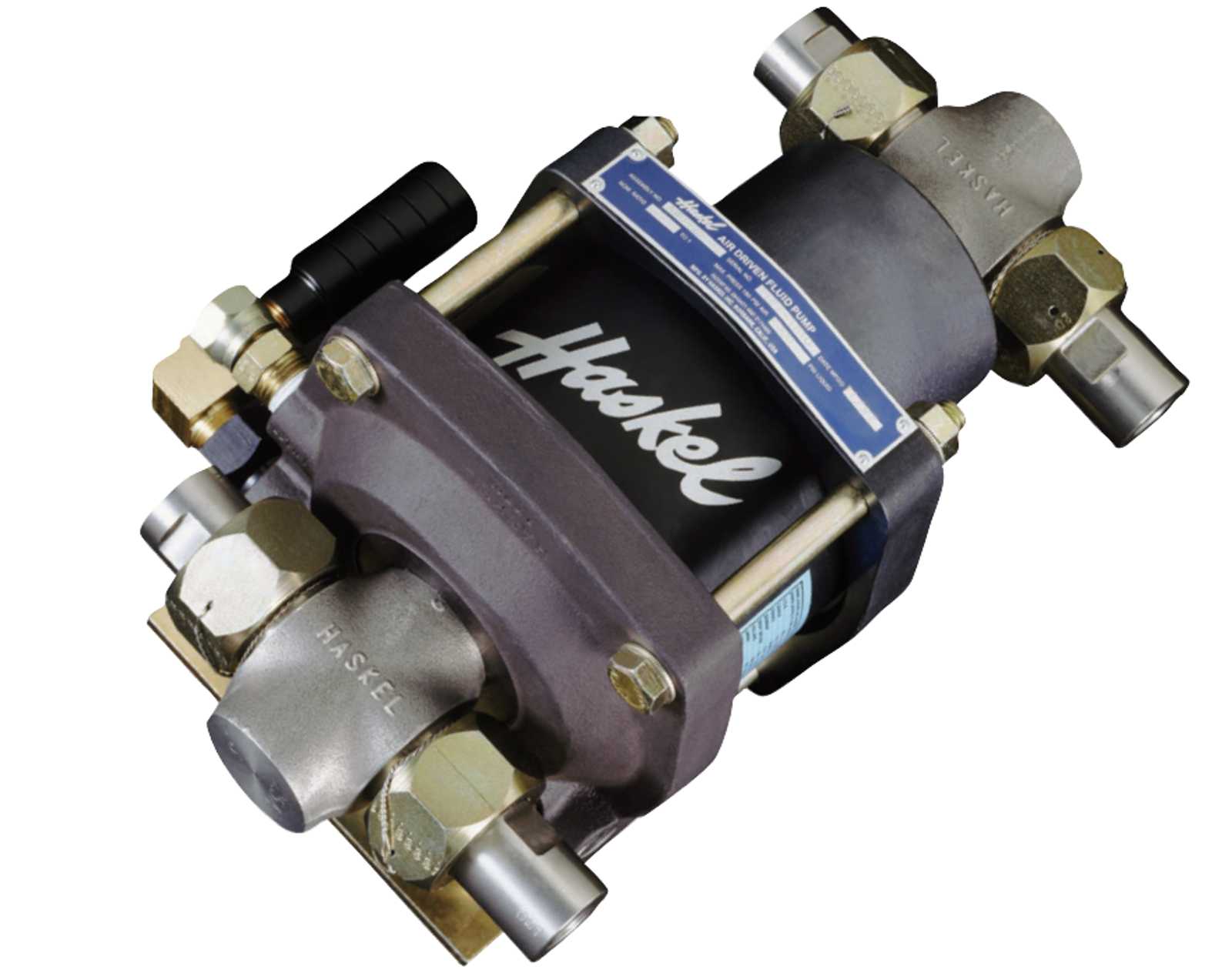

High-Pressure Air Driven Liquid Pump 3 hp Series
- One model available in 8 ratios
- Output pressures to 33000 psi (2275 bar)
- Flow rates to 8 gpm (30 l/min)
- Single air head
- Drive pressure 3 to 150 psi (.2 to 10 bar
Key Features
- One model available in 8 ratios
- Output pressures to 33000 psi (2275 bar)
- Flow rates to 8 gpm (30 l/min)
- Single air head
- Drive pressure 3 to 150 psi (.2 to 10 bar

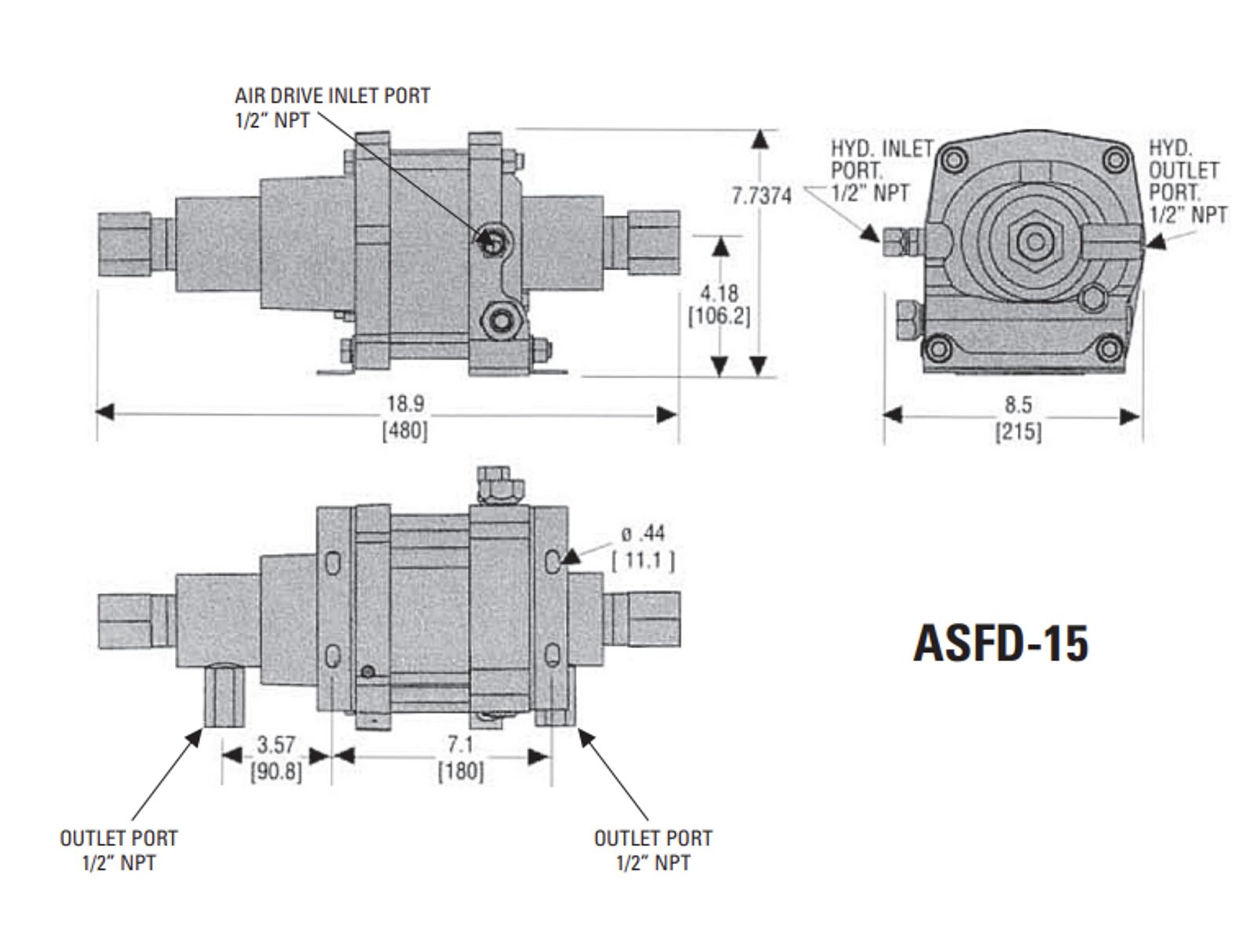

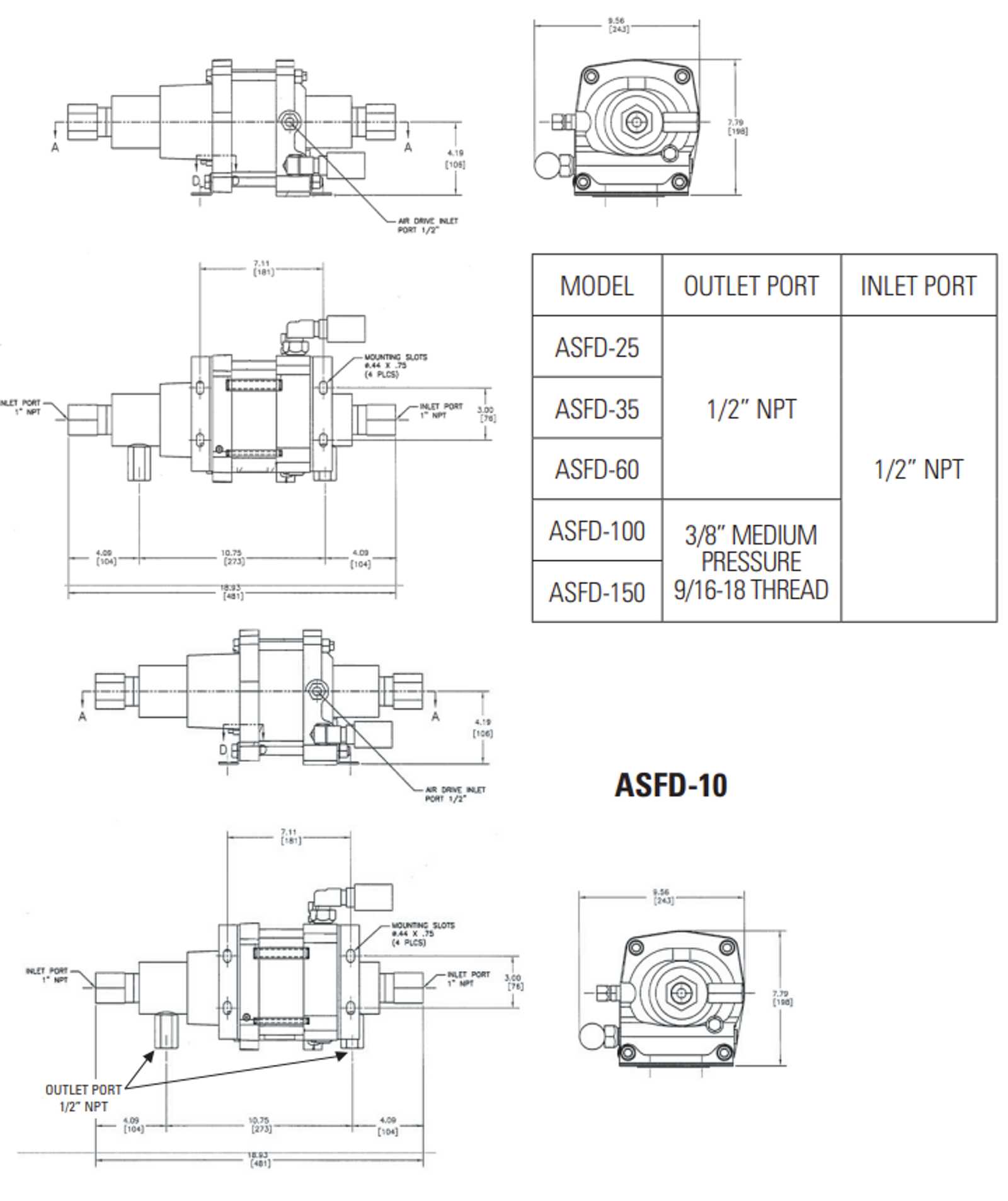

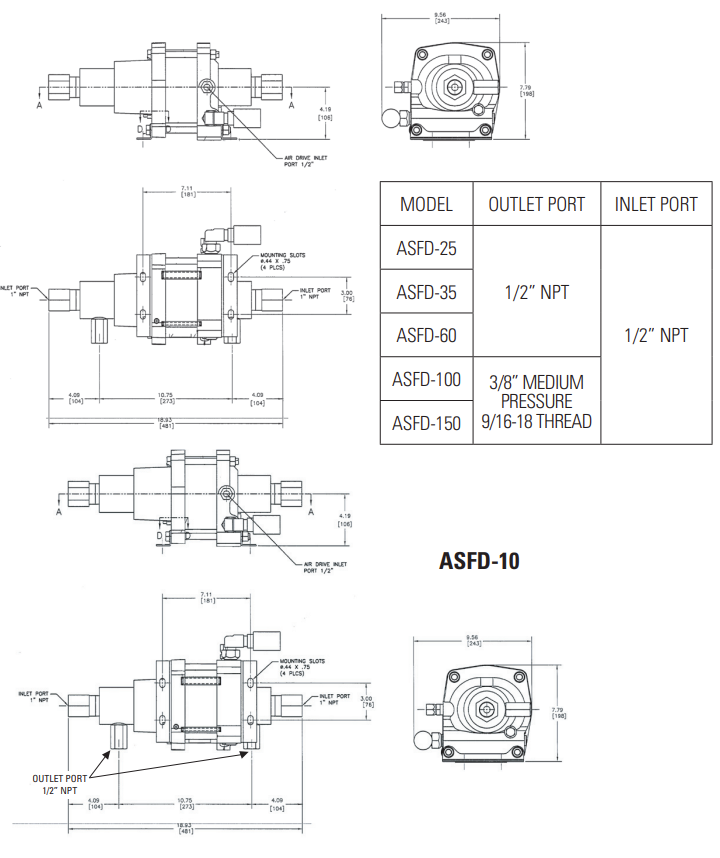

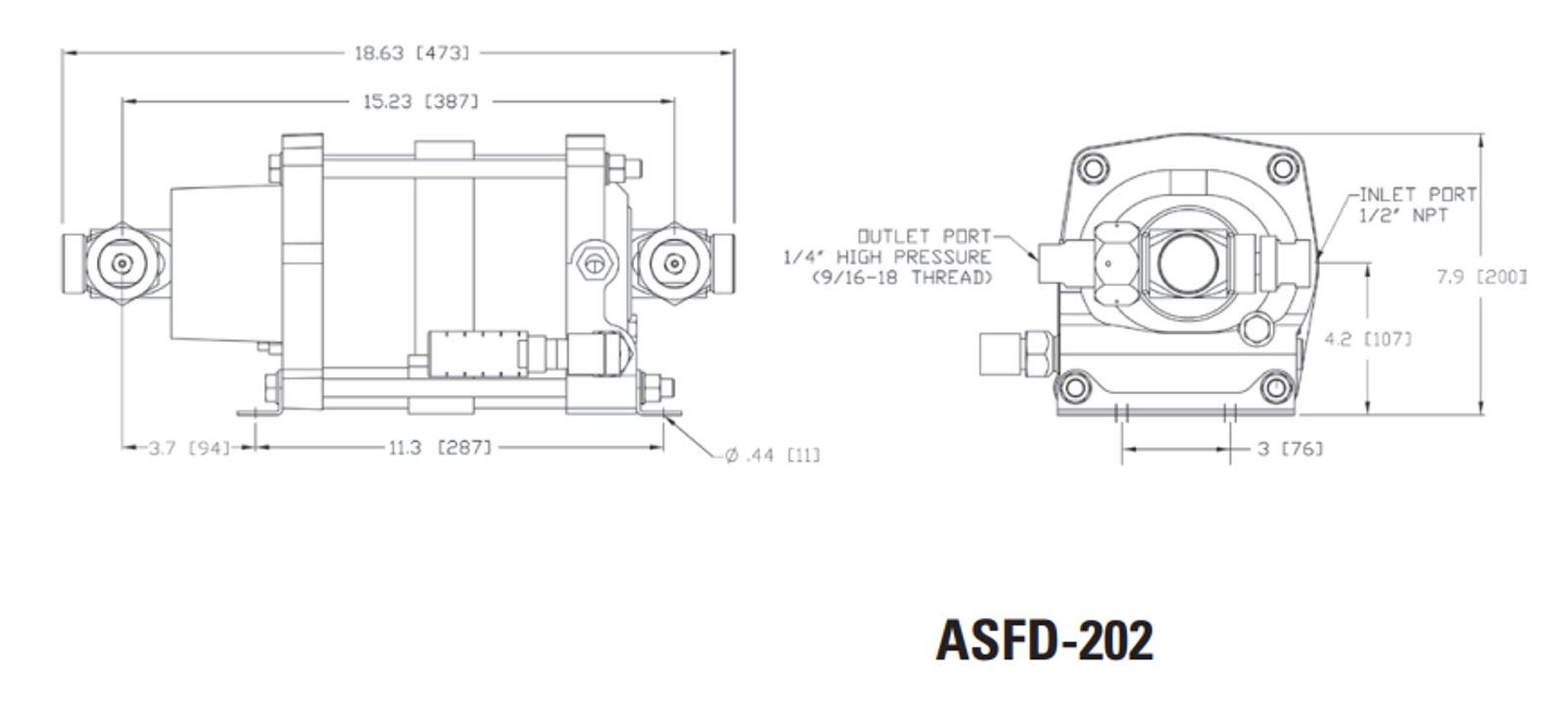

Max Air |
Air Head |
Power | Pump Model Code | Ratio Dash no. | Actual Area Ratio | Maximum Rated Output Pressure | Displacement/Cycle | Maximum Flow | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Continuous | Intermittent | ||||||||||||
psi | bar | psi | bar | cu in | ml | cu in/min | l/min | ||||||
150 psi/10.5 bar |
Single |
2 hp | ASFD | -10 -15 -25 -35 -60 -100 -150 -202 | 11.5 17 29 40 69 115 173 230 | 1600 2400 4000 5700 9800 15000 15000 30000 | 110 165 276 393 676 1034 1034 2069 | 1600 2400 4000 5700 9800 16500 20000 33000 | 110 165 276 393 676 1138 1379 2276 | 8.10 5.40 3.24 2.32 1.34 0.82 0.54 0.82 | 133 89 53.6 38.0 22.0 13.4 9.0 13.4 | 1823 1215 729 522 302 185 122 144 | 29.9 19.9 11.9 8.6 4.9 3.0 2.0 2.4 |
2 thru 3hp
|
MODEL |
WETTED MATERIALS |
NON METALLICS | |
|---|---|---|---|
|
PUMP SECTION |
PLUNGERS | ||
| AW | Nickel Plated Steel & SS | 440C SS | Urethane, Buna N, PTFE |
| AFD | Nickel Plated Steel & SS | 416 SS | UHMWPE, Buna, PTFE, Ryton |
| DFD | Nickel Plated Steel & SS | 416 SS | UHMWPE, Viton, PTFE, Rtyon |
| ASFD | All SS | 15.5PH SS | UHMWPE, Viton, PTFE, Rtyon |
| ASF | All SS | 440C SS | UHMWPE, Viton, PTFE, Rtyon |
| DSFD | Separation - All SS | 15.5PH SS | UHMWPE, Viton, PTFE, Rtyon |
| DSF | Separation - All SS | 440C SS Hard chrome plated | UHMWPE, Viton, PTFE, Rtyon |
| HF | Nickel Plated Steel & SS | Stellite 15-5PH SS* | UHMWPE, Buna N |
| HSF | All SS | Stellite 15-5PH SS* | UHMWPE, Buna N |
| DSHF | Separation - All SS | Stellite 15-5PH SS* | UHMWPE, Buna N |
| DSXHF | Separation - All SS | Stellite 15-5PH SS | UHMWPE, Buna N |
| DSXHW | Separation - All SS | Stellite 15-5PH SS | Urethane, PTFE |
| DSTV-1.5 | Separation - All SS | 17.4PH SS | PTFE, Viton |
| DSTV | Separation - All SS | 440C SS Hard chrome plated | PTFE, Viton |
*Except -202 ratio is chrome plated 440 SS
Configure seal kits or search parts in seconds
To assist in easier pump selection, we have classified various popular liquids in groups and assigned to each group a service code. These service code numbers are featured in the chart to the right and are designated for each pump series. Seals and other wetted materials can be supplied to suit your preferred liquid. For advice, please contact our technical services personnel at 818-843-4000.

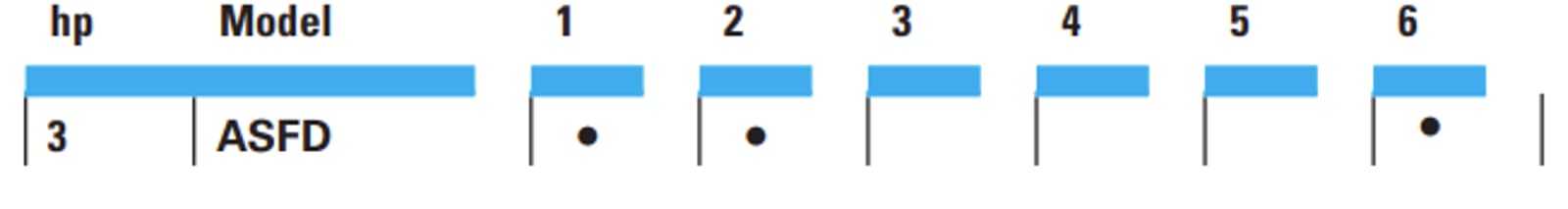

Service Codes
