Low Pressure Check Valves

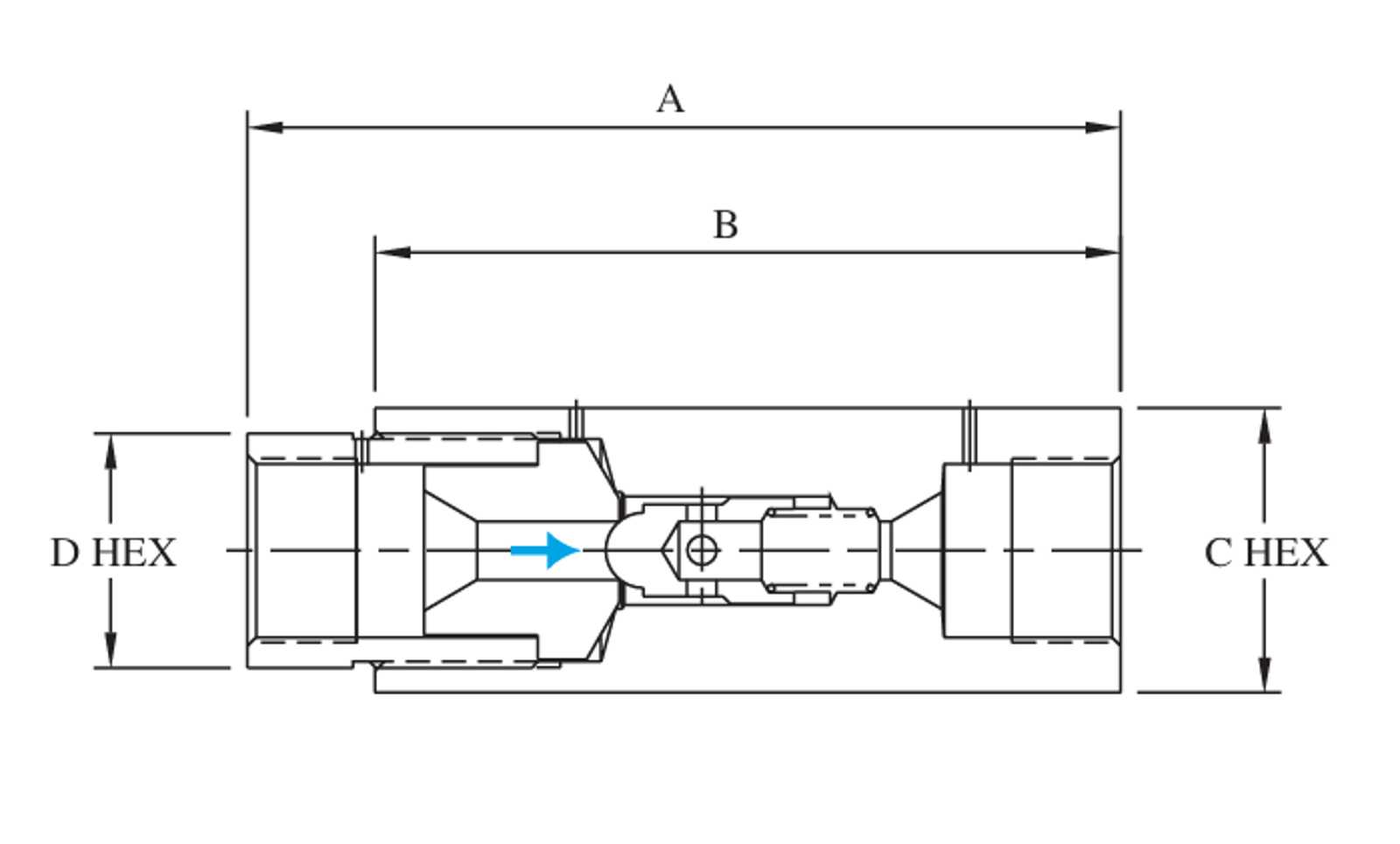

BuTech ball check valves prevent reverse flow where leak-tight shutoff is not necessary. Standard materials of construction are 316 stainless steel with 17-4PH poppet for longer life, and 300 series stainless steel spring. BuTech offers both a Ball Check and Soft Seat check valve variation.

Note: For 316 stainless steel wetted parts, add -316WP to the catalog number.

Cracking pressure: 15 PSI (1 bar) approximate

Operating Temperature Range: 0 to 650 F (-18° to +343°C)

Download Catalog

Configuration Tool

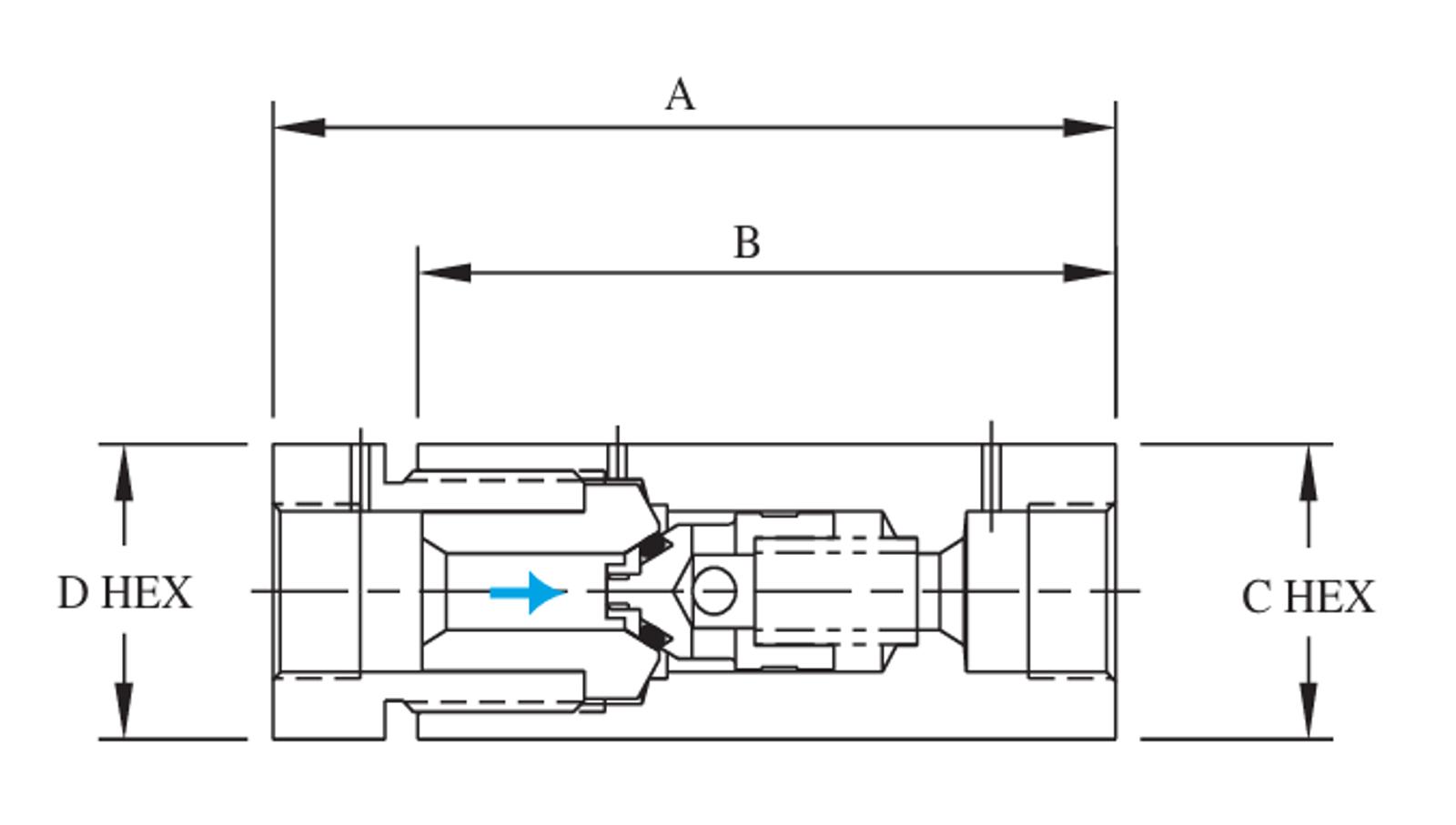

BuTech o-ring check valves reliably prevent backflow where leak-tight shutoff for liquids or gases is required. Standard materials of construction are 316 stainless steel with Buna-N o-ring and 300 series stainless steel spring.

Cracking pressure: 15 PSI (1 bar) approximate.

Operating Temperature Ranges:

O-ring Material	Operating Temperature Range	Catalog Suffix
Buna-N	-65˚ to +250˚F (-54˚ to +121˚C)	----
Viton	-40˚ to +500˚F (-40˚ to +260˚C)	-VA
PTFE	-320˚ to +400˚F (-195˚ to +204˚C)	-TFE
Kalrez	-20˚ to +550˚F (-29˚ to +288˚C)	-HT

Repair Kit Selector Part Number Search

Catalog Number	Connection	MAWP	Cv	A	B	C	D
LPBC2	1/8" L/P Tube	15,000 PSI 1030 bar	0.15	2.38" (60.5)	1.88" (47.8)	0.50" (12.7)	0.62" (15.7)
LPBC4	1/4" SL/P Tube	11,500 PSI 790 bar	0.63	3.24" (82.3)	2.62" (66.5)	0.75" (19.1)	0.81" (20.6)
LPBC6	3/8" SL/P Tube	7,500 PSI 520 bar	1.70	4.44" (112.8)	3.50" (88.9)	1.38" (35.1)	1.38" (35.1)
LPBC8	1/2" L/P Tube	5,500 PSI 380 bar	3.40	4.67" (118.6)	3.50" (88.9)	1.38" (35.1)	1.38" (35.1)

To order a valve with a cracking pressure other than the standard 15 PSI, add the cracking pressure to the end of the catalog number. Example: A LPBC8 with 50 PSI cracking pressure would be ordered as LPBC8-50.

Cracking pressures available up to 100 PSI (7 bar).

Configure Repair kits or search parts in seconds

Repair Kit Selector Part Number Search

Catalog Number	Connection	MAWP	Cv	A	B	C	D
LPSC2	1/8" L/P Tube	15,000 PSI 1030 bar	0.15	2.38" (60.5)	1.88" (47.8)	0.50" (12.7)	0.62" (15.7)
LPSC4	1/4" SL/P Tube	11,500 PSI 790 bar	0.63	3.31" (84.1)	2.62" (66.5)	0.75" (19.1)	0.81" (20.6)
LPSC6	3/8" SL/P Tube	7,500 PSI 520 bar	1.70	4.44" (112.8)	3.50" (88.9)	1.38" (35.1)	1.38" (35.1)
LPSC8	1/2" L/P Tube	5,500 PSI 380 bar	3.40	4.67" (118.6)	3.50" (88.9)	1.38" (35.1)	1.38" (35.1)

To order a valve with a cracking pressure other than the standard 15 PSI, add the cracking pressure to the end of the catalog number. Example: A LPSC4 with 40 PSI cracking pressure would be ordered as LPSC4-40.

Cracking pressures available up to 100 PSI (7 bar).

Configure Repair kits or search parts in seconds

Repair Kit Selector Part Number Search

BuTech - Low Pressure Valves, Fitting and Tubing

Access the data sheet, installation manual or other technical documents you need by using our Technical Resources Finder. Simply apply the filters or type your query into the search field to locate the right document.

Search Technical Documents

Resources & Product Selectors Document Library Find a Sales Rep

Low Pressure Check Valves

Overview

Ball Check Valves

O-ring Check Valves

Downloads

BuTech - Low Pressure Valves, Fitting and Tubing

Medium Pressure Check Valves

High Pressure Check Valves

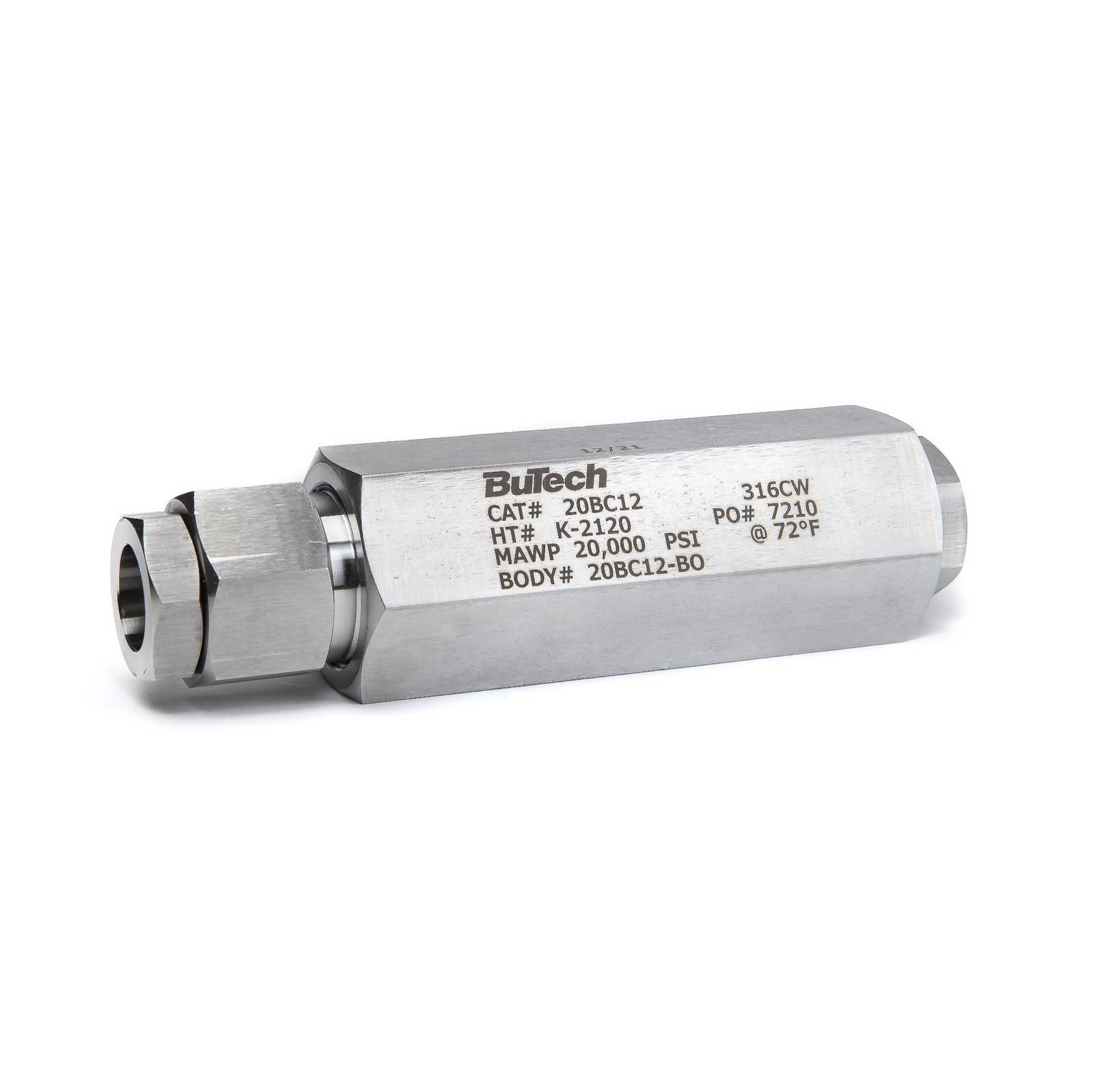

Subsea Check Valve
