Butech Ball Valves for Industrial Applications

- Pressures to 20,000 PSI (1380 bar) at 72°F (22°C)

- Pressure loaded seats assure positive sealing

- Blowout-proof stem and ball provides maximum safety

- Choice of replaceable connections for installation versatility

- Straight-through flow path minimizes pressure drop

- Quarter-turn operation accommodates quick open and close needs

- Flow indicating handle indicates valve position at a glance

- Bi-directional flow capabilities

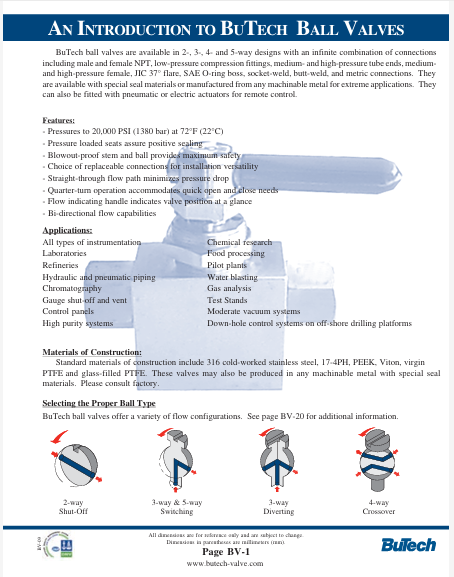

Download Catalog

BuTech ball valves are available in 2-, 3-, 4- and 5-way designs with an infinite combination of connections including male and female NPT, low-pressure compression fittings, medium- and high-pressure tube ends, medium and high-pressure female, JIC 37° flare, SAE O-ring boss, socket-weld, butt-weld, and metric connections. They are available with special seal materials or manufactured from any machinable metal for extreme applications. They can also be fitted with pneumatic or electric actuators for remote control.

Applications:

All types of instrumentation
Laboratories
Refineries
Hydraulic and pneumatic piping
Chromatography
Gauge shut-off and vent
Control panels
High purity systems
Chemical research
Food processing
Pilot plants
Water blasting
Gas analysis
Test Stands
Moderate vacuum systems
Down-hole control systems on off-shore drilling platforms

Materials of Construction:

Standard materials of construction include 316 cold-worked stainless steel, 17-4PH, PEEK, Viton, virgin PTFE and glass-filled PTFE. These valves may also be produced in any machinable metal with special seal materials. Please consult factory.

*For all pressure configurations, please download the catalog.

	Model No.	Maximum Pressure*		Port		Cv	Page
2-way Valves for On-Off Service	K34	3,000 PSI	210 bar	0.250"	(6.4)	1.40	BV-4
	K316	3,000 PSI	210 bar	1.000"	(25.4)	36.00	BV-5
	K63	6,000 PSI	410 bar	0.187"	(4.7)	0.75	BV-6
	K103	10,000 PSI	690 bar	0.187"	(4.7)	0.75	BV-8
	K104	10,000 PSI	690 bar	0.250"	(6.4)	1.40	BV-10
	K106	10,000 PSI	690 bar	0.375"	(9.5)	3.40	BV-12
	KOS108	10,000 PSI	690 bar	0.500"	(12.7)	10.00	BV-14
	KW204	20,000 PSI	1380 bar	0.250"	(6.4)	1.40	BV-16
	KW206	20,000 PSI	1380 bar	0.375"	(9.5)	3.40	BV-18

	Model No.	Maximum Pressure*		Port		Cv	Page
3-way Valves for Switching Service	3K34	3,000 PSI	210 bar	0.250"	(6.4)	1.00	BV-21
	3K63	6,000 PSI	410 bar	0.187"	(4.7)	0.56	BV-22
	3K93	10,000 PSI	690 bar	0.187"	(4.7)	0.56	BV-24
	3K106	10,000 PSI	690 bar	0.375"	(9.5)	2.40	BV-26
	3KOS108	10,000 PSI	690 bar	0.500"	(12.7)	5.00	BV-28
	3K123	12,000 PSI	830 bar	0.187"	(4.7)	0.56	BV-30
	3K203	20,000 PSI	1380 bar	0.187"	(4.7)	0.56	BV-32
	3K206	20,000 PSI	1380 bar	0.375"	(9.5)	2.40	BV-34

	Model No.	Maximum Pressure*		Port		Cv	Page
3-way Valves for Diverting Service	3DVK34	3,000 PSI	210 bar	0.250"	(6.4)	1.00	BV-21
	3DVK63	6,000 PSI	410 bar	0.187"	(4.7)	0.56	BV-22
	3DVK93	10,000 PSI	690 bar	0.187"	(4.7)	0.56	BV-24
	3DVK106	10,000 PSI	690 bar	0.375"	(9.5)	2.40	BV-26
	3DVKOS108	10,000 PSI	690 bar	0.500"	(12.7)	5.00	BV-28
	3DVK123	12,000 PSI	830 bar	0.187"	(4.7)	0.56	BV-30
	3DVK203	20,000 PSI	1380 bar	0.187"	(4.7)	0.56	BV-32
	3DVK206	20,000 PSI	1380 bar	0.375"	(9.5)	2.40	BV-34

	Model No.	Maximum Pressure*		Port		Cv	Page
4-way & 5-way Valves	4K103	10,000 PSI	690 bar	0.187"	(4.7)	0.56	BV-36
	5K103	10,000 PSI	690 bar	0.187"	(4.7)	0.56	BV-40
	4K106	10,000 PSI	690 bar	0.375"	(9.5)	2.40	BV-38
	5K106	10,000 PSI	690 bar	0.375"	(9.5)	2.40	BV-42

NOTE: Standard operating temperature range is -20 to 400° F (-28 to 204°C). For applications requiring higher temperatures, select the -HT option shown on page BV-2.

Configure seal kits or search parts in seconds

Repair Kit Selector Part Number Search

*MAWP: 3,000 PSI (210 bar)

Port: 0.250" (6.4 mm)

Cv: 1.40

Materials of Construction:

-316 cold-worked stainless steel body and side adapters

-316 cold-worked stem

-PEEK ball seals

-Glass-filled PTFE stem packings

-Viton O-rings

Repair Kit P/N RK-K34 contains ball, ball seals and seal retainers, o-rings, pins, stem, stem packings, and washers

Mounting:

Panel: 0.78" (19.8 mm) dia
0.37" (9.4 mm) max thickness

Non-shaded items in-stock and available Shaded items manufactured to order

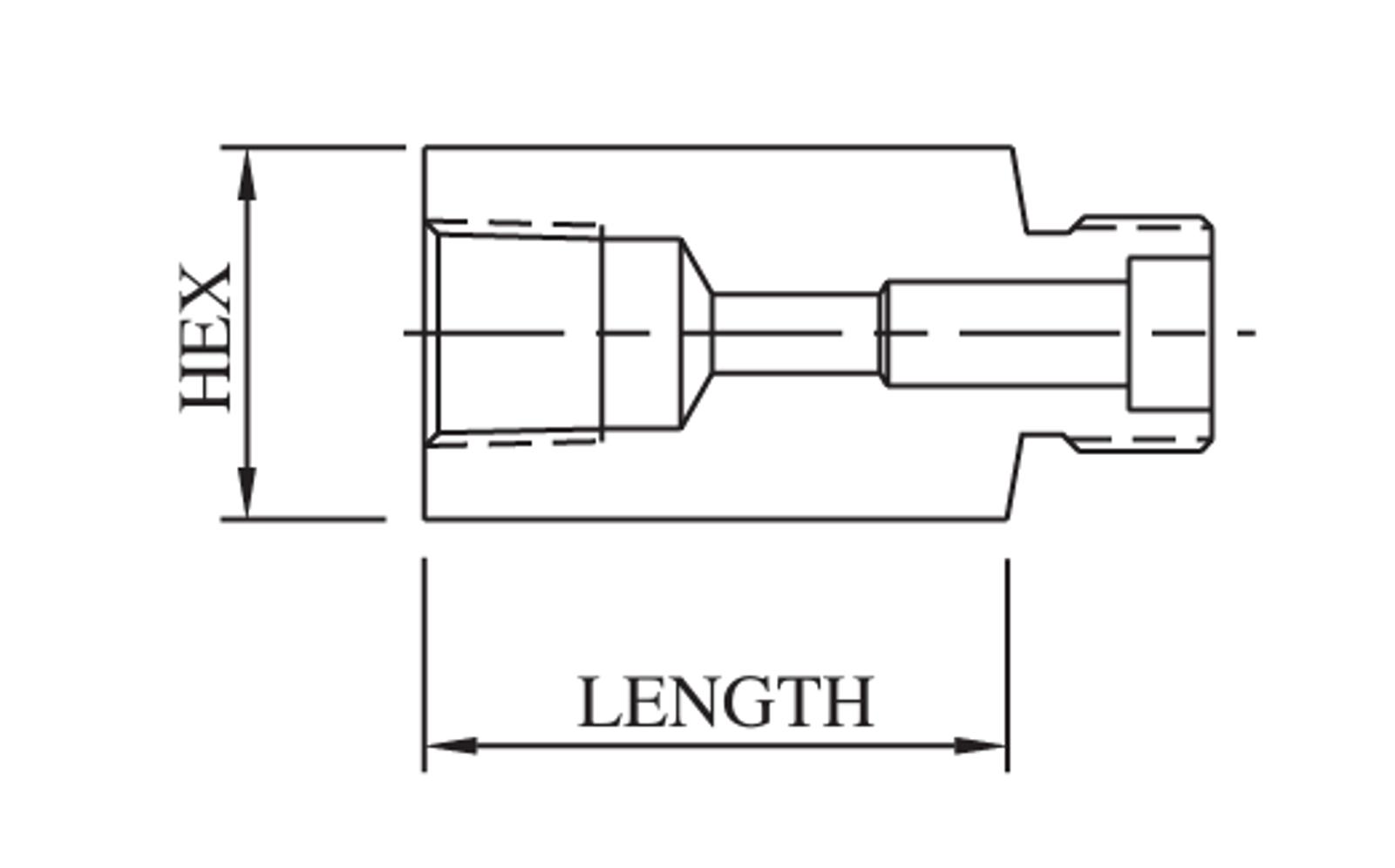

FEMALE PIPE

Connection	Suffix	Hex	Length	Port	MAWP*
1/8" FNPT	19	0.75" (19.1)	0.58" (14.7)	0.250" (6.4)	15,000 PSI 1030 bar
1/4" FNPT	20	0.75" (19.1)	0.58" (14.7)	0.250" (6.4)	15,000 PSI 1030 bar
3/8" FNPT	21	1.00" (25.4)	0.75" (19.1)	0.250" (6.4)	15,000 PSI 1030 bar
1/2" FNPT	22	1.18" (30.0)	1.00" (25.4)	0.250" (6.4)	15,000 PSI 1030 bar

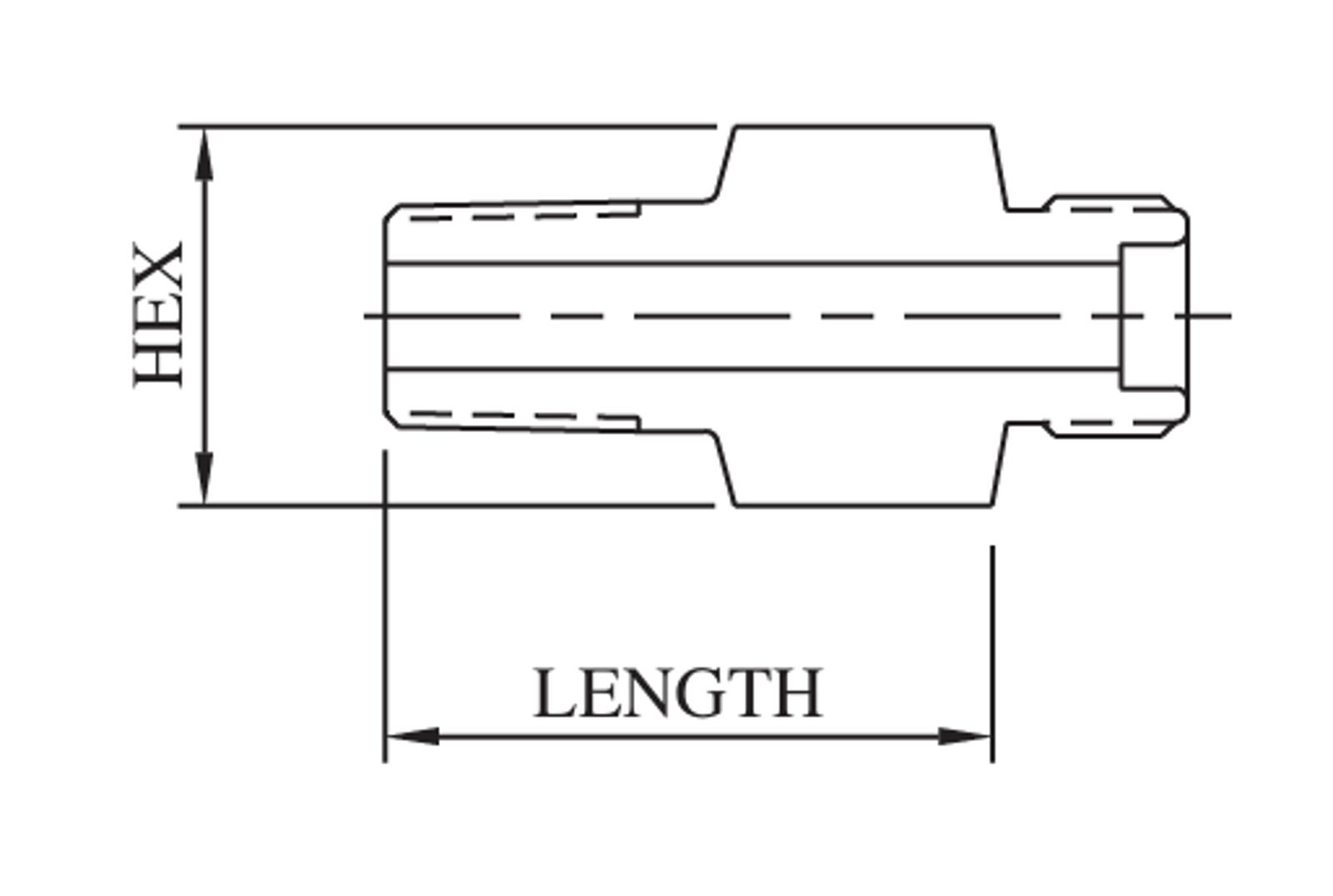

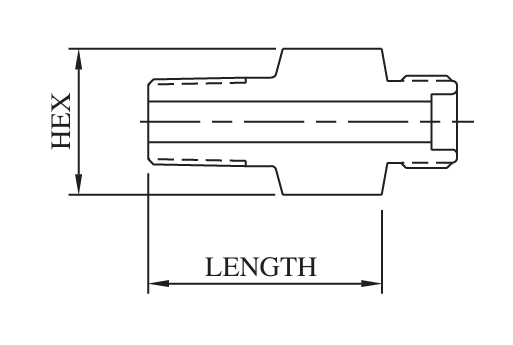

MALE PIPE

Connection	Suffix	Hex	Length	Port	MAWP*
1/8" MNPT	4	0.75" (19.1)	0.97" (24.6)	0.250" (6.4)	15,000 PSI 1030 bar
1/4" MNPT	5	0.75" (19.1)	1.19" (30.2)	0.250" (6.4)	15,000 PSI 1030 bar
3/8" MNPT	6	1.00" (25.4)	1.30" (33.0)	0.250" (6.4)	15,000 PSI 1030 bar
1/2" MNPT	7	1.00" (25.4)	1.55" (39.4)	0.250" (6.4)	15,000 PSI 1030 bar

Configure seal kits or search parts in seconds

Repair Kit Selector Part Number Search

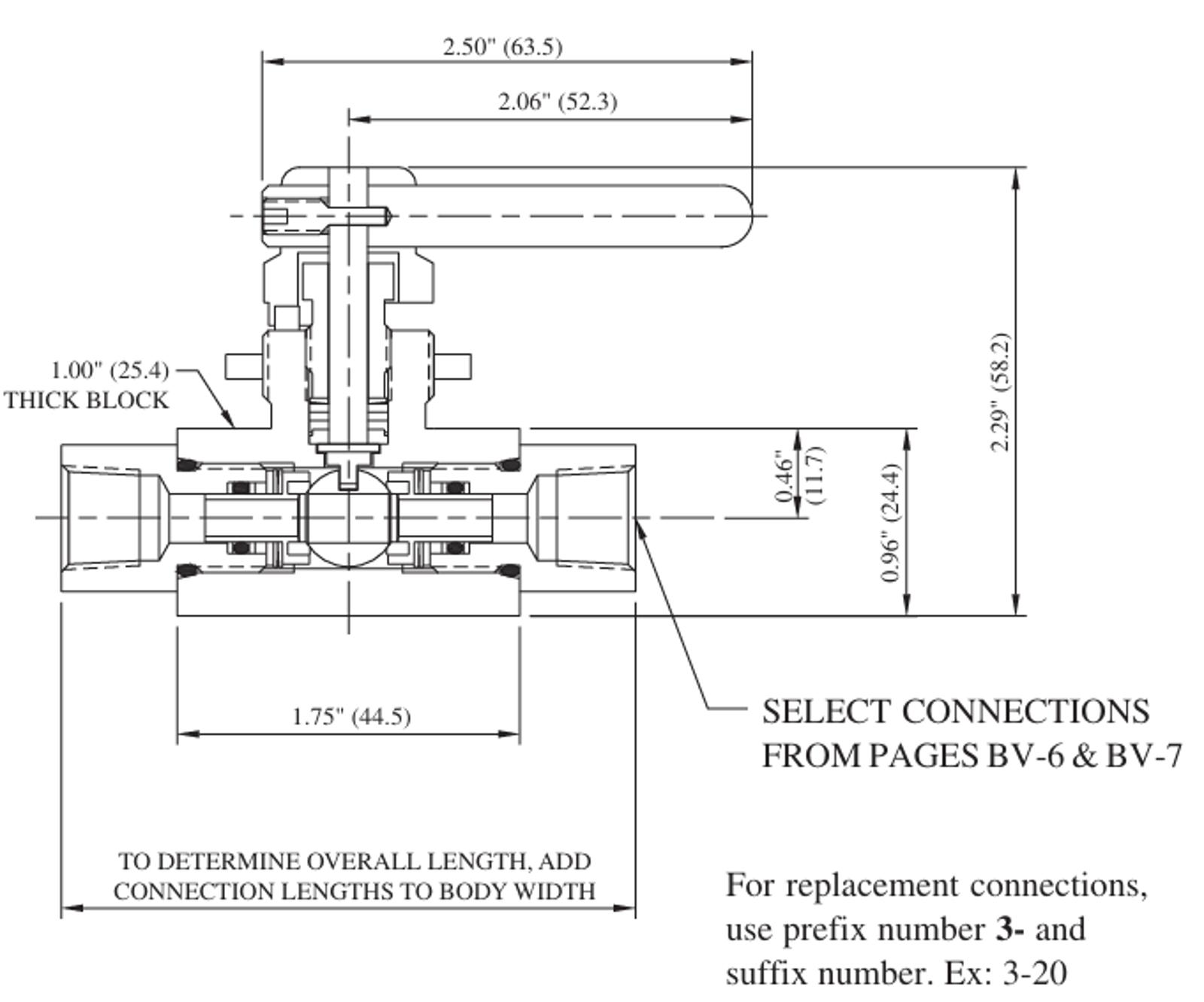

Model No. K63

*MAWP: 6,000 PSI (410 bar)

Port: 0.187" (4.7 mm)

Cv: 0.75

Materials of Construction:

-316 cold-worked stainless steel body and side adapters

-316 cold-worked stem

-PEEK ball seals

-Glass-filled PTFE stem packings

-Viton O-rings

Repair Kit P/N RK-K63 contains ball, ball seals and seal retainers, o-rings, spring washers, stem, stem packings, and washers

Mounting:

Panel: 0.91" (23.0 mm) dia
0.31" (7.8 mm) max thickness

Non-shaded items in-stock and available Shaded items manufactured to order

FEMALE PIPE

Connection	Suffix	Hex	Length	Port	MAWP*
1/8" FNPT	19	0.75" (19.1)	0.60" (15.2)	0.250" (6.4)	15,000 PSI 1030 bar
1/4" FNPT	20	0.75" (19.1)	0.60" (15.2)	0.250" (6.4)	15,000 PSI 1030 bar
3/8" FNPT	21	1.00" (25.4)	1.01" (25.7)	0.250" (6.4)	15,000 PSI 1030 bar
1/2" FNPT	22	1.00" (25.4)	1.01" (25.7)	0.250" (6.4)	15,000 PSI 1030 bar

MALE PIPE

Connection	Suffix	Hex	Length	Port	MAWP*
1/8" MNPT	4	0.75" (19.1)	1.01" (25.7)	0.125" (3.2)	15,000 PSI 1030 bar
1/4" MNPT	5	0.75" (19.1)	1.01" (25.7)	0.250" (6.4)	15,000 PSI 1030 bar
3/8" MNPT	6	0.75" (19.1)	1.01" (25.7)	0.250" (6.4)	15,000 PSI 1030 bar
1/2" MNPT	7	1.00" (25.4)	1.26" (32.0)	0.250" (6.4)	15,000 PSI 1030 bar

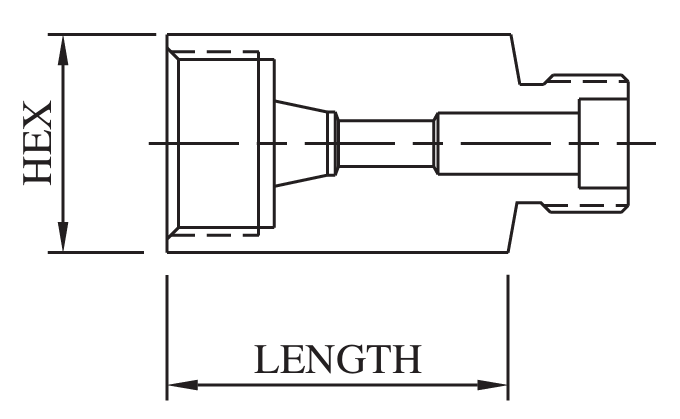

FEMALE SINGLE-FERRULE TUBE

Connection	Suffix	Hex	Length	Port	MAWP*
1/8" L/P	12	0.75" (19.1)	0.78" (19.8)	0.093" (2.4)	15,000 PSI 1030 bar
1/4" SL/P	13	0.75" (19.1)	1.03" (26.2)	0.125" (3.2)	11,500 PSI 790 bar
3/8" SL/P	14	0.75" (19.1)	1.03" (26.2)	0.250" (6.4)	7,500 PSI 520 bar
1/2" L/P	15	1.00" (25.4)	1.03" (26.2)	0.250" (6.4)	5,500 PSI 380 bar

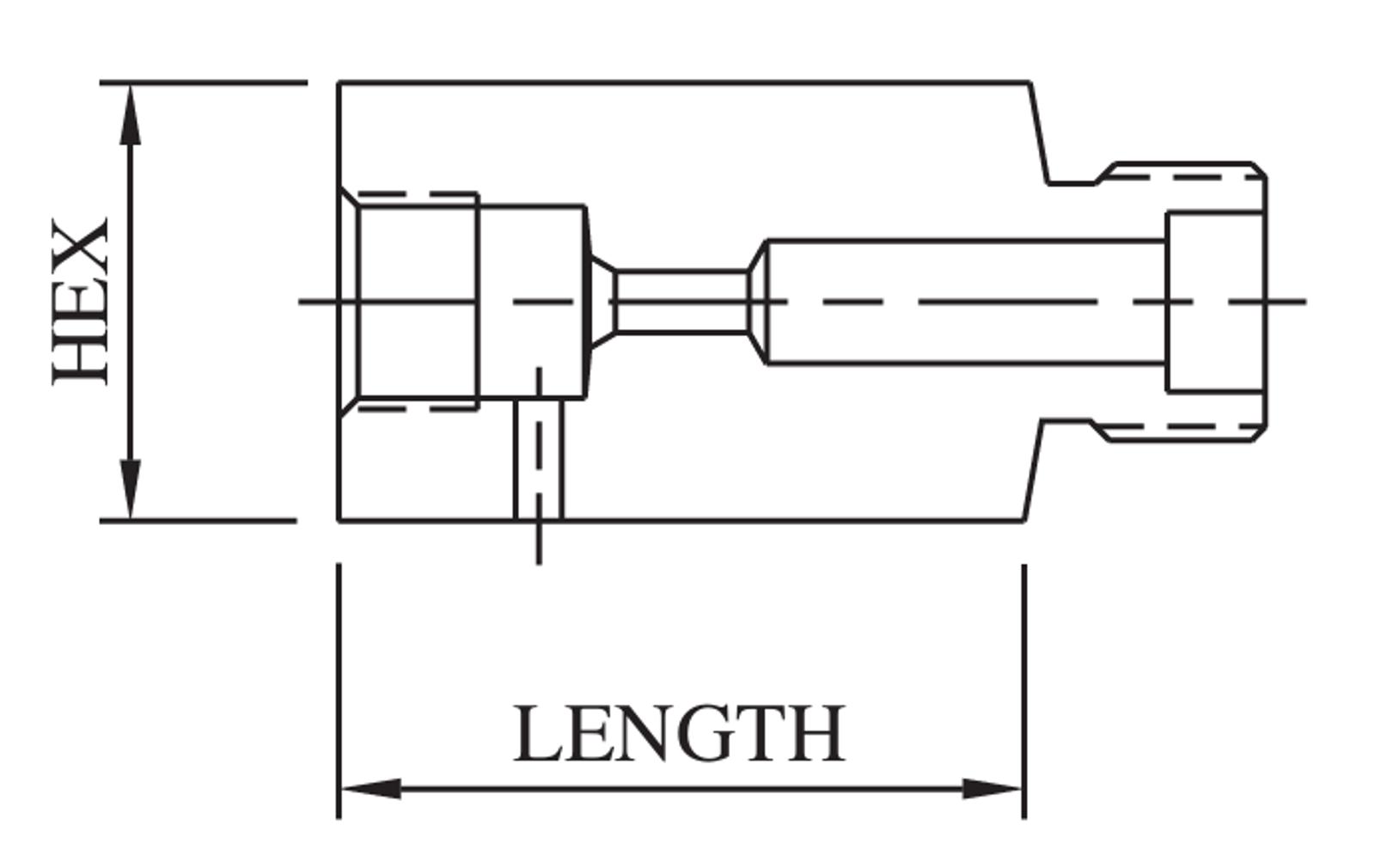

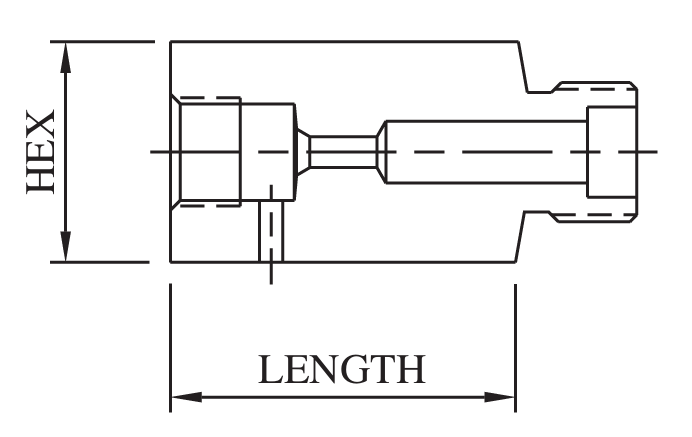

FEMALE M/P CONED AND THREADED TUBE

Connection	Suffix	Hex	Length	Port	MAWP*
1/4" M/P	16	0.75" (19.1)	0.74" (18.8)	0.109" (2.8)	20,000 PSI 1380 bar
3/8" M/P	17	0.75" (19.1)	1.01" (25.7)	0.203" (5.2)	20,000 PSI 1380 bar
9/16" M/P	18	1.00" (25.4)	1.26" (32.0)	0.250" (6.4)	20,000 PSI 1380 bar

MALE M/P CONED AND THREADED TUBE

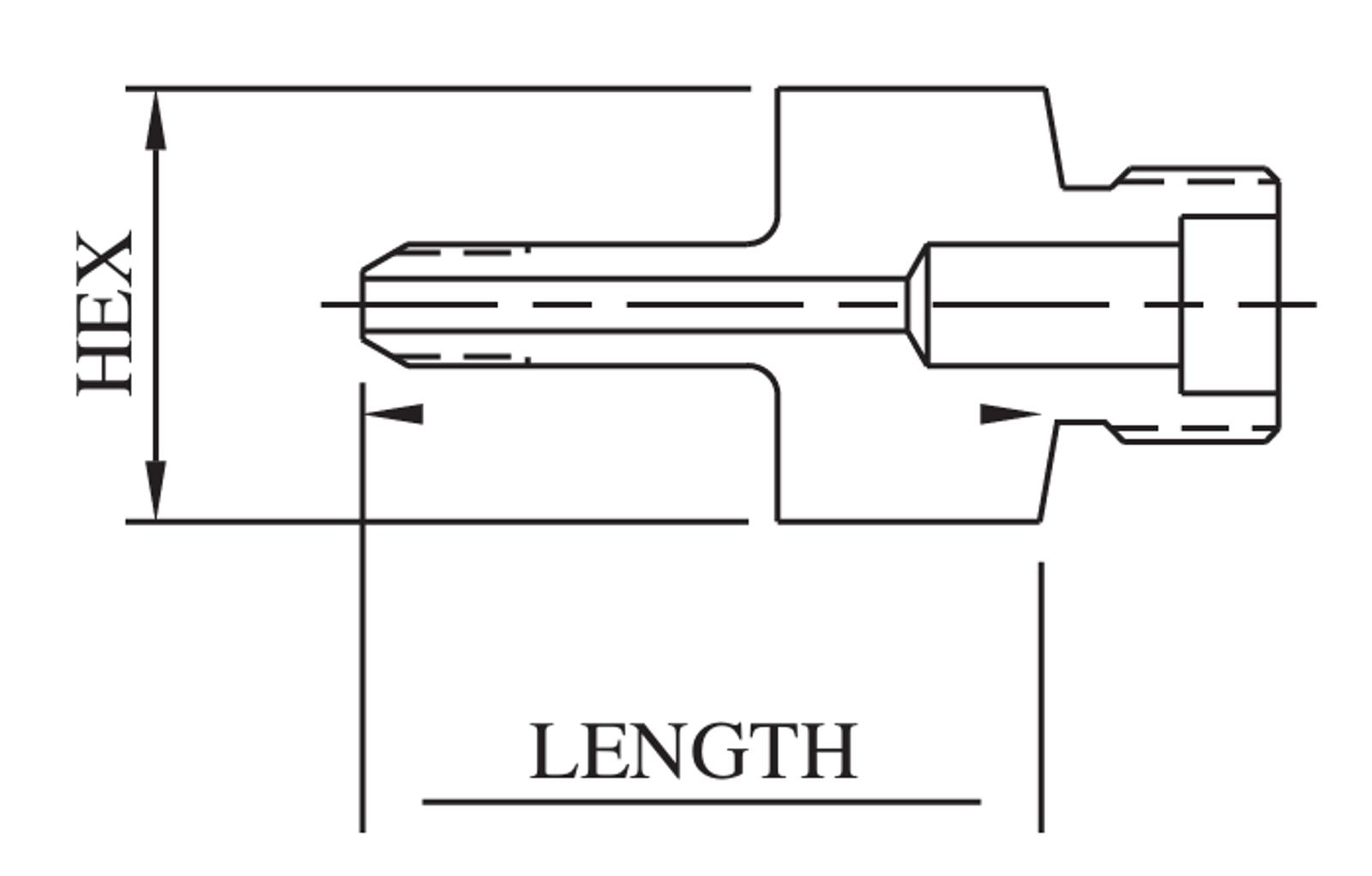

Connection	Suffix	Hex	Length	Port	MAWP*
1/4" M/P	8	0.75" (19.1)	1.88" (47.8)	0.109" (2.8)	20,000 PSI 1380 bar
3/8" M/P	10	0.75" (19.1)	2.00" (50.8)	0.203" (5.2)	20,000 PSI 1380 bar
9/16" M/P	11	1.00" (25.4)	2.31" (58.7)	0.250" (6.4)	20,000 PSI 1380 bar

Configure seal kits or search parts in seconds

Repair Kit Selector Part Number Search

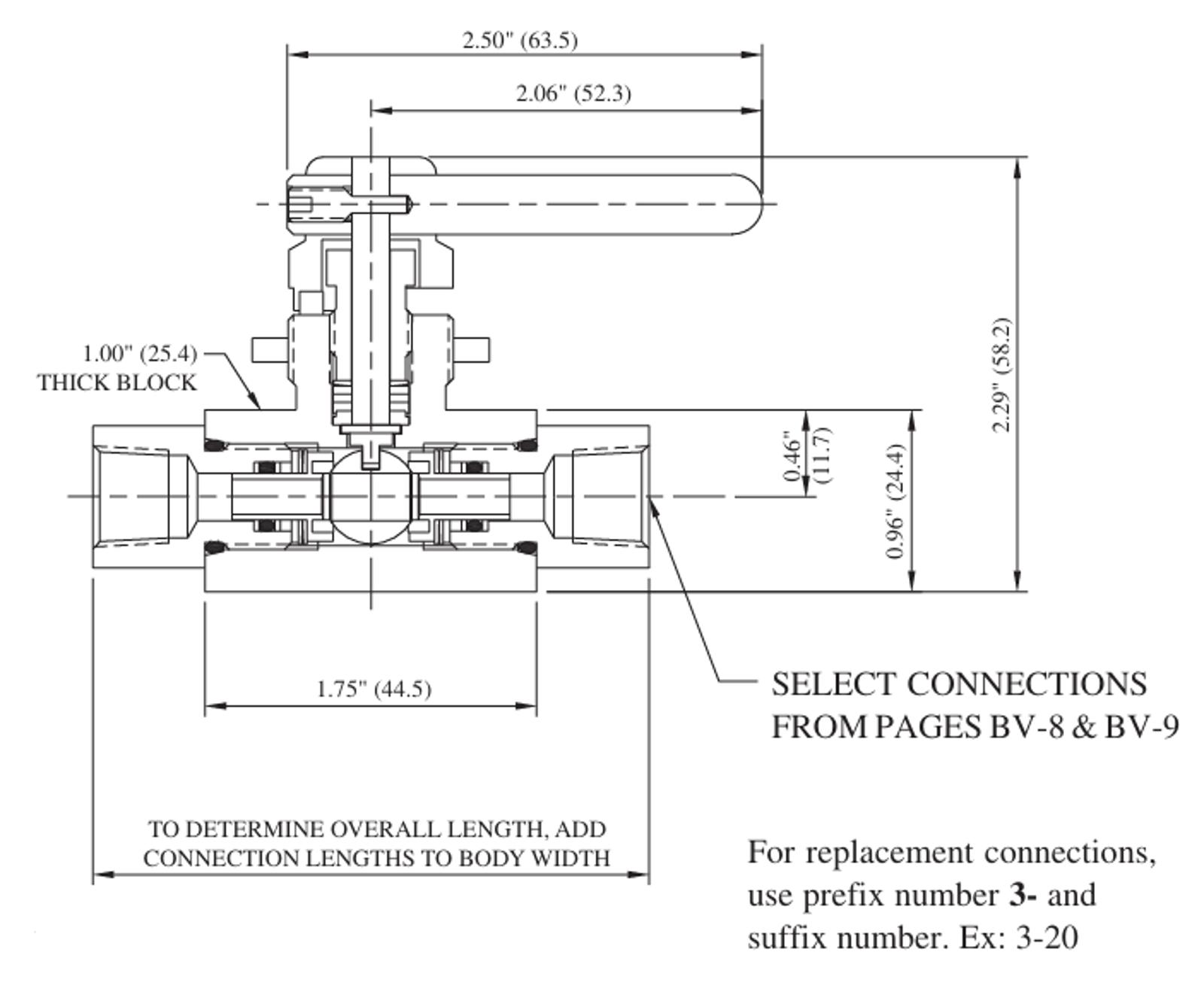

Model No. K103

*MAWP: 10,000 PSI (690 bar)

Port: 0.187" (4.7 mm)

Cv: 0.75

Materials of Construction:

-316 cold-worked stainless steel body and side adapters

-316 cold-worked stem

-PEEK ball seals

-Glass-filled PTFE stem packings

-Viton O-rings

Repair Kit P/N RK-K63 contains ball, ball seals and seal retainers, o-rings, spring washers, stem, stem packings, and washers

Mounting:

Panel: 0.91" (23.0 mm) dia
0.31" (7.8 mm) max thickness

Non-shaded items in-stock and available Shaded items manufactured to order

FEMALE PIPE

Connection	Suffix	Hex	Length	Port	MAWP*
1/8" FNPT	19	0.75" (19.1)	0.60" (15.2)	0.250" (6.4)	15,000 PSI 1030 bar
1/4" FNPT	20	0.75" (19.1)	0.60" (15.2)	0.250" (6.4)	15,000 PSI 1030 bar
3/8" FNPT	21	1.00" (25.4)	1.01" (25.7)	0.250" (6.4)	15,000 PSI 1030 bar
1/2" FNPT	22	1.00" (25.4)	1.01" (25.7)	0.250" (6.4)	15,000 PSI 1030 bar

MALE PIPE

Connection	Suffix	Hex	Length	Port	MAWP*
1/8" MNPT	4	0.75" (19.1)	1.01" (25.7)	0.125" (3.2)	15,000 PSI 1030 bar
1/4" MNPT	5	0.75" (19.1)	1.01" (25.7)	0.250" (6.4)	15,000 PSI 1030 bar
3/8" MNPT	6	0.75" (19.1)	1.01" (25.7)	0.250" (6.4)	15,000 PSI 1030 bar
1/2" MNPT	7	1.00" (25.4)	1.26" (32.0)	0.250" (6.4)	15,000 PSI 1030 bar

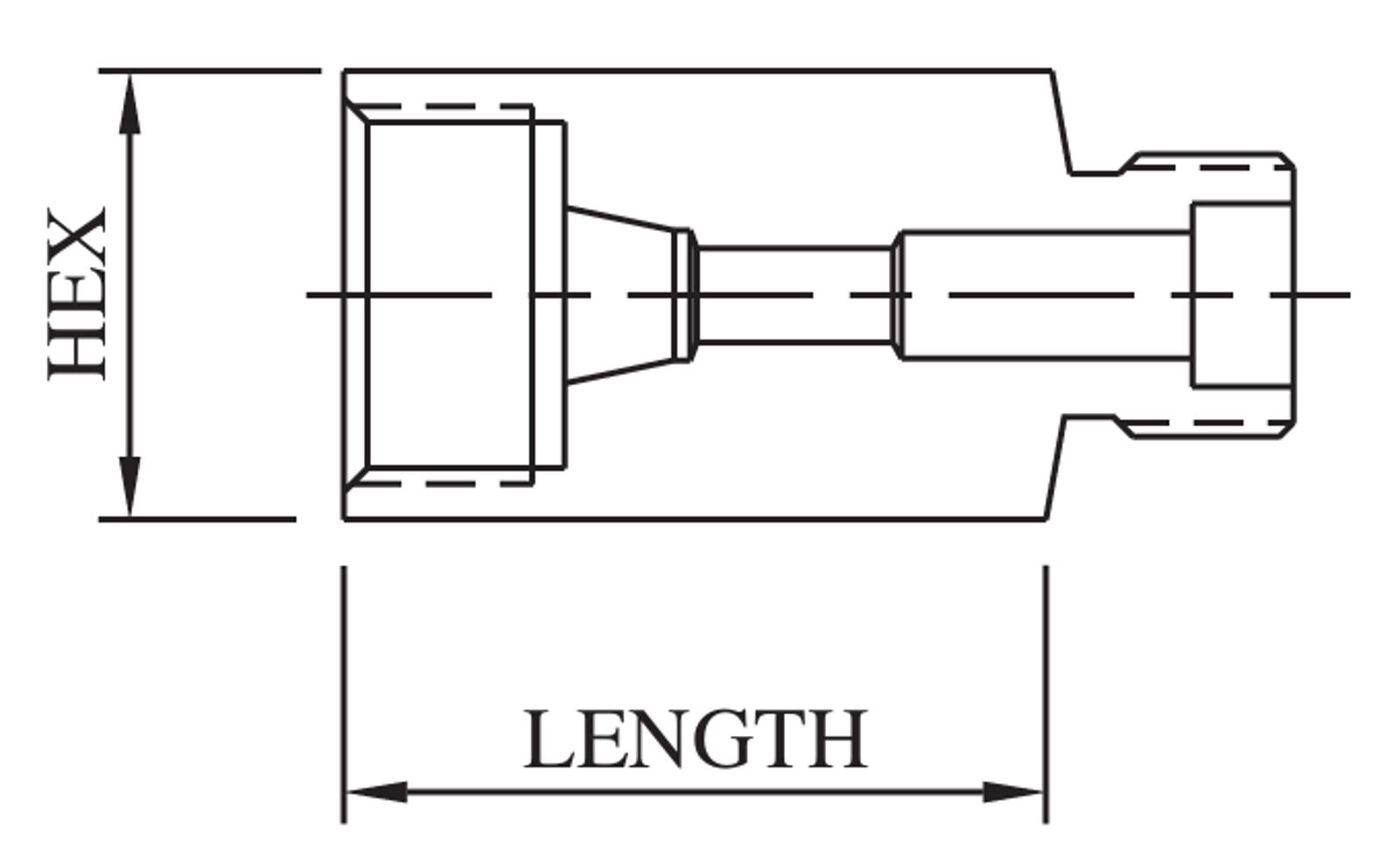

FEMALE SINGLE-FERRULE TUBE

Connection	Suffix	Hex	Length	Port	MAWP*
1/8" L/P	12	0.75" (19.1)	0.78" (19.8)	0.093" (2.4)	15,000 PSI 1030 bar
1/4" SL/P	13	0.75" (19.1)	1.03" (26.2)	0.125" (3.2)	11,500 PSI 790 bar
3/8" SL/P	14	0.75" (19.1)	1.03" (26.2)	0.250" (6.4)	7,500 PSI 520 bar
1/2" L/P	15	1.00" (25.4)	1.03" (26.2)	0.250" (6.4)	5,500 PSI 380 bar

FEMALE M/P CONED AND THREADED TUBE

Connection	Suffix	Hex	Length	Port	MAWP*
1/4" M/P	16	0.75" (19.1)	0.74" (18.8)	0.109" (2.8)	20,000 PSI 1380 bar
3/8" M/P	17	0.75" (19.1)	1.01" (25.7)	0.203" (5.2)	20,000 PSI 1380 bar
9/16" M/P	18	1.00" (25.4)	1.26" (32.0)	0.250" (6.4)	20,000 PSI 1380 bar

MALE M/P CONED AND THREADED TUBE

Connection	Suffix	Hex	Length	Port	MAWP*
1/4" M/P	8	0.75" (19.1)	1.88" (47.8)	0.109" (2.8)	20,000 PSI 1380 bar
3/8" M/P	10	0.75" (19.1)	2.00" (50.8)	0.203" (5.2)	20,000 PSI 1380 bar
9/16" M/P	11	1.00" (25.4)	2.31" (58.7)	0.250" (6.4)	20,000 PSI 1380 bar

FEMALE H/P CONED AND THREADED TUBE

Connection	Suffix	Hex	Length	Port	MAWP*
1/4" H/P	23	0.75" (19.1)	1.01" (25.7)	0.093" (2.4)	20,000 PSI 1380 bar
3/8" H/P	24	1.00" (25.4)	1.17" (29.7)	0.125" (3.2)	20,000 PSI 1380 bar
9/16" H/P	25	1.37" (34.8)	1.25" (31.8)	0.187" (4.7)	20,000 PSI 1380 bar

MALE H/P CONED AND THREADED TUBE

Connection	Suffix	Hex	Length	Port	MAWP*
1/4" H/P	9	0.75" (19.1)	1.94" (49.3)	0.083" (2.1)	20,000 PSI 1380 bar
3/8" H/P	30	0.75" (19.1)	2.25" (57.2)	0.125" (3.2)	20,000 PSI 1380 bar
9/16" H/P	42	0.75" (19.1)	2.82" (71.6)	0.187" (4.7)	20,000 PSI 1380 bar

Configure seal kits or search parts in seconds

Repair Kit Selector Part Number Search

Model No. KW204

*MAWP: 20,000 PSI (1380 bar)

Port: 0.250" (6.4 mm)

Cv: 1.40

Materials of Construction:

-316 cold-worked stainless steel body and side adapters

-17-4PH stem

-PEEK ball seals

-Glass-filled PTFE stem packings

-Viton O-rings

Repair Kit P/N RK-KW204 contains ball, ball seals and seal retainers, o-rings, stem, stem packings, and washers

Mounting:

Panel: 1.06" (26.9 mm) dia
0.43" (11.0 mm) max thickness

Top: 1/4"-20 UNC

Side: 0.28" (7.1 mm) dia

Non-shaded items in-stock and available Shaded items manufactured to order

FEMALE PIPE

Connection	Suffix	Hex	Length	Port	MAWP*
1/4" FNPT	20	0.75" (19.1)	1.03" (26.2)	0.250" (6.4)	15,000 PSI 1030 bar
3/8" FNPT	21	1.38" (35.1)	1.03" (26.2)	0.250" (6.4)	15,000 PSI 1030 bar
1/2" FNPT	22	1.38" (35.1)	1.16" (29.5)	0.250" (6.4)	15,000 PSI 1030 bar

MALE PIPE

Connection	Suffix	Hex	Length	Port	MAWP*
1/4" MNPT	5	0.75" (19.1)	1.03" (26.2)	0.250" (6.4)	15,000 PSI 1030 bar
3/8" MNPT	6	0.75" (19.1)	1.03" (26.2)	0.250" (6.4)	15,000 PSI 1030 bar
1/2" MNPT	7	1.00" (25.4)	1.29" (32.8)	0.250" (6.4)	15,000 PSI 1030 bar

FEMALE SINGLE-FERRULE TUBE

Connection	Suffix	Hex	Length	Port	MAWP*
1/4" SL/P	13	0.75" (19.1)	1.03" (26.2)	0.125" (3.2)	11,500 PSI 790 bar
3/8" SL/P	14	0.75" (19.1)	1.03" (26.2)	0.250" (6.4)	7,500 PSI 520 bar
1/2" L/P	15	1.00" (25.4)	1.03" (26.2)	0.250" (6.4)	5,500 PSI 380 bar

FEMALE M/P CONED AND THREADED TUBE

Connection	Suffix	Hex	Length	Port	MAWP*
1/4" M/P	16	0.75" (19.1)	1.03" (26.2)	0.109" (2.8)	20,000 PSI 1380 bar
3/8" M/P	17	0.75" (19.1)	1.03" (26.2)	0.203" (5.2)	20,000 PSI 1380 bar
9/16" M/P	18	1.00" (25.4)	1.29" (32.8)	0.250" (6.4)	20,000 PSI 1380 bar

MALE M/P CONED AND THREADED TUBE

Connection	Suffix	Hex	Length	Port	MAWP*
1/4" M/P	8	0.75" (19.1)	1.91" (48.5)	0.109" (2.8)	20,000 PSI 1380 bar
3/8" M/P	10	0.75" (19.1)	1.91" (48.5)	0.203" (5.2)	20,000 PSI 1380 bar
9/16" M/P	11	0.75" (19.1)	2.12" (53.8)	0.312" (7.9)	20,000 PSI 1380 bar

FEMALE H/P CONED AND THREADED TUBE

Connection	Suffix	Hex	Length	Port	MAWP*
1/4" H/P	23	0.75" (19.1)	1.03" (26.2)	0.093" (2.4)	20,000 PSI 1380 bar
3/8" H/P	24	1.00" (25.4)	1.03" (26.2)	0.125" (3.2)	20,000 PSI 1380 bar
9/16" H/P	25	1.38" (34.9)	1.16" (29.5)	0.187" (4.7)	20,000 PSI 1380 bar

MALE H/P CONED AND THREADED TUBE

Connection	Suffix	Hex	Length	Port	MAWP*
1/4" H/P	9	0.75" (19.1)	1.91" (48.5)	0.093" (2.4)	20,000 PSI 1380 bar
3/8" H/P	30	0.75" (19.1)	2.12" (53.8)	0.125" (3.2)	20,000 PSI 1380 bar
9/16" H/P	42	0.75" (19.1)	2.86" (72.6)	0.187" (4.7)	20,000 PSI 1380 bar

Configure seal kits or search parts in seconds

Repair Kit Selector Part Number Search

*MAWP: 3,000 PSI (210 bar)

Port: 0.250" (6.4 mm)

Cv: 1.00

Materials of Construction:

-316 cold-worked stainless steel body and side adapters

-316 cold-worked stem

-PEEK ball seals

-Glass-filled PTFE stem packings

-Viton O-rings

Repair Kit P/N’s RK-3K34 and RK-3DVK34 contains ball, ball seals and seal retainers,
o-rings, spring washers, stem, stem packings, and washers

Mounting:

Panel: 0.78" (19.8 mm) dia
0.37" (9.4 mm) max thickness

Non-shaded items in-stock and available Shaded items manufactured to order

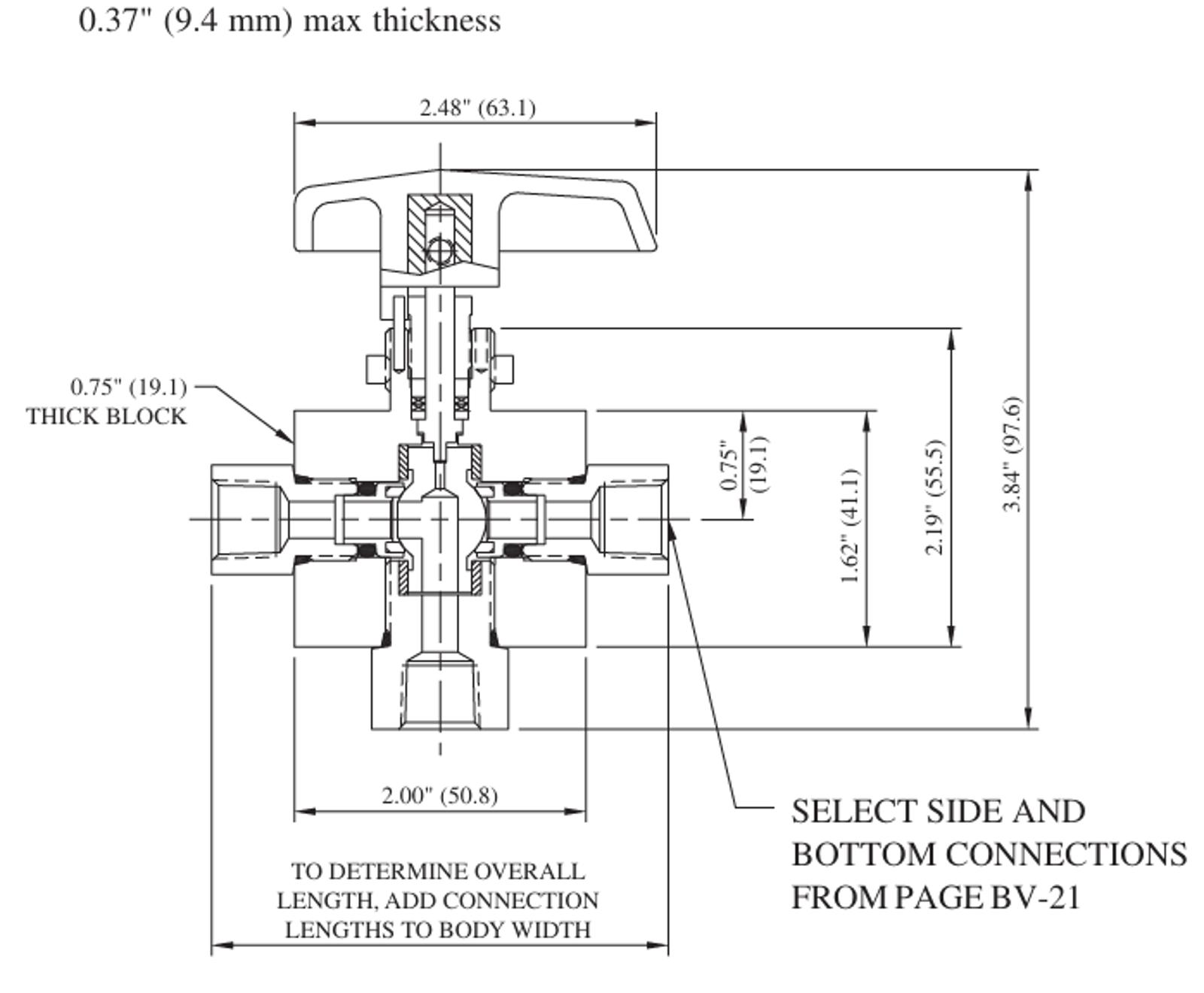

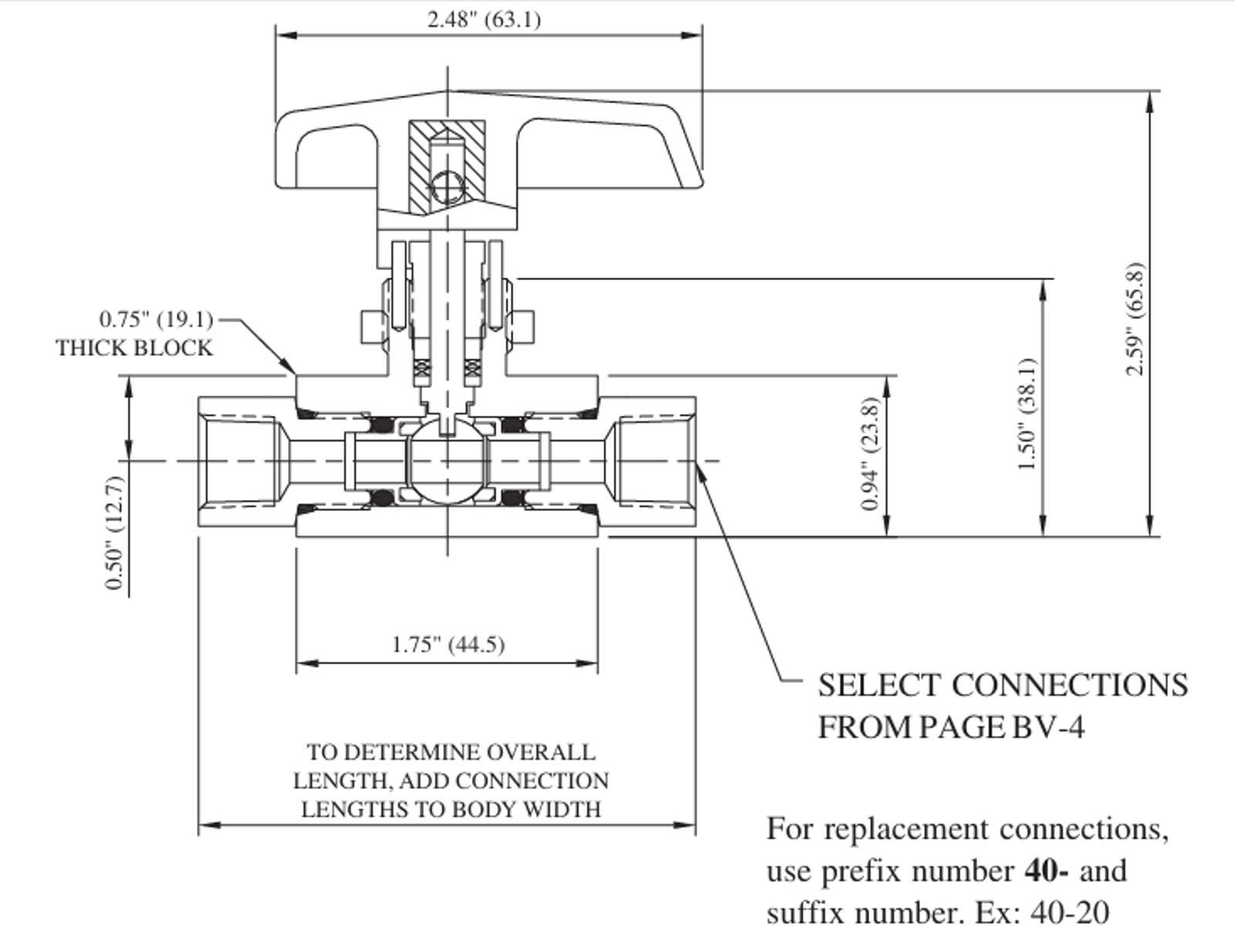

3-WAY TRUNNION VALVES 3000 PSI (210 BAR) — For replacement connections, use prefix number 40- and suffix number. Ex: 40-20

FEMALE PIPE

	For Side Connections				For Bottom Connection
Connection	Suffix	Hex	Length	Port	Suffix	Hex	Length	Port	MAWP*
1/8" FNPT	19	0.75" (19.1)	0.58" (14.7)	0.250" (6.4)	19B	0.75" (19.1)	0.43" (10.9)	0.250" (6.4)	15,000 PSI 1030 bar
1/4" FNPT	20	0.75" (19.1)	0.58" (14.7)	0.250" (6.4)	20B	0.75" (19.1)	0.73" (18.5)	0.250" (6.4)	15,000 PSI 1030 bar
3/8" FNPT	21	1.00" (25.4)	0.75" (19.1)	0.250" (6.4)	21B	1.00" (25.4)	0.81" (20.6)	0.250" (6.4)	15,000 PSI 1030 bar
1/2" FNPT	22	1.18" (30.0)	1.00" (25.4)	0.250" (6.4)	22B	1.18" (30.0)	0.96" (24.4)	0.250" (6.4)	15,000 PSI 1030 bar

MALE PIPE

	For Side Connections				For Bottom Connection
Connection	Suffix	Hex	Length	Port	Suffix	Hex	Length	Port	MAWP*
1/8" MNPT	4	0.75" (19.1)	0.97" (24.6)	0.250" (6.4)	4B	0.75" (19.1)	0.97" (24.6)	0.250" (6.4)	15,000 PSI 1030 bar
1/4" MNPT	5	0.75" (19.1)	1.19" (30.2)	0.250" (6.4)	5B	0.75" (19.1)	1.19" (30.2)	0.250" (6.4)	15,000 PSI 1030 bar
3/8" MNPT	6	1.00" (25.4)	1.30" (33.0)	0.250" (6.4)	6B	1.00" (25.4)	1.30" (33.0)	0.250" (6.4)	15,000 PSI 1030 bar
1/2" MNPT	7	1.00" (25.4)	1.55" (39.4)	0.250" (6.4)	7B	1.00" (25.4)	1.55" (39.4)	0.250" (6.4)	15,000 PSI 1030 bar

Configure seal kits or search parts in seconds

Repair Kit Selector Part Number Search

*MAWP: 6,000 PSI (410 bar)

Port: 0.187" (4.7 mm)

Cv: 0.56

Materials of Construction:

-316 cold-worked stainless steel body and side adapters

-316 cold-worked stem

-PEEK ball seals

-Glass-filled PTFE stem packings

-Viton O-rings

Repair Kit P/N’s RK-3K63 and RK-3DVK63 contains ball, ball seals and seal retainers,
o-rings, spring washers, stem, stem packings, and washers

Mounting:

Panel: 0.91" (23.0 mm) dia
0.31" (7.8 mm) max thickness

Non-shaded items in-stock and available Shaded items manufactured to order

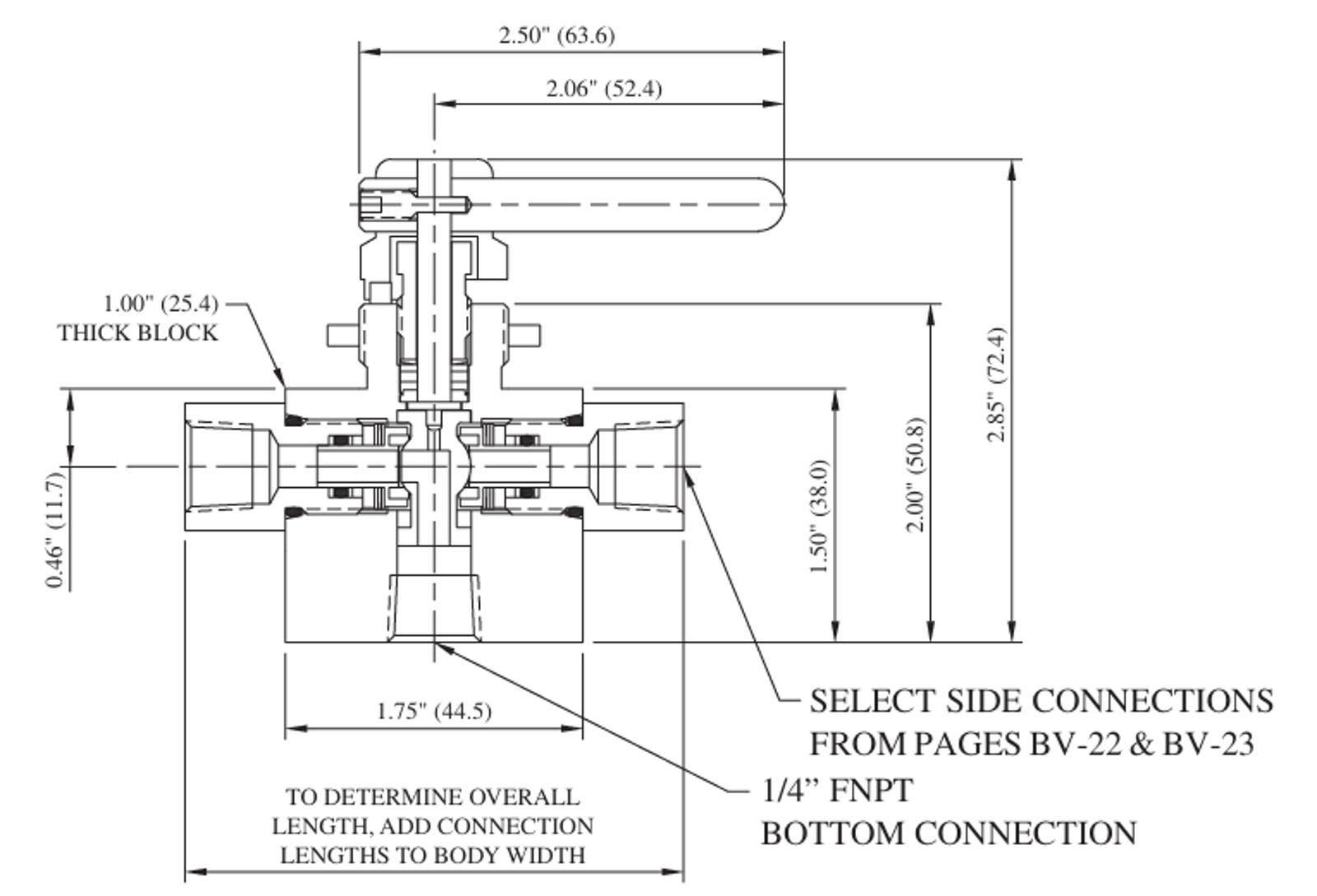

3-way trunnion valves 6000 psi (410 bar) — For replacement connections, use prefix number 3- and suffix number. Ex: 3-20

FEMALE PIPE

	For Side Connections				For Bottom Connection
Connection	Suffix	Hex	Length	Port	Suffix	Hex	Length	Port	MAWP*
1/8" FNPT	19	0.75" (19.1)	0.60" (15.2)	0.250" (6.4)	19B	1.00" (25.4)	0.63" (16.0)	0.250" (6.4)	15,000 PSI 1030 bar
1/4" FNPT	20	0.75" (19.1)	0.60" (15.2)	0.250" (6.4)	20B	1.00" (25.4)	0.55" (14.0)	0.250" (6.4)	15,000 PSI 1030 bar
3/8" FNPT	21	1.00" (25.4)	1.01" (25.7)	0.250" (6.4)	21B	1.00" (25.4)	1.01" (25.7)	0.250" (6.4)	15,000 PSI 1030 bar
1/2" FNPT	22	1.00" (25.4)	1.01" (25.7)	0.250" (6.4)	22B	1.00" (25.4)	1.16" (29.5)	0.250" (6.4)	15,000 PSI 1030 bar

MALE PIPE

	For Side Connections				For Bottom Connection
Connection	Suffix	Hex	Length	Port	Suffix	Hex	Length	Port	MAWP*
1/8" MNPT	4	0.75" (19.1)	1.01" (25.7)	0.125" (3.2)	4B	1.00" (25.4)	0.93" (23.6)	0.125" (3.2)	15,000 PSI 1030 bar
1/4" MNPT	5	0.75" (19.1)	1.01" (25.7)	0.250" (6.4)	5B	1.00" (25.4)	1.05" (26.7)	0.250" (6.4)	15,000 PSI 1030 bar
3/8" MNPT	6	0.75" (19.1)	1.01" (25.7)	0.250" (6.4)	6B	1.00" (25.4)	1.01" (25.7)	0.250" (6.4)	15,000 PSI 1030 bar
1/2" MNPT	7	1.00" (25.4)	1.26" (32.0)	0.250" (6.4)	7B	1.00" (25.4)	1.29" (32.8)	0.250" (6.4)	15,000 PSI 1030 bar

FEMALE SINGLE-FERRULE TUBE

	For Side Connections
Connection	Suffix	Hex	Length	Port	MAWP*
1/8" L/P	12	0.75" (19.1)	0.78" (19.8)	0.093" (2.4)	15,000 PSI 1030 bar
1/4" SL/P	13	0.75" (19.1)	1.03" (26.2)	0.125" (3.2)	11,500 PSI 790 bar
3/8" SL/P	14	0.75" (19.1)	1.03" (26.2)	0.250" (6.4)	7,500 PSI 520 bar
1/2" L/P	15	1.00" (25.4)	1.03" (26.2)	0.250" (6.4)	5,500 PSI 380 bar

FEMALE M/P CONED AND THREADED TUBE

	For Side Connections
Connection	Suffix	Hex	Length	Port	MAWP*
1/4" M/P	16	0.75" (19.1)	0.74" (18.8)	0.109" (2.8)	20,000 PSI 1380 bar
3/8" M/P	17	0.75" (19.1)	1.01" (25.7)	0.203" (5.2)	20,000 PSI 1380 bar
9/16" M/P	18	1.00" (25.4)	1.26" (32.0)	0.250" (6.4)	20,000 PSI 1380 bar

MALE M/P CONED AND THREADED TUBE

	For Side Connections
Connection	Suffix	Hex	Length	Port	MAWP*
1/4" M/P	8	0.75" (19.1)	1.88" (47.8)	0.109" (2.8)	20,000 PSI 1380 bar
3/8" M/P	10	0.75" (19.1)	2.00" (50.8)	0.203" (5.2)	20,000 PSI 1380 bar
9/16" M/P	11	1.00" (25.4)	2.31" (58.7)	0.250" (6.4)	20,000 PSI 1380 bar

Configure seal kits or search parts in seconds

Repair Kit Selector Part Number Search

An Introduction to BuTech Ball Valves

Access the data sheet, installation manual or other technical documents you need by using our Technical Resources Finder. Simply apply the filters or type your query into the search field to locate the right document.

Search Technical Documents

Reach Out To Us

Have questions or need more information?

Resources & Product Selectors

Document Library

Find a Sales Rep

Ball Valves

Overview

Applications:

Materials of Construction:

Ball Valve Locator

2-WAY Ball Valves 3000 PSI (210 Bar)

Materials of Construction:

Mounting:

FEMALE PIPE

MALE PIPE

2-WAY Ball Valves 6000 Psi (410 Bar)

Model No. K63

Materials of Construction:

Mounting:

FEMALE PIPE

MALE PIPE

FEMALE SINGLE-FERRULE TUBE

FEMALE M/P CONED AND THREADED TUBE

MALE M/P CONED AND THREADED TUBE

2-WAY Ball Valves 10000 Psi (690 Bar)

Model No. K103

Materials of Construction:

Mounting:

FEMALE PIPE

MALE PIPE

FEMALE SINGLE-FERRULE TUBE

FEMALE M/P CONED AND THREADED TUBE

MALE M/P CONED AND THREADED TUBE

FEMALE H/P CONED AND THREADED TUBE

MALE H/P CONED AND THREADED TUBE

2-WAY Ball Valves 20000 Psi (1380 Bar)

Model No. KW204

Materials of Construction:

Mounting:

FEMALE PIPE

MALE PIPE

FEMALE SINGLE-FERRULE TUBE

FEMALE M/P CONED AND THREADED TUBE

MALE M/P CONED AND THREADED TUBE

FEMALE H/P CONED AND THREADED TUBE

MALE H/P CONED AND THREADED TUBE

3-WAY Trunnion Valves 3000 PSI (210 Bar)

Materials of Construction:

Mounting:

FEMALE PIPE

MALE PIPE

3-WAY Trunnion Valves 6000 PSI (410 Bar)

Materials of Construction:

Mounting:

FEMALE PIPE

MALE PIPE

FEMALE SINGLE-FERRULE TUBE

FEMALE M/P CONED AND THREADED TUBE

MALE M/P CONED AND THREADED TUBE

Downloads

An Introduction to BuTech Ball Valves

BuTech Subsea Ball Valves
