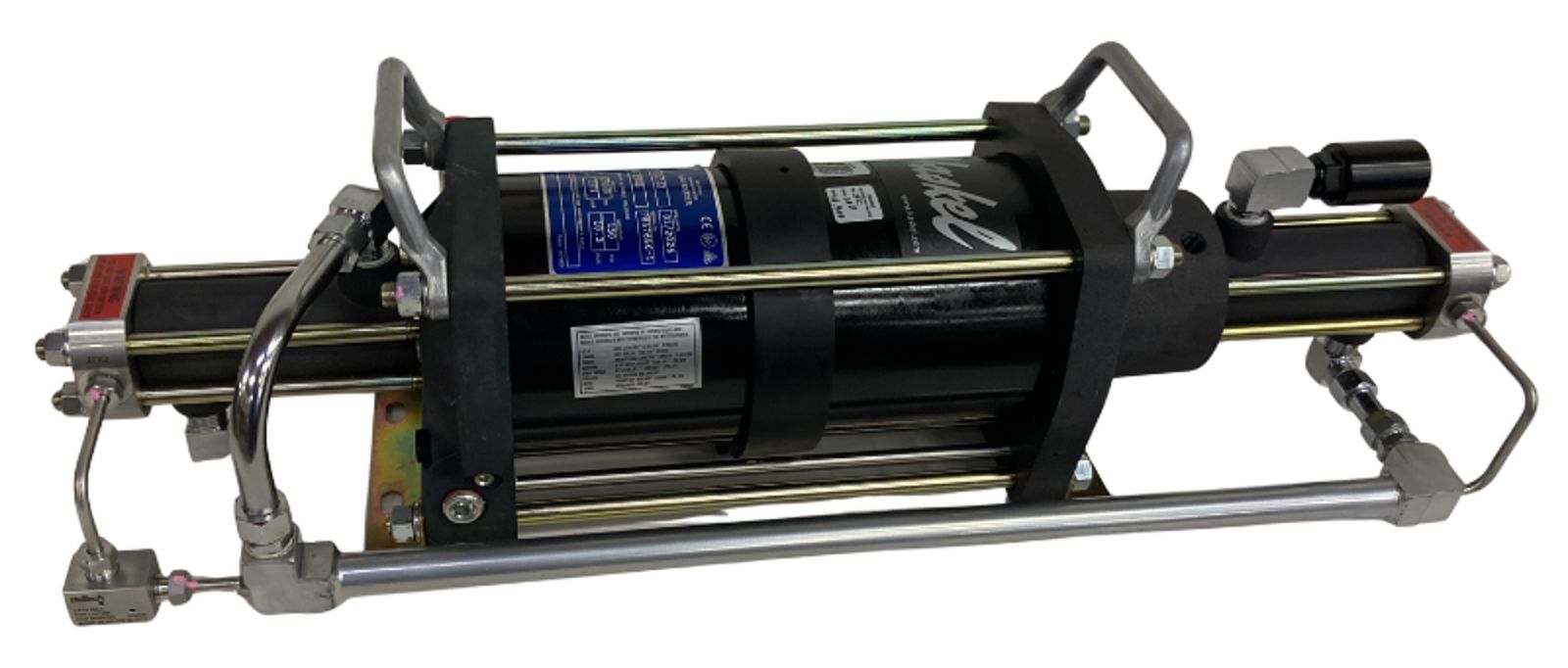

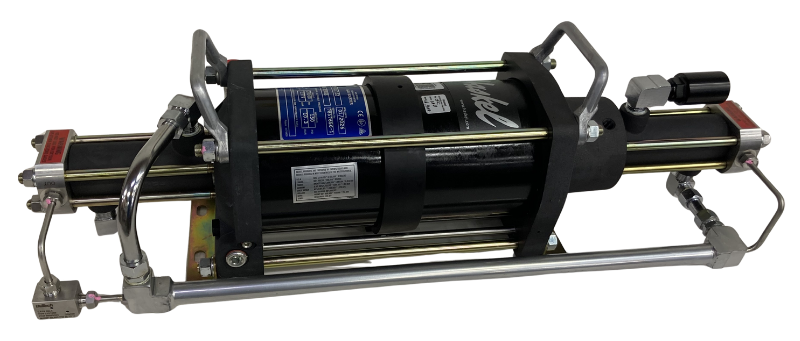

AGT Series Two Stage 8' and 14' | Hakel Gas Boosters

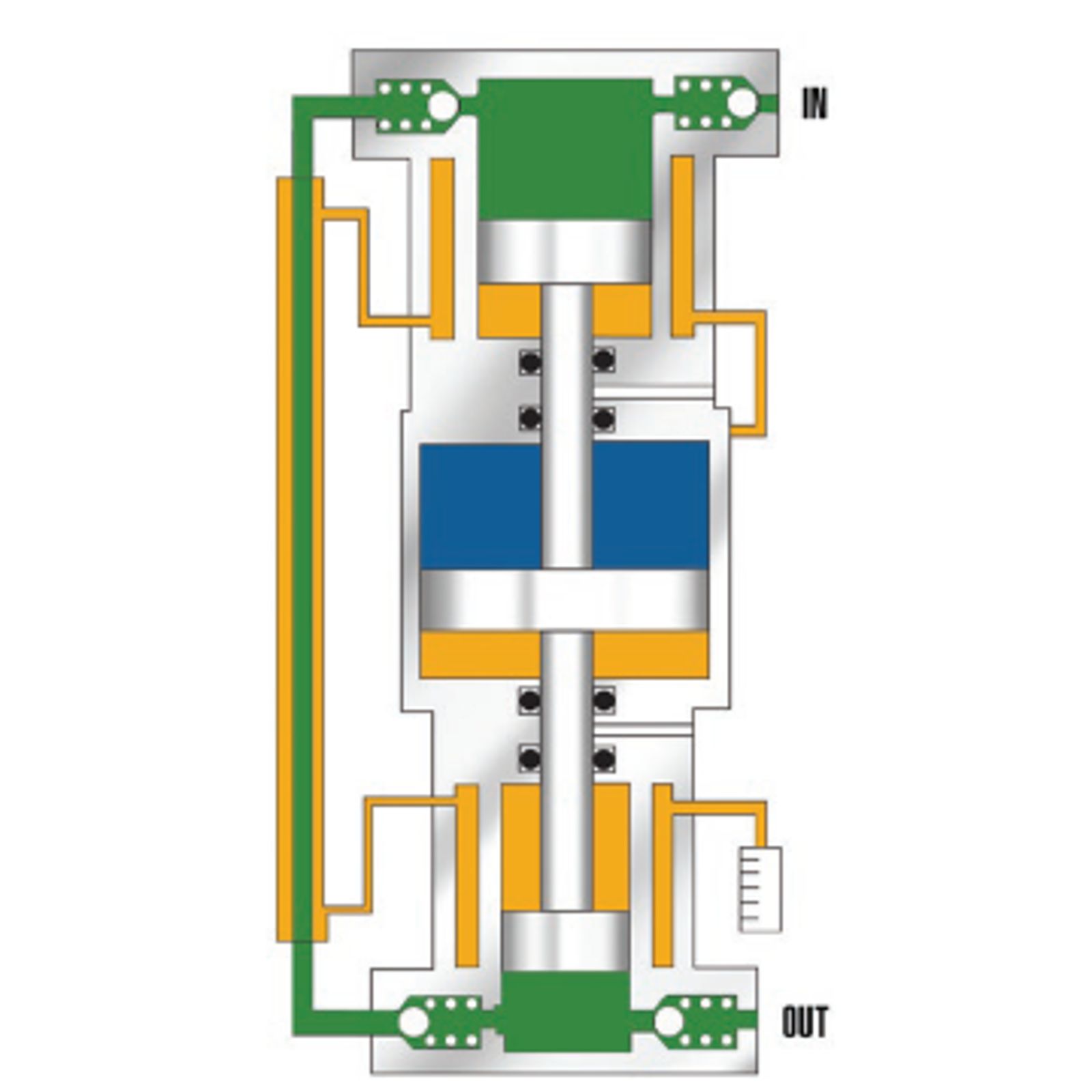

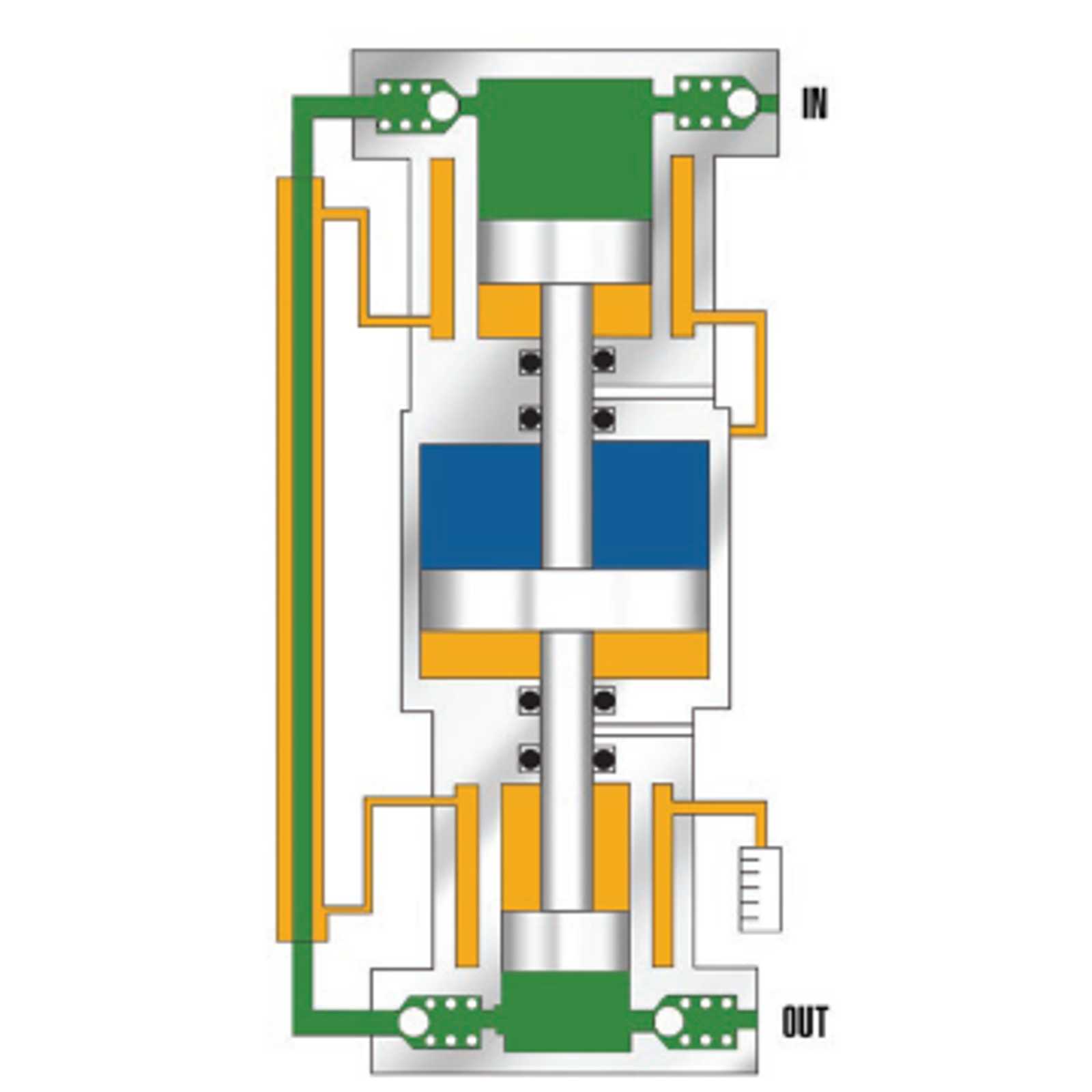

Pneumatic Driven Gas Booster Configurations

Haskel 8-inch or 14-inch AGT Series two-stage gas boosters are air-driven, high-compression units designed to boost gases (including Nitrogen, Helium, Hydrogen, and CNG) to pressures up to 9,000 psi or higher.

Download Catalog

Configuration Tool

Model No	Maximum Rated Gas Supply		Min. Gas Supply Pressure		Maximum Rated Gas Outlet (Inert Gas)		Static Outlet Stall Pressure Formula	Piston Displ. Per Cycle	Gas Inlet/Outlet Connections	Weight
Model No	PSI	BAR	PSI	BAR	PSI	BAR	Static Outlet Stall Pressure Formula	CU. IN.	Gas Inlet/Outlet Connections	lbs(kg)
8AGT-5/14	2.8 Pa to 2500¹	2.8 Pa to 172¹	25	1.7	2500	172	14 Pa+2.8 Ps	35.7	Inlet Port 1/2” NPT Outlet Port 1/4” NPT	121 (55)
8AGT-5/30	1 Pa to 2500¹	1 Pa to 172¹	25	1.7	5000	345	30 Pa+6 Ps	35.7	Inlet Port 1/2” NPT Outlet Port 1/4” NPT	121 (55)
8AGT-14/30	12 Pa to 1190¹ 2500¹	12 Pa to 82¹ 172¹	25	1.7	5000	345	30 Pa+2.1 Ps	13.2	Inlet Port 1/2” NPT Outlet Port 1/4” NPT	121 (55)
8AGT-14/60	4.3 Pa to 2500¹	4.3 Pa to 172¹	25	1.7	9000	620	60 Pa+4.3 Ps	13.2	3/8” NPT Inlet Port 1/4” -HP (BuTech) Port Outlet	121 (55)
8AGT-30/60	30 Pa to 2500¹ 5000²	2.8 Pa to 172¹ (345)	25	1.7	9000 5000²	620 (345)	60 Pa+2 Ps	6.2	1/4” NPT Inlet Port 1/4” -HP (BuTech) Port Outlet	121 (55)
8AGT-60/150	40 Pa to 3600¹ 9000²	40 Pa to 248¹ (621)	25	1.7	20000 9000²	1378 (621)	150 Pa+2.5 Ps	3.1	1/4” NPT Inlet Port 1/4” -HP (BuTech) Port Outlet	121 (55)
14AGT-125/315	82 Pa to 6000¹ 15000²	82 Pa to 414¹ (1034)	1000	6.9	35000 15000²	2413 (1034)	315 Pa+2.5 Ps	4.44	3/8” -H/P (BuTech) Both Ports Ports	154 (70)

Model No	Maximum Rated Gas Supply		Min. Gas Supply Pressure		Maximum Rated Gas Outlet (Oxygen)		Static Outlet Stall Pressure Formula	Piston Displ. Per Cycle	Gas Inlet/Outlet Connections	Weight
Model No	PSI	BAR	PSI	BAR	PSI	BAR	Static Outlet Stall Pressure Formula	CU. IN.	Gas Inlet/Outlet Connections	lbs(kg)
8AGT-5/14	2.8 Pa to 2500¹	2.8 Pa to 172¹	25	1.7	2500	172	14 Pa+2.8 Ps	35.7	Inlet Port 1/2” NPT Outlet Port 1/4” NPT	121 (55)
8AGT-5/30	1 Pa to 2500¹	1 Pa to 172¹	25	1.7	5000	345	30 Pa+6 Ps	35.7	Inlet Port 1/2” NPT Outlet Port 1/4” NPT	121 (55)
8AGT-14/30	12 Pa to 1190¹ 2500¹	12 Pa to 82¹ 172¹	25	1.7	5000	345	30 Pa+2.1 Ps	13.2	Inlet Port 1/2” NPT Outlet Port 1/4” NPT	121 (55)
8AGT-14/60	4.3 Pa to 2500¹	4.3 Pa to 172¹	25	1.7	5000	345	60 Pa+4.3 Ps	13.2	3/8” NPT Inlet Port 1/4” -HP (BuTech) Port Outlet	121 (55)
8AGT-30/60	30 Pa to 2500¹ 5000²	2.8 Pa to 172¹ (345)	25	1.7	5000	345	60 Pa+2 Ps	6.2	1/4” NPT Inlet Port 1/4” -HP (BuTech) Port Outlet	121 (55)
8AGT-60/150	40 Pa to 3600¹ 9000²	40 Pa to 248¹ (621)	25	1.7	N/A	N/A	150 Pa+2.5 Ps	3.1	1/4” NPT Inlet Port 1/4” -HP (BuTech) Port Outlet	121 (55)
14AGT-125/315	82 Pa to 6000¹ 15000²	82 Pa to 414¹ (1034)	1000	6.9	N/A	N/A	315 Pa+2.5 Ps	4.44	3/8” -H/P (BuTech) Both Ports Ports	154 (70)

Model No	Maximum Rated Gas Supply		Min. Gas Supply Pressure		Maximum Rated Gas Outlet (Hydrogen)		Static Outlet Stall Pressure Formula	Piston Displ. Per Cycle	Gas Inlet/Outlet Connections	Weight
Model No	PSI	BAR	PSI	BAR	PSI	BAR	Static Outlet Stall Pressure Formula	CU. IN.	Gas Inlet/Outlet Connections	lbs(kg)
8AGT-5/14	2.8 Pa to 2500¹	2.8 Pa to 172¹	25	1.7	N/A	N/A	14 Pa+2.8 Ps	35.7	Inlet Port 1/2” NPT Outlet Port 1/4” NPT	121 (55)
8AGT-5/30	1 Pa to 2500¹	1 Pa to 172¹	25	1.7	N/A	N/A	30 Pa+6 Ps	35.7	Inlet Port 1/2” NPT Outlet Port 1/4” NPT	121 (55)
8AGT-14/30	12 Pa to 1190¹ 2500¹	12 Pa to 82¹ 172¹	25	1.7	4000	276	30 Pa+2.1 Ps	13.2	Inlet Port 1/2” NPT Outlet Port 1/4” NPT	121 (55)
8AGT-14/60	4.3 Pa to 2500¹	4.3 Pa to 172¹	25	1.7	N/A	N/A	60 Pa+4.3 Ps	13.2	3/8” NPT Inlet Port 1/4” -HP (BuTech) Port Outlet	121 (55)
8AGT-30/60	30 Pa to 2500¹ 5000²	2.8 Pa to 172¹ (345)	25	1.7	9000	620	60 Pa+2 Ps	6.2	1/4” NPT Inlet Port 1/4” -HP (BuTech) Port Outlet	121 (55)
8AGT-60/150	40 Pa to 3600¹ 9000²	40 Pa to 248¹ (621)	25	1.7	N/A	N/A	150 Pa+2.5 Ps	3.1	1/4” NPT Inlet Port 1/4” -HP (BuTech) Port Outlet	121 (55)
14AGT-125/315	82 Pa to 6000¹ 15000²	82 Pa to 414¹ (1034)	1000	6.9	N/A	N/A	315 Pa+2.5 Ps	4.44	3/8” -H/P (BuTech) Both Ports Ports	154 (70)

Pneumatic and Hydraulic Driven Gas Boosters

Hydrogen Compression, Storage & Transfer

Access the data sheet, installation manual or other technical documents you need by using our Technical Resources Finder. Simply apply the filters or type your query into the search field to locate the right document.

Search Technical Documents

Resources & Product Selectors Document Library Find a Sales Rep

Air Driven Gas Booster - AGT Series Two Stage 8' and 14'

Gas Booster Configuration

Nitrogen, Helium and Other Gases Specifications

Specification Oxygen

Specification Hydrogen

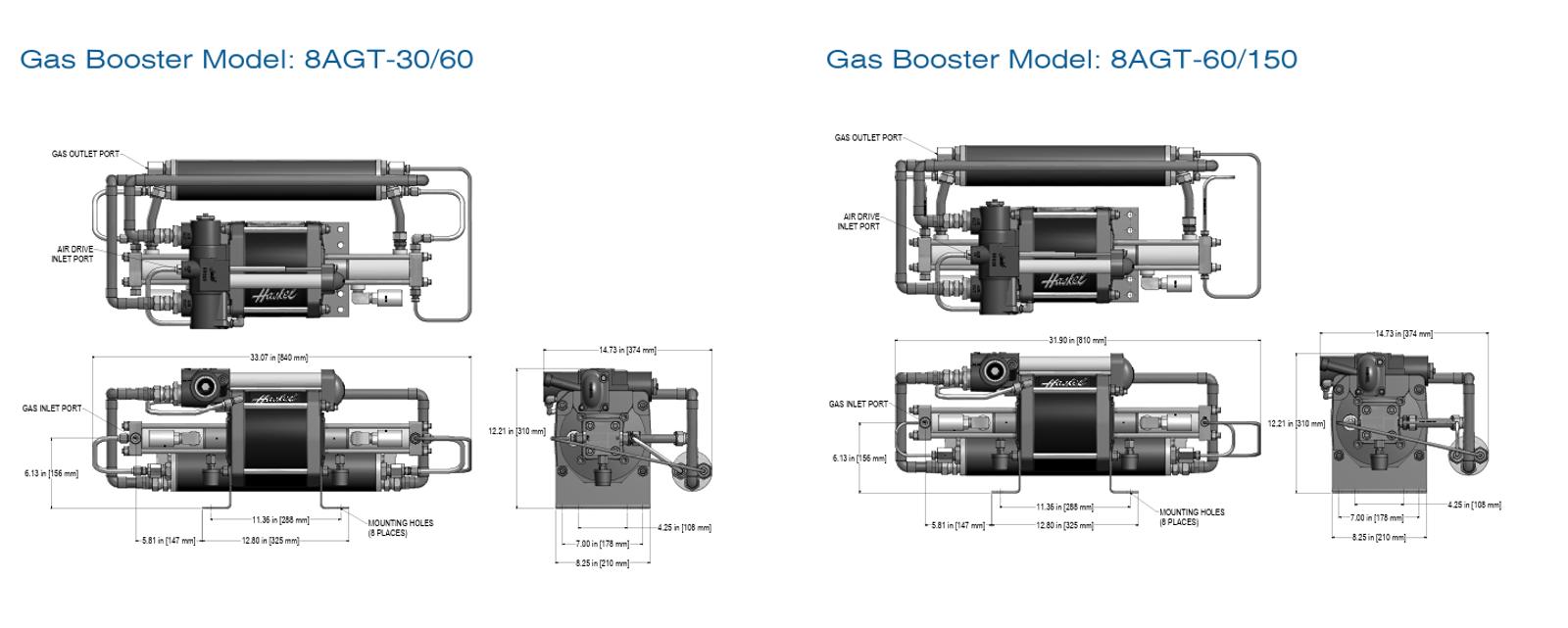

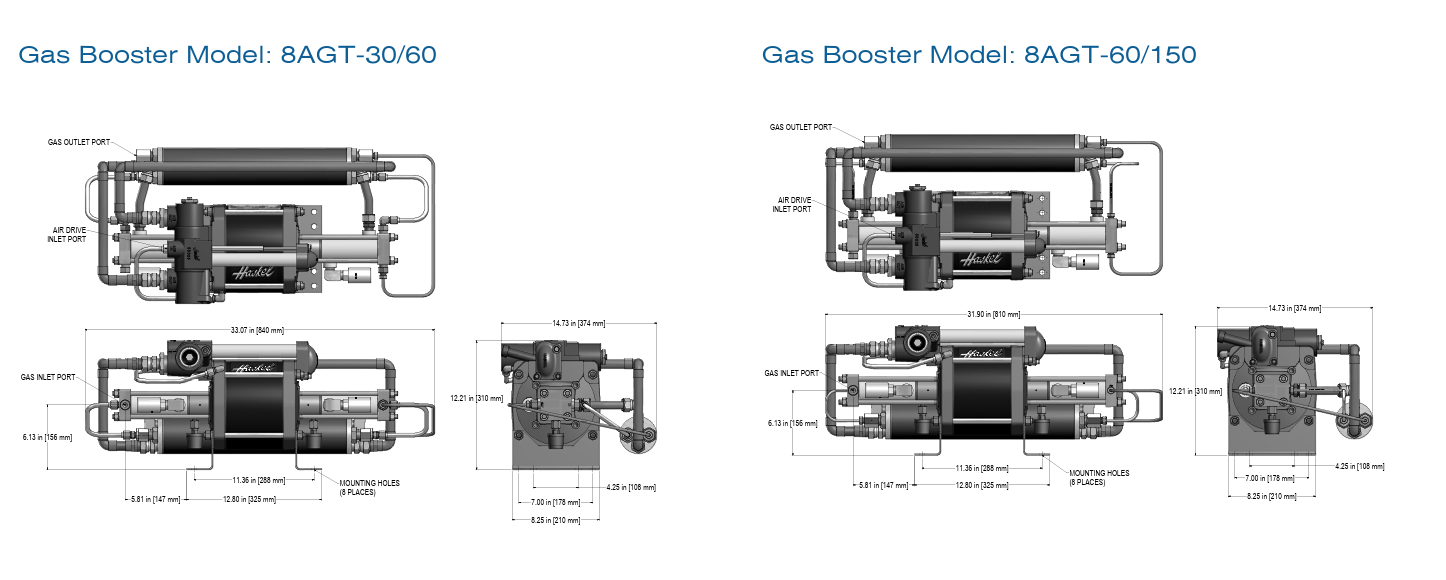

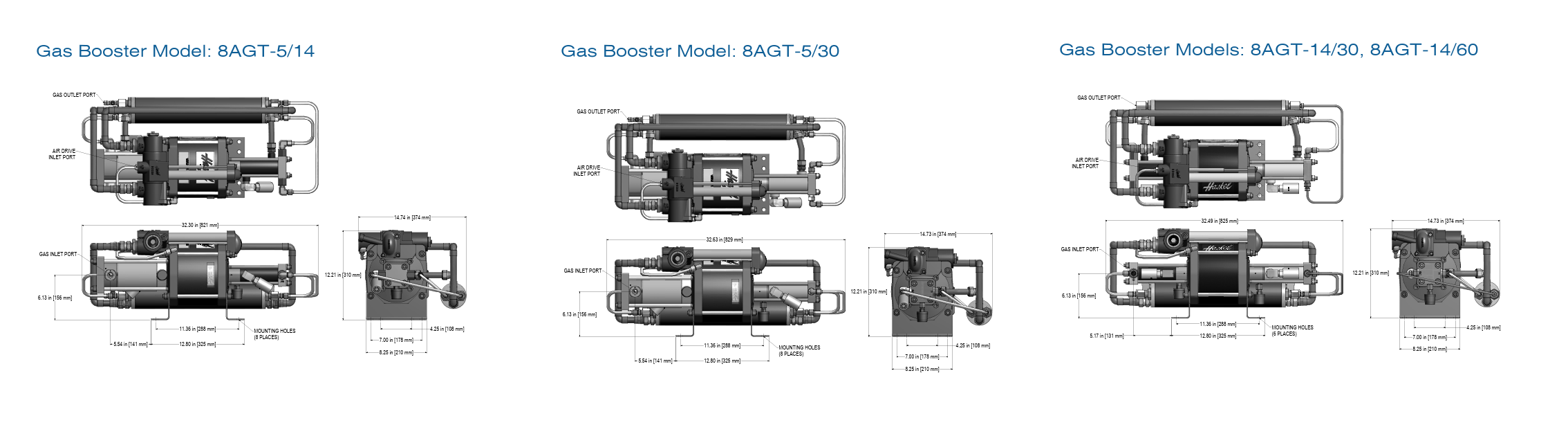

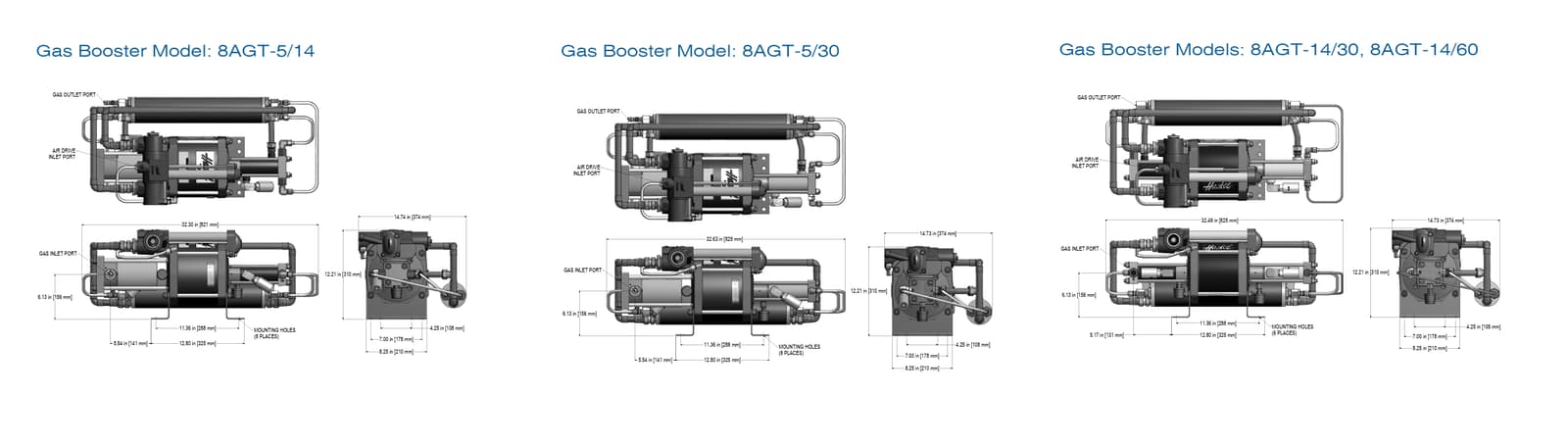

Dimensional Drawings
