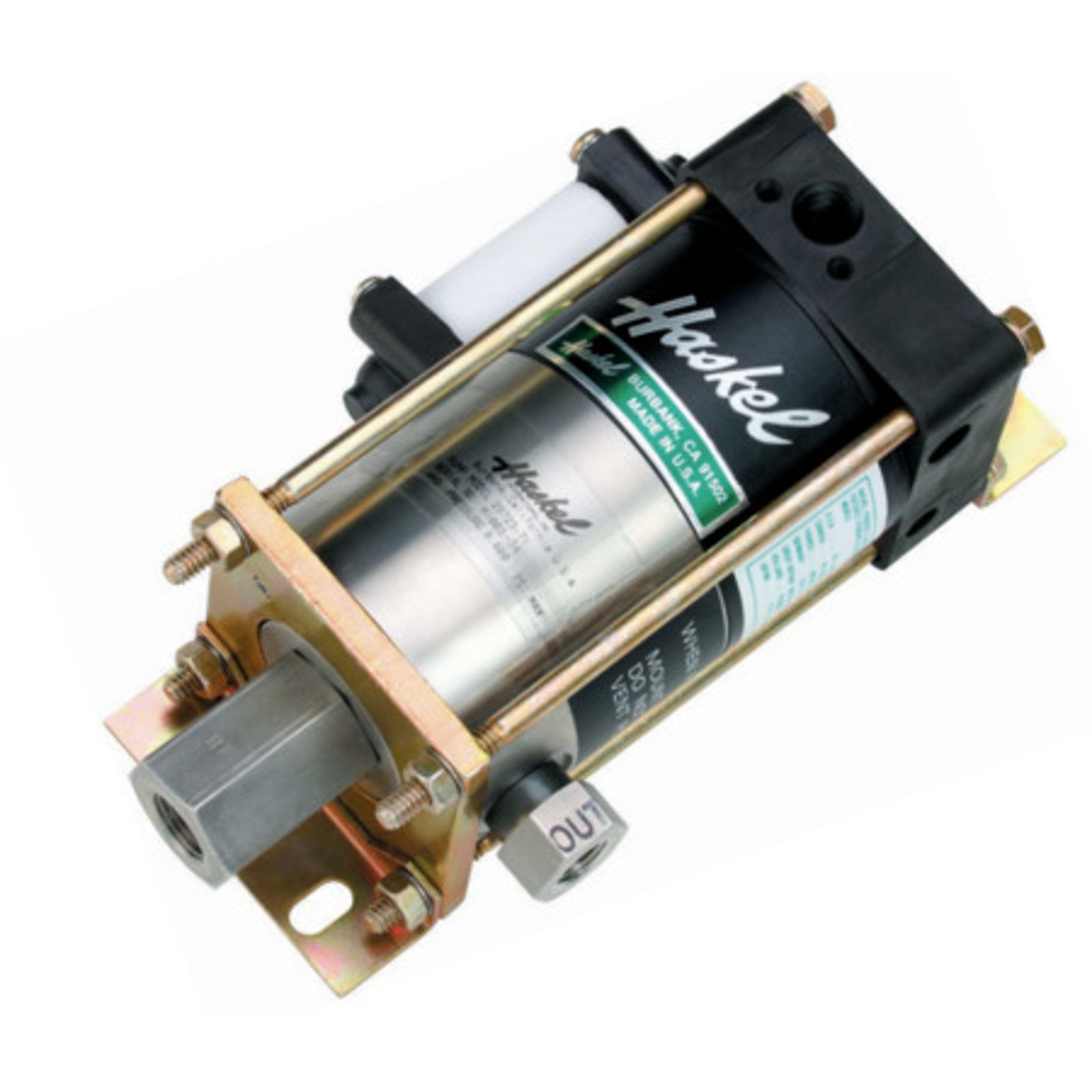

The Haskel .33 hp liquid pump offers a compact and flexible solution for generating high liquid pressures using pneumatic drive. Designed for reliable operation in test, injection, and industrial applications, it combines precise pressure control with a wide range of configuration options. With multiple pressure ratios, material selections, and media compatibility, the .33 hp series can be tailored to suit different system requirements while maintaining consistent performance and ease of integration.
- Choice of 6 models, 9 ratios, 27 possible combinations
- Flows to 2 gpm (7.5 l/min)
- Choice of wetted materials
- Single air head
- Drive pressure 25 to 125 psi (1.8 to 9 bar)
- Pressures to 25,000 psi (1724 bar)
- All Hydraulic fluids, water (plain or DI), solvents, mild chemicals, liquefied gases
Key Features
- Choice of 6 models, 9 ratios, 27 possible combinations
- Flows to 2 gpm (7.5 l/min)
- Choice of wetted materials
- Single air head
- Drive pressure 25 to 125 psi (1.8 to 9 bar)
- Pressures to 25,000 psi (1724 bar)
- All Hydraulic fluids, water (plain or DI), solvents, mild chemicals, liquefied gases
Pump Model Code | Ratio Dash no. | Actual Area Ratio | Maximum Rated Output Pressure | Displacement/Cycle | Maximum Flow | |||||
|---|---|---|---|---|---|---|---|---|---|---|
Continuous | Intermittent | |||||||||
psi | bar | psi | bar | cu in | ml | cu in/min | l/min | |||
M, MDSTV | -5 | 5.6 | 625 | 43 | 625 | 43 | 0.83 | 13.6 | 506 | 8.30 |
M, MS | -7 | 7.8 | 900 | 62 | 900 | 62 | 0.60 | 9.8 | 366 | 6.00 |
M, MS, 29723 | -21 | 25 | 2600 | 179 | 2600 | 179 | 0.20 | 3.3 | 130 | 2.13 |
M, MS | -188 | 217 | 15000 | 1034 | 15000 | 1034 | 0.023 | 0.40 | 18 | 0.29 |
29723 | -188 | 217 | 10000 | 1034 | 10000 | 1034 | 0.023 | 0.40 | 18 | 0.29 |
MS | -220 | 220 | 20000 | 1380 | 25000 | 1723 | 0.021 | 0.34 | 14 | 0.22 |
MODEL | WETTED MATERIALS | NON METALLICS | |
|---|---|---|---|
PUMP SECTION | PLUNGERS | ||
M | Cad plated steel, Aluminum & SS | 416 SS | Urethane, PTFE, Buna |
MS | All SS | 316 SS | UHMWPE, PTFE, Buna |
29723 | Separation - All SS | Hard Chrome Plated 15.5PH SS + Dichronite | UHMWPE, PTFE, Ryton |
MDSTV | Stainless Steel and Aluminum | 303 Stainless SteeL | Viton, PTFE |
Configure seal kits or search parts in seconds

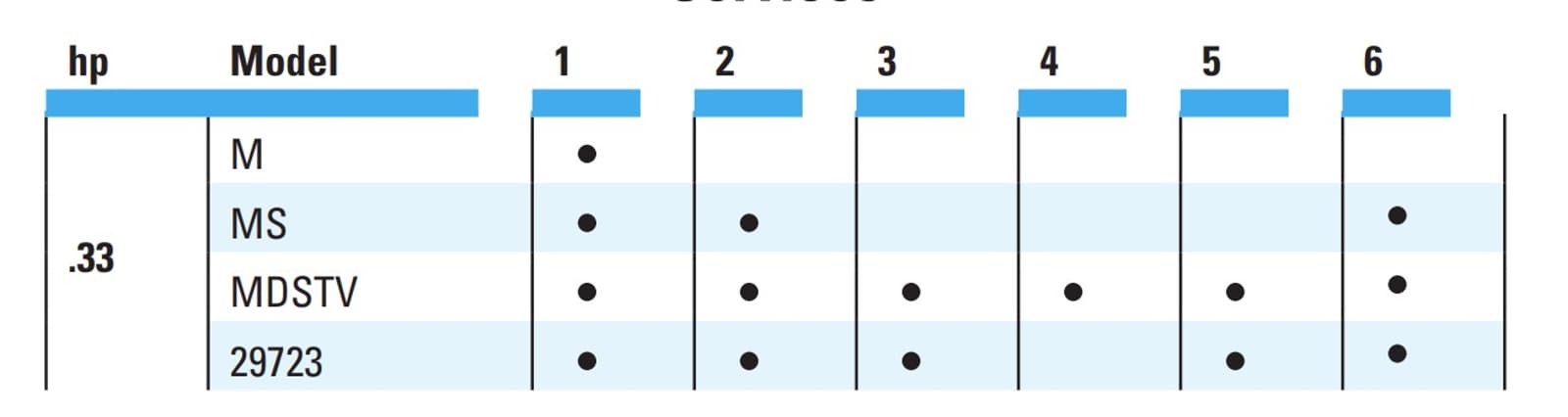

To assist in easier pump selection, we have classified various popular liquids in groups and assigned to each group a service code. These service code numbers are featured in the chart to the right and are designated for each pump series. Seals and other wetted materials can be supplied to suit your preferred liquid. For advice, please contact our technical services personnel at 818-843-4000.
Service Codes
1 - Petroleum-based oils, kerosene, ethylene glycol, water with 5% soluble oil.
2 - Plain water, diesel fuel.
3 - Most phosphate ester-based hydraulic e.g. Pydraul, Lindol, Cellulube, Fyrquel, and Houghtosafe 1120 and petroleum-based solvents compatible with UHMWPE (Ultra-high Molecular Weight Polyethylene) dynamic seals and Viton static seals.
4 - Petroleum-based solvents, e.g. aromatic hydrocarbons (benzene, toluene, xylene, hylene, etc.); chlorinated solvents (trichlorethylene, carbon tetrachloride, chlorobenzine, etc.); mercaptans, Dowtherm A, solvents etc.); Dowtherm E, plus all of Group 3 and some mildly corrosive acids compatible with wetted materials. See note 5A for service with methyl-ethyl-ketone, methyl acetone, diacetone, alcohol and freon 22.
5 - Skydrol and Aerosafe hydraulic acetone and some alcohols (ethyl, methyl, and isopropyl). 5A. Also suitable for these if Viton static seals are replaced with EPR; specify number 51331 (no extra charge); e.g., 51331-MDTV-5. Most phosphate ester-based solidify at approximately 30000 psi.
6 - Deionized water; demineralized water.
To pick the best option for your application, reach out to us
