Hydrogen Needle Valves

High pressure needle valves coned and threaded for service from 30,000 psi (2,070 bar) to 150,000 psi (10,340 bar).Needle Valves Available in a variety of body styles designed for operation at temperatures ranging from -58° to +392°F (-50° to +200°C). Extended stuffing box allows for operation down to -423°F (-253°C).
Download Catalog
Configuration Tool

Haskel offers specialized needle valves designed to handle high-pressure hydrogen in both gas and liquid forms, with ratings typically up to 20,000 PSI (1,378 bar). These valves are engineered to resist hydrogen embrittlement and provide leak-free performance in critical applications like refueling stations and fuel cell testing.

Key Specifications for Hydrogen Needle Valves
  • Pressure Ratings: Standard hydrogen-rated needle valves handle up to 20,000 PSI (1,378 bar).
  • Temperature Range:
    • Standard: -58°F to +392°F (-50°C to +200°C).
    • Extreme/Cryogenic: With an extended stuffing box, operation is possible down to -423°F (-253°C).
  • Materials: Constructed primarily of 316 cold-worked stainless steel to ensure longevity and safety.
  • Stem Options: Available with a treated 316 Stem (Suffix -H2-S) or High Nickel alloy (Suffix -H2-N) for superior resistance to hydrogen-induced cracking.

2-Way Straight Needle Valve 20,000 PSI (1378 BAR)



Catalog Number

Stem Style

Connection

A

B

C

D

E

F

G

H

I

J

K

L

Thk.

20UV41V-N-H2-S

Vee

1/4” M/P Tube

2.00”

1.00”

2.00”

4.50”

1.62”

1.19”

0.62”

0.38”

3.00”

0.25”

-

-

0.75”

20UV41R-N-H2-S

Reg

(50.8)

(25.4)

(50.8)

(114.3)

(41.1)

(30.2)

(15.7)

(9.7)

(76.2)

(6.4)

-

-

(19.1)

20UV61V-N-H2-S

Vee

3/8” M/P Tube

2.00”

1.00”

2.00”

4.50”

1.62”

1.19”

0.62”

0.38”

3.00”

0.25”

-

-

0.75”

20UV61R-N-H2-S

Reg

(50.8)

(25.4)

(50.8)

(114.3)

(41.1)

(30.2)

(15.7)

(9.7)

(76.2)

(6.4)

-

-

(19.1)

20UV91V-N-H2-S

Vee

9/16” M/P Tube

2.50”

1.25”

2.88”

6.32”

2.38”

1.75”

0.69”

0.50”

4.00”

0.34”

-

-

1.00”

20UV91R-N-H2-S

Reg

(63.5)

(31.8)

(73.2)

(160.5)

(60.5)

(44.5)

(17.5)

(12.7)

(101.6)

(8.6)

-

-

(25.4)

20V121V-N-H2-S

Vee

3/4” M/P Tube

3.00”

1.50”

3.75”

8.75”

3.00”

2.25”

0.88”

0.62”

8.00”

0.43”

-

-

1.38”

20V121R-N-H2-S

Reg

(76.2)

(38.1)

(95.3)

(222.3)

(76.2)

(57.2)

(22.4)

(15.7)

(203.2)

(10.9)

-

-

(35.1)

20V161V-N-H2-S

Vee

1” M/P Tube

4.12”

2.06”

4.75”

10.19”

3.75”

2.81”

1.25”

1.12”

10.00”

0.56”

-

-

1.75”

20V161R-N-H2-S

Reg

(104.6)

(52.3)

(258.8)

(258.8)

(95.3)

(71.4)

(31.8)

(28.4)

(254.0)

(14.2)

-

-

(44.5)



* -N Indicates material of construction being 316 SS with a minimum 12.5% Nickel content to resist hydrogen embrittlement.

* -H2 Indicates for Hydrogen Service

* -S Indicates 316 SS Stem

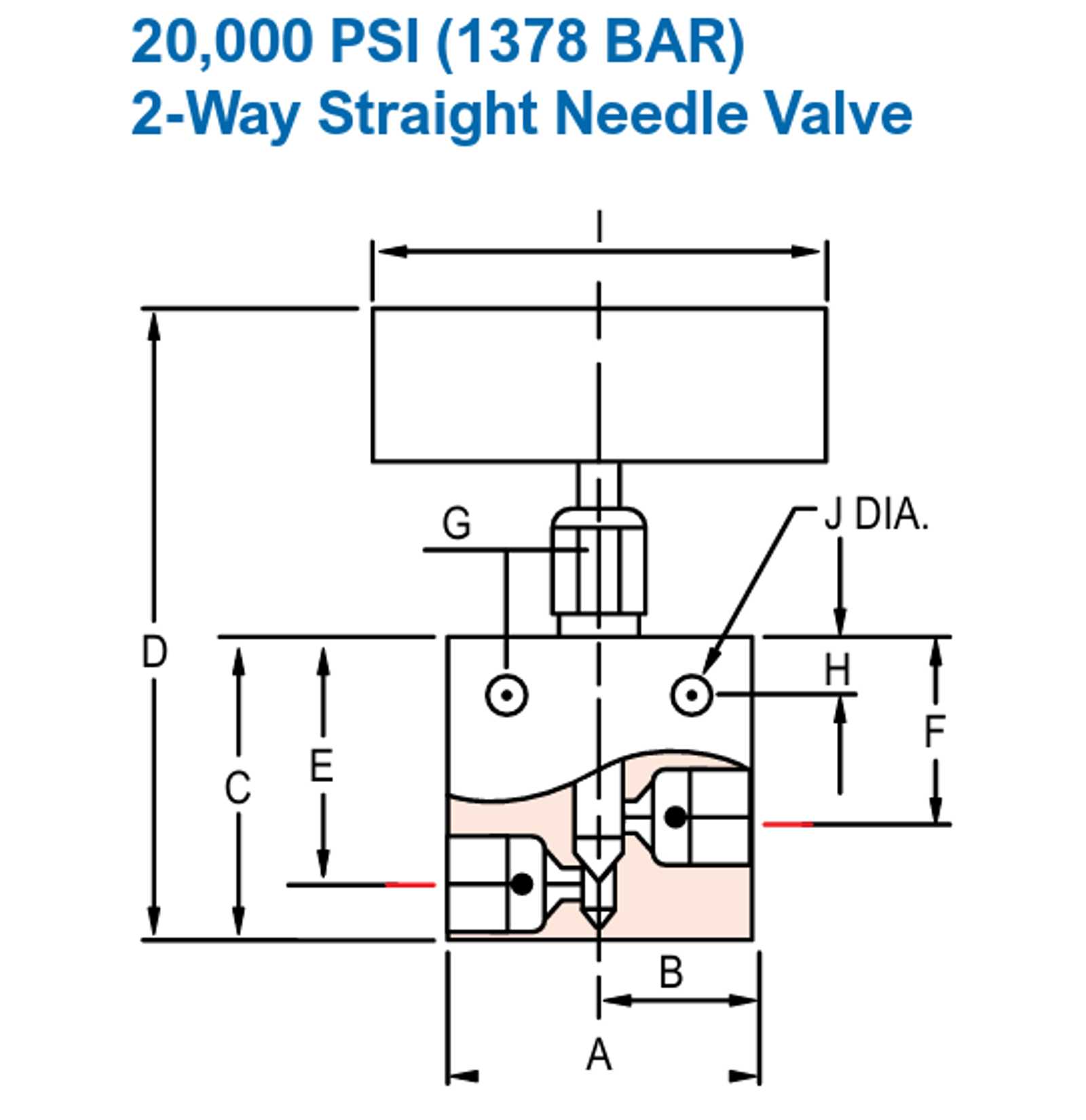

2-Way Straight Needle Valve

2-Way Angle Needle Valve 20,000 PSI (1378 BAR)



Catalog Number

Stem Style

Connection

A

B

C

D

E

F

G

H

I

J

K

L

Thk.

20UV42V-N-H2-S

Vee

1/4” M/P Tube

2.00”

1.00”

2.00”

4.50”

1.62”

1.19”

0.62”

0.38”

3.00”

0.25”

-

-

0.75”

20UV42R-N-H2-S

Reg

(50.8)

(25.4)

(50.8)

(114.3)

(41.1)

(30.2)

(15.7)

(9.7)

(76.2)

(6.4)

-

-

(19.1)

20UV62V-N-H2-S

Vee

3/8” M/P Tube

2.00”

1.00”

2.00”

4.50”

1.62”

1.19”

0.62”

0.38”

3.00”

0.25”

-

-

0.75”

20UV62R-N-H2-S

Reg

(50.8)

(25.4)

(50.8)

(114.3)

(41.1)

(30.2)

(15.7)

(9.7)

(76.2)

(6.4)

-

-

(19.1)

20UV92V-N-H2-S

Vee

9/16” M/P Tube

2.50”

1.25”

2.88”

6.32”

2.38”

1.75”

0.69”

0.50”

4.00”

0.34”

-

-

1.00”

20UV92R-N-H2-S

Reg

(63.5)

(31.8)

(73.2)

(160.5)

(60.5)

(44.5)

(17.5)

(12.7)

(101.6)

(8.6)

-

-

(25.4)

20V122V-N-H2-S

Vee

3/4” M/P Tube

3.00”

1.50”

3.75”

8.75”

3.00”

2.25”

0.88”

0.62”

8.00”

0.43”

-

-

1.38”

20V122R-N-H2-S

Reg

(76.2)

(38.1)

(95.3)

(222.3)

(76.2)

(57.2)

(22.4)

(15.7)

(203.2)

(10.9)

-

-

(35.1)

20V162V-N-H2-S

Vee

1” M/P Tube

4.12”

2.06”

4.75”

10.19”

3.75”

2.81”

1.25”

1.12”

10.00”

0.56”

-

-

1.75”

20V162R-N-H2-S

Reg

(104.6)

(52.3)

(258.8)

(258.8)

(95.3)

(71.4)

(31.8)

(28.4)

(254.0)

(14.2)

-

-

(44.5)



* - N Indicates material of construction being 316 SS with a minimum 12.5% Nickel content to resist hydrogen embrittlement.

* - H2 Indicates for Hydrogen Service

* - S Indicates 316 SS Stem

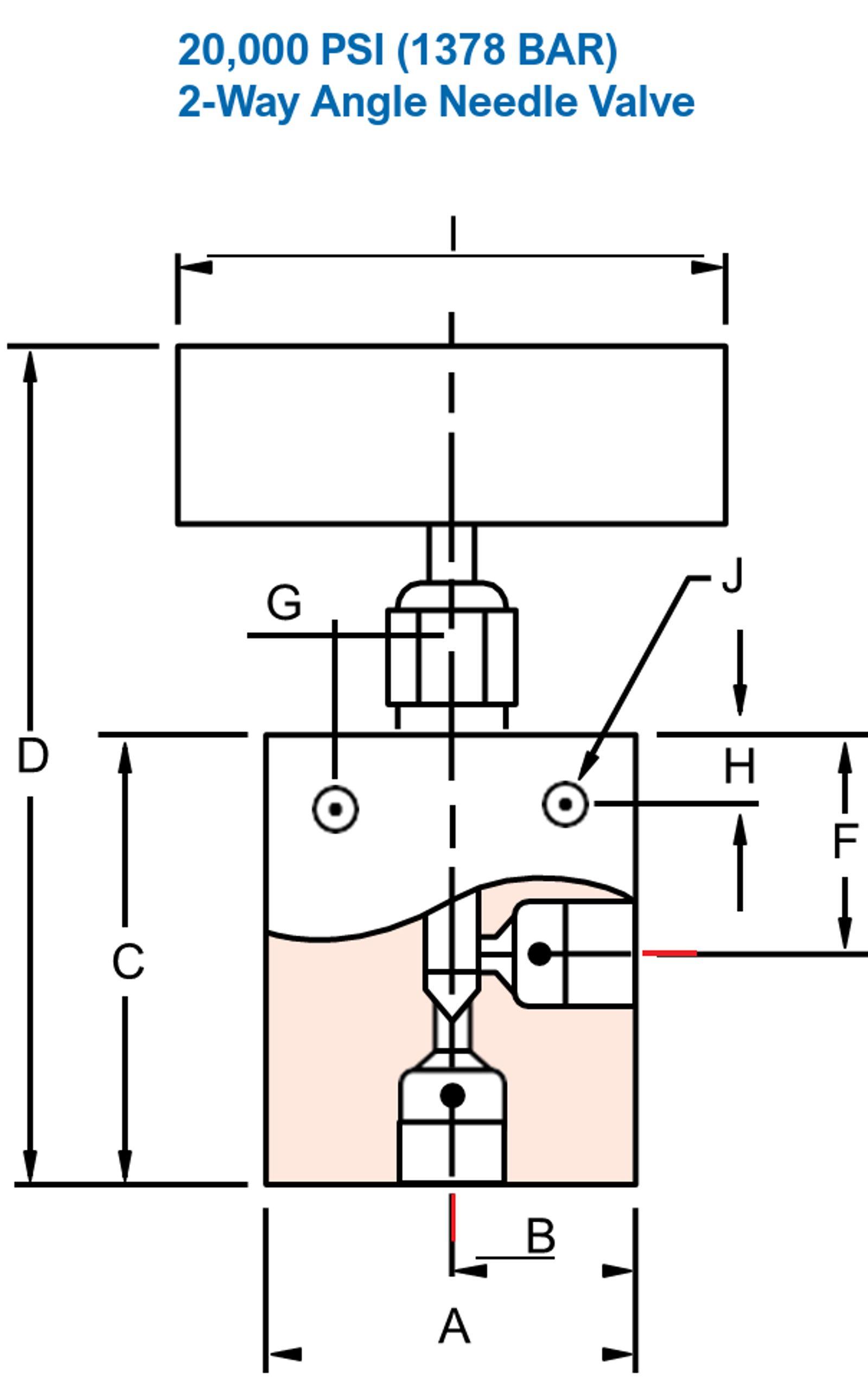

2-Way Angle Needle Valve
