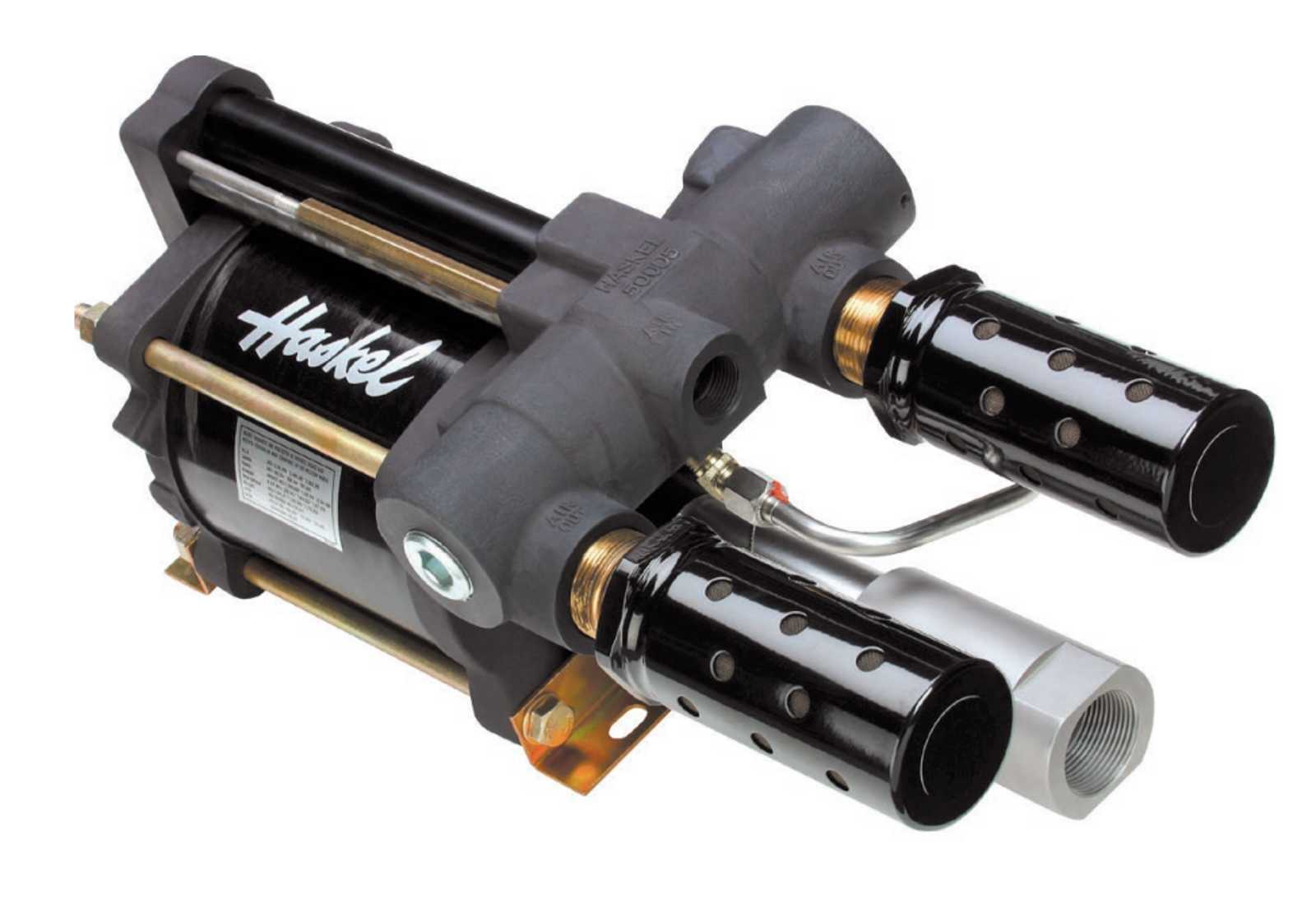

The 6 hp model is optimized for high flow at moderate to high pressures, making it well suited for flushing, circulation, pressure supply, and production‑level hydraulic applications. Its double‑acting design delivers consistent output, while multiple configuration paths allow users to prioritize either flow or pressure depending on system needs.
- Choice of 10 models, 4 ratios, 20 possible combinations
- Output pressures to 10,000 psi (690 bar)
- Flow rates to 21 gpm (80 l/min)
- Choice of wetted materials
- Single air head – double acting
- Drive pressure 3 to 125 psi (.2 to 9 bar)
- All hydraulic fluids, water (plain or DI), solvents
Key Features
- Choice of 10 models, 4 ratios, 20 possible combinations
- Output pressures to 10,000 psi (690 bar)
- Flow rates to 21 gpm (80 l/min)
- Choice of wetted materials
- Single air head – double acting
- Drive pressure 3 to 125 psi (.2 to 9 bar)
- All hydraulic fluids, water (plain or DI), solvents
Max Air |
Air Head |
Power | Pump Model Code | Ratio Dash no. | Actual Area Ratio | Maximum Rated Output Pressure | Displacement/Cycle | Maximum Flow | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Continuous | Intermittent | ||||||||||||
psi | bar | psi | bar | cu in | ml | cu in/min | l/min | ||||||
125 psi/8.6 bar |
Single |

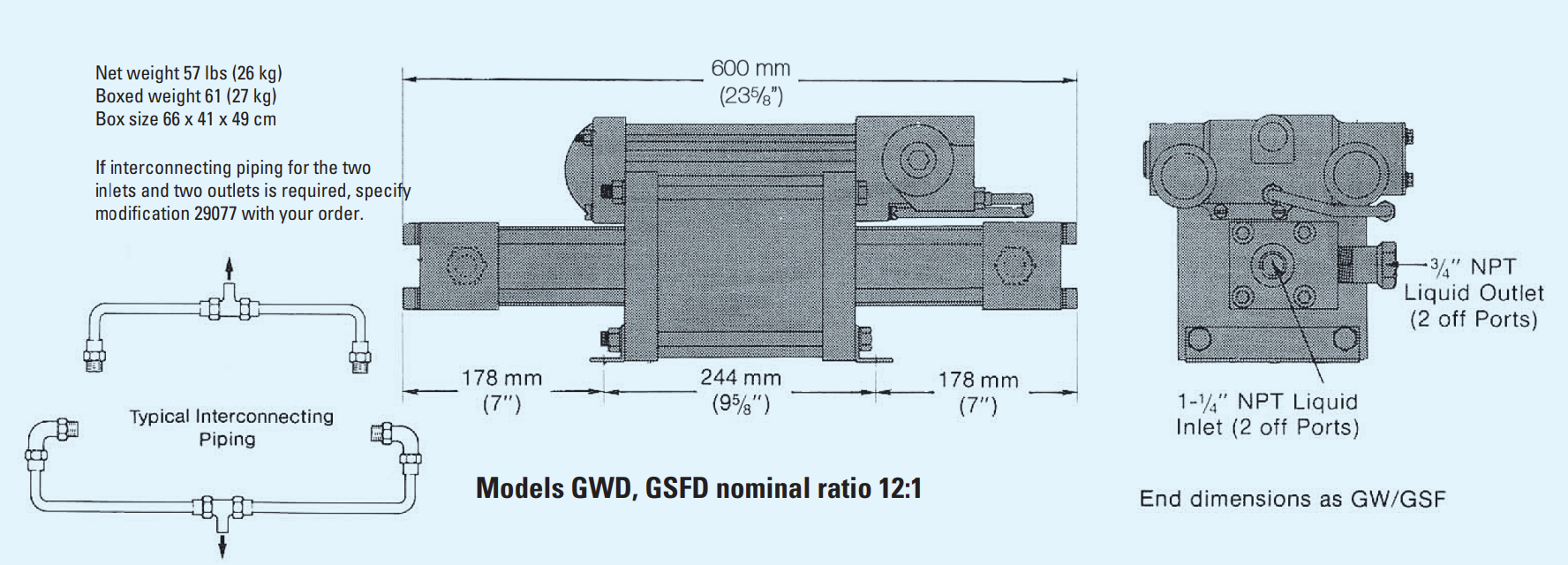

6 hp | GWD, GSFD, DGSFD, DGSTVD | -12 | 14.8 | 1850 | 128 | 4000 | 276 | 15.9 | 260 | 5009 | 82.1 |
GWD, GSFD, DGSFD, DGSTVD | -35 | 40.3 | 4375 | 302 | 4375 | 302 | 6.0 | 98 | 1890 | 31.0 | |||
MODEL | WETTED MATERIALS | NON METALLICS | |
|---|---|---|---|
PUMP SECTION | PLUNGERS | ||

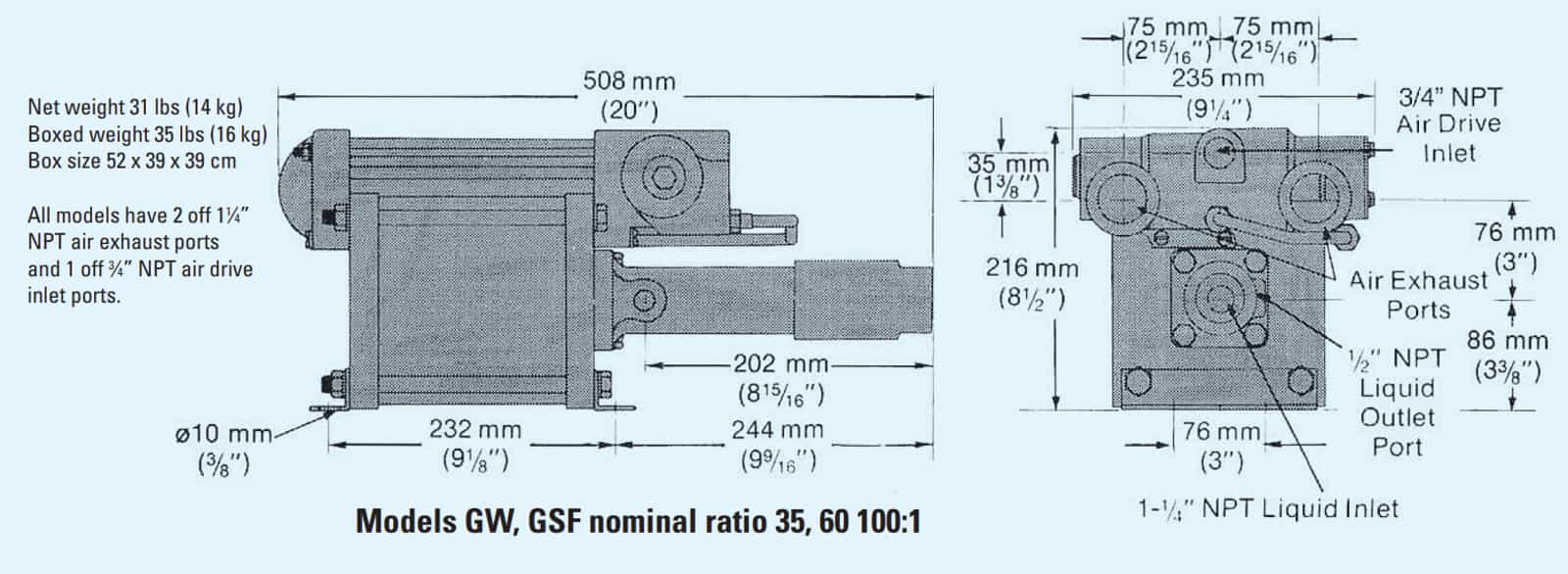

GW | Nickel Plated Steel, SS & Bronze | Hard chrome plated 15.5PH SS | Urethane, Buna N, PTFE |
GSF | All SS & Bronze | Hard chrome plated 15.5PH SS | UHMWPE, Viton, PTFE, Ryton |

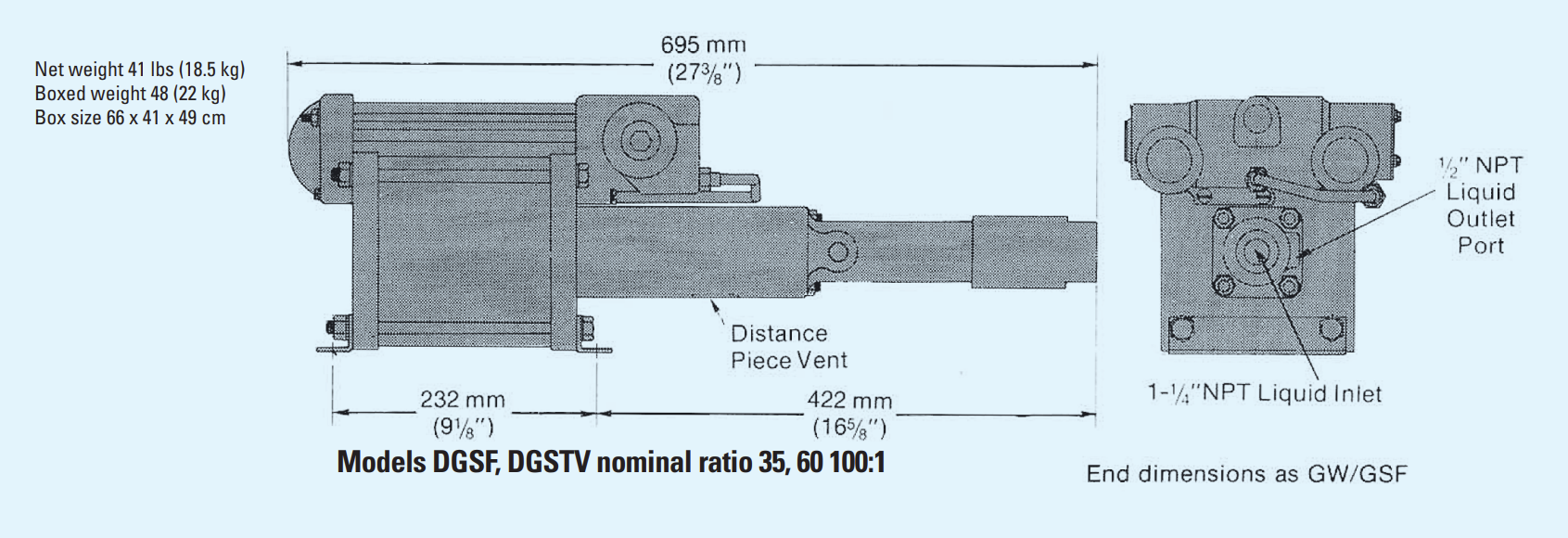

DGSF | Separation- All SS & Bronze | Hard chrome plated 15.5PH SS | UHMWPE, Viton, PTFE, Ryton |
DGSTV | Separation- All SS & Bronze | Hard chrome plated 15.5PH SS | Viton, PTFE, Ryton |
GWD | Nickel Plated Steel & SS | 15.5PH SS Hard chrome plate optional | Urethane, Buna N, PTFE |
GSFD | All SS & Bronze | 15.5PH SS Hard chrome plate optional | UHMWPE, Buena N, PTFE, Ryton |
DGFD | Separation- Nickel Plated Steel & SS | 15.5PH SS Hard chrome plate optional | UHMWPE, Viton, PTFE, Ryton |

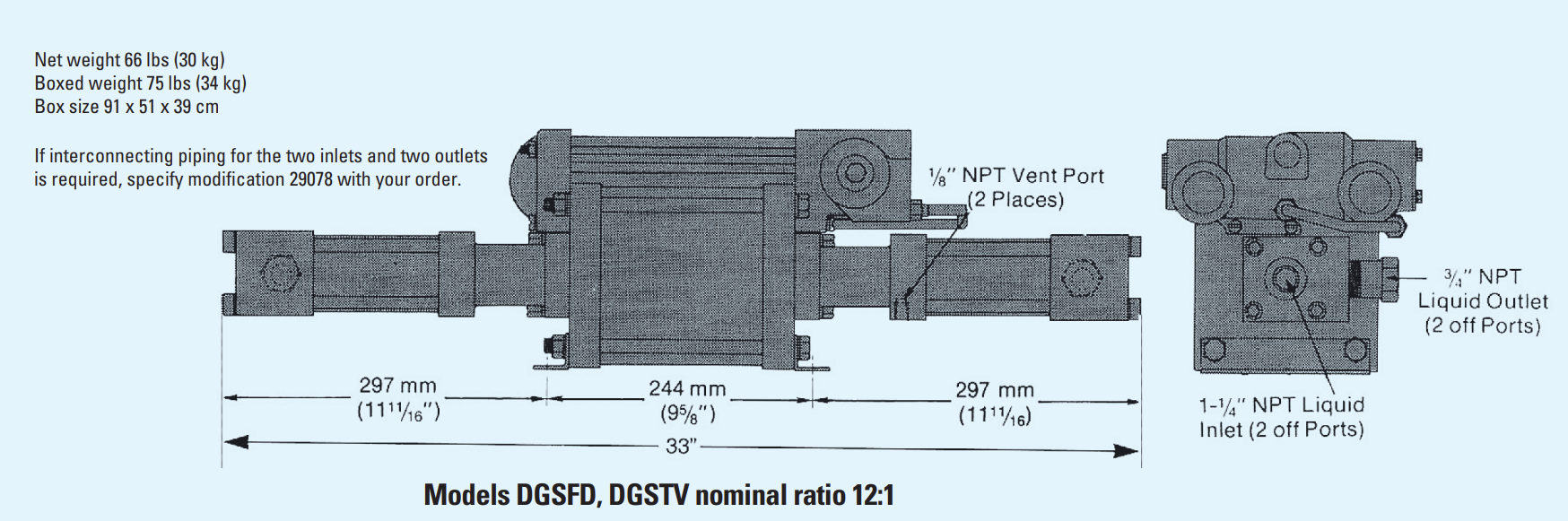

DGSFD | Separation- All SS & Bronze | 15.5PH SS Hard chrome plate optional | UHMWPE, Viton, PTFE, Ryton |
DGSTVD | Separation- All SS & Bronze | 17.4PH SS Hard chrome plate optional | PTFE, Viton |
Configure seal kits or search parts in seconds

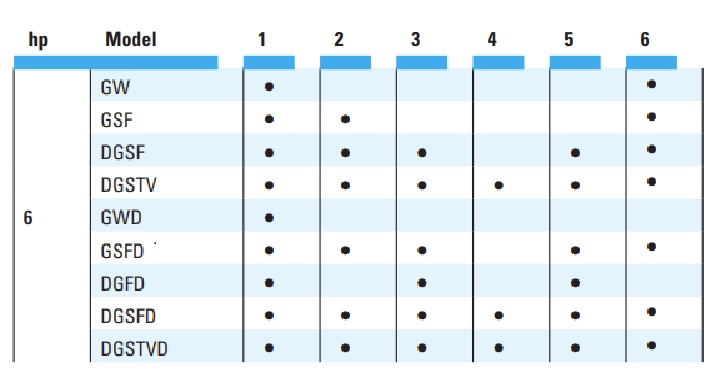

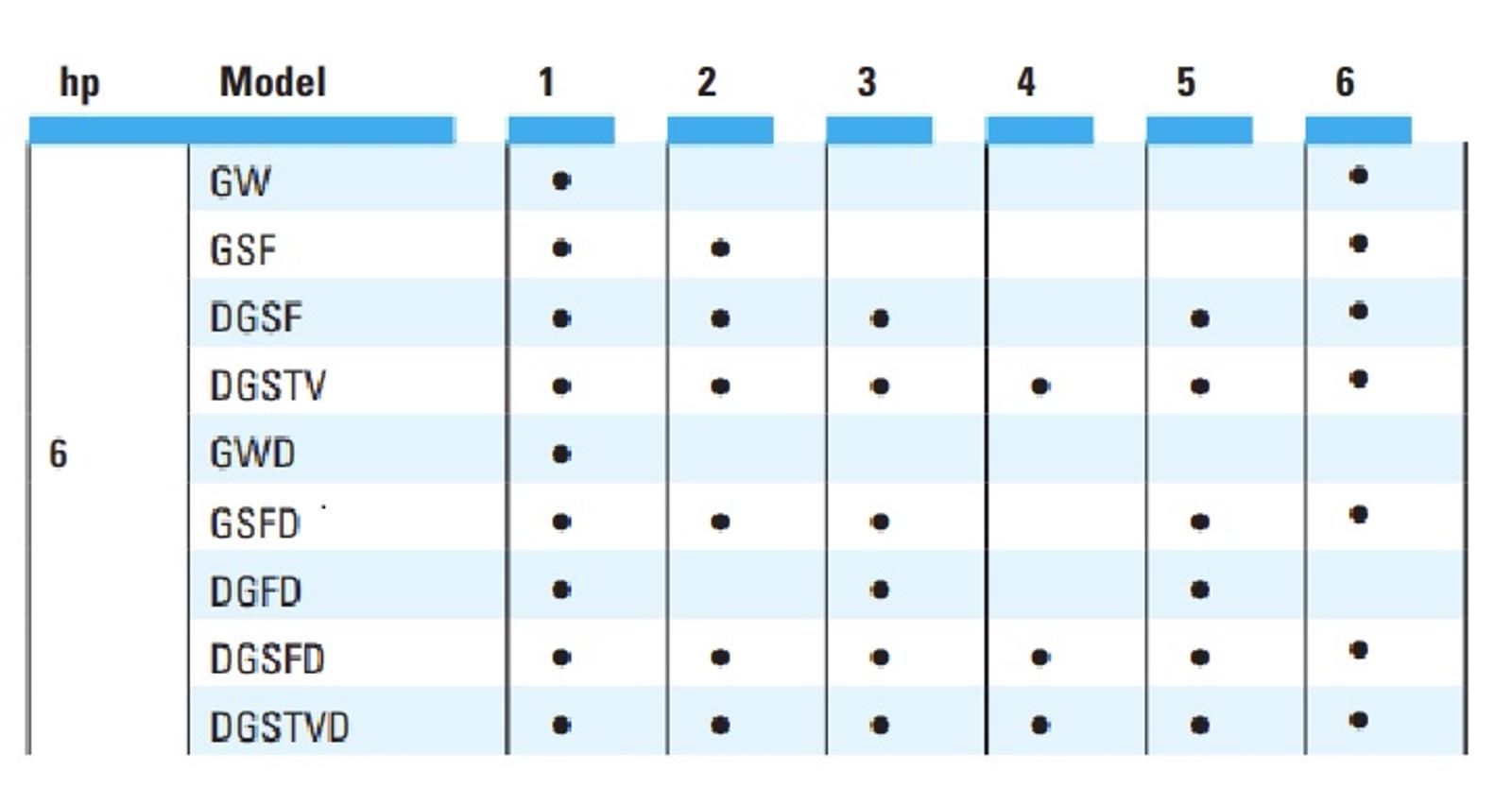

To assist in easier pump selection, we have classified various popular liquids in groups and assigned to each group a service code. These service code numbers are featured in the chart to the right and are designated for each pump series. Seals and other wetted materials can be supplied to suit your preferred liquid. For advice, please contact our technical services personnel at 818-843-4000.
Service Codes
1 - Petroleum-based oils, kerosene, ethylene glycol, water with 5% soluble oil.
2 - Plain water, diesel fuel.
3 - Most phosphate ester-based hydraulic e.g. Pydraul, Lindol, Cellulube, Fyrquel, and Houghtosafe 1120 and petroleum-based solvents compatible with UHMWPE (Ultra-high Molecular Weight Polyethylene) dynamic seals and Viton static seals.
4 - Petroleum-based solvents, e.g. aromatic hydrocarbons (benzene, toluene, xylene, hylene, etc.); chlorinated solvents (trichlorethylene, carbon tetrachloride, chlorobenzine, etc.); mercaptans, Dowtherm A, solvents etc.); Dowtherm E, plus all of Group 3 and some mildly corrosive acids compatible with wetted materials. See note 5A for service with methyl-ethyl-ketone, methyl acetone, diacetone, alcohol and freon 22.
5 - Skydrol and Aerosafe hydraulic acetone and some alcohols (ethyl, methyl, and isopropyl). 5A. Also suitable for these if Viton static seals are replaced with EPR; specify number 51331 (no extra charge); e.g., 51331-MDTV-5. Most phosphate ester-based solidify at approximately 30000 psi.
6 - Deionized water; demineralized water.
To pick the best option for your application, reach out to us
