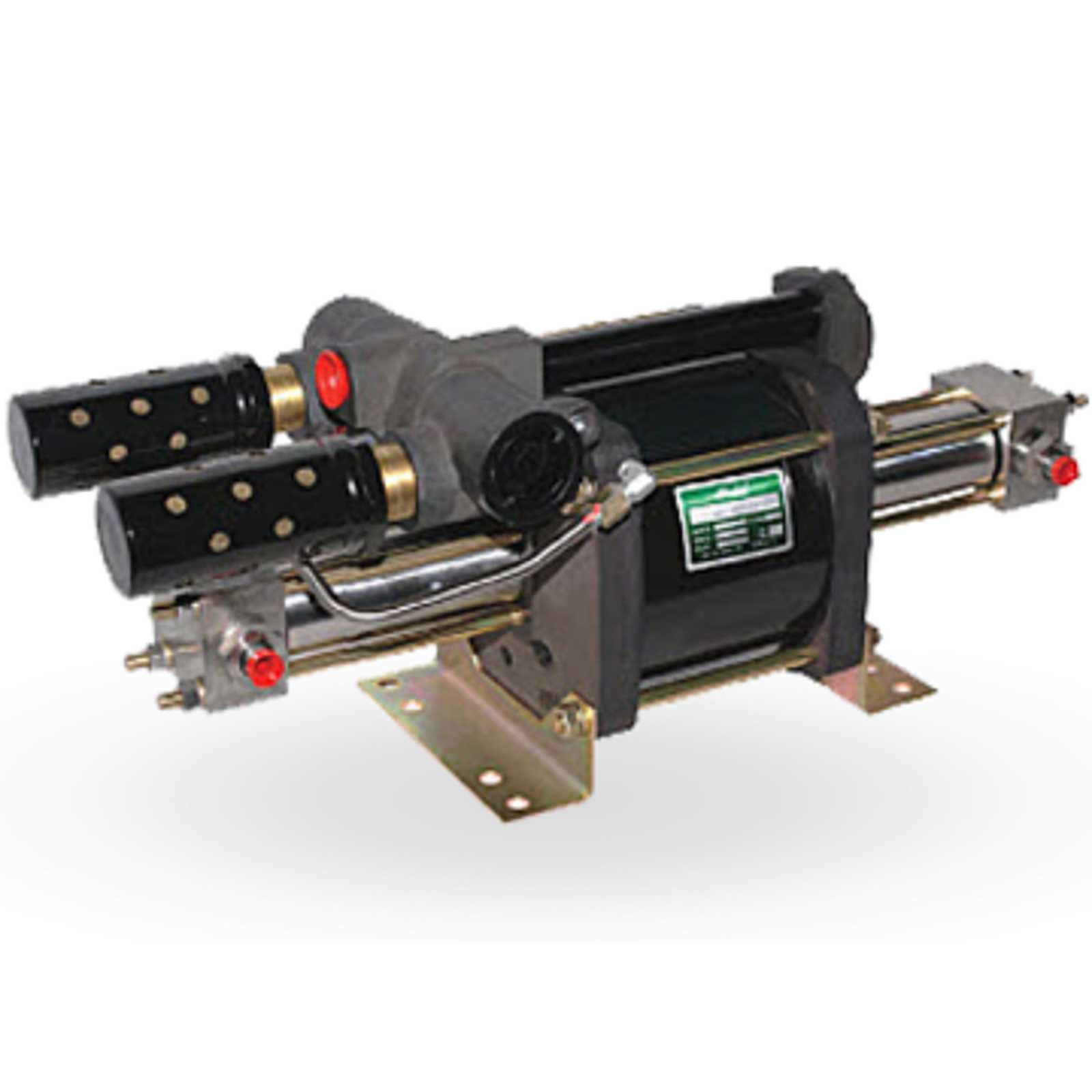

The 8 hp model builds on the 6 hp platform, extending performance into higher sustained flow rates and broader media compatibility. It is intended for demanding industrial systems where flow stability, throughput, and media flexibility are critical over long operating cycles.
- Choice of 9 models, 8 ratios, 9 possible combinations
- Pressures to 30,000 psi (2068 bar)
- Flow rates to 11.5 gpm (44 l/min)
- All hydraulic fluids, water (plain or DI), solvents, liquefied gases
- Choice of wetted materials
- Single air head – double acting
- Drive pressure 3 to 125 psi (.2 to 9 bar)
Key Features
- Choice of 9 models, 8 ratios, 9 possible combinations
- Pressures to 30,000 psi (2068 bar)
- Flow rates to 11.5 gpm (44 l/min)
- All hydraulic fluids, water (plain or DI), solvents, liquefied gases
- Choice of wetted materials
- Single air head – double acting
- Drive pressure 3 to 125 psi (.2 to 9 bar)
Max Air |
Air Head |
Power | Pump Model Code | Ratio Dash no. | Actual Area Ratio | Maximum Rated Output Pressure | Displacement/Cycle | Maximum Flow | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Continuous | Intermittent | ||||||||||||
psi | bar | psi | bar | cu in | ml | cu in/min | l/min | ||||||
125 psi/8.6 bar |
Single |
8 hp | 8SFD, 8DSFD, 8DSTVD | -25 | 27.5 | 3575 | 246 | 4000 | 276 | 14.0 | 229 | 2660 | 43.5 |

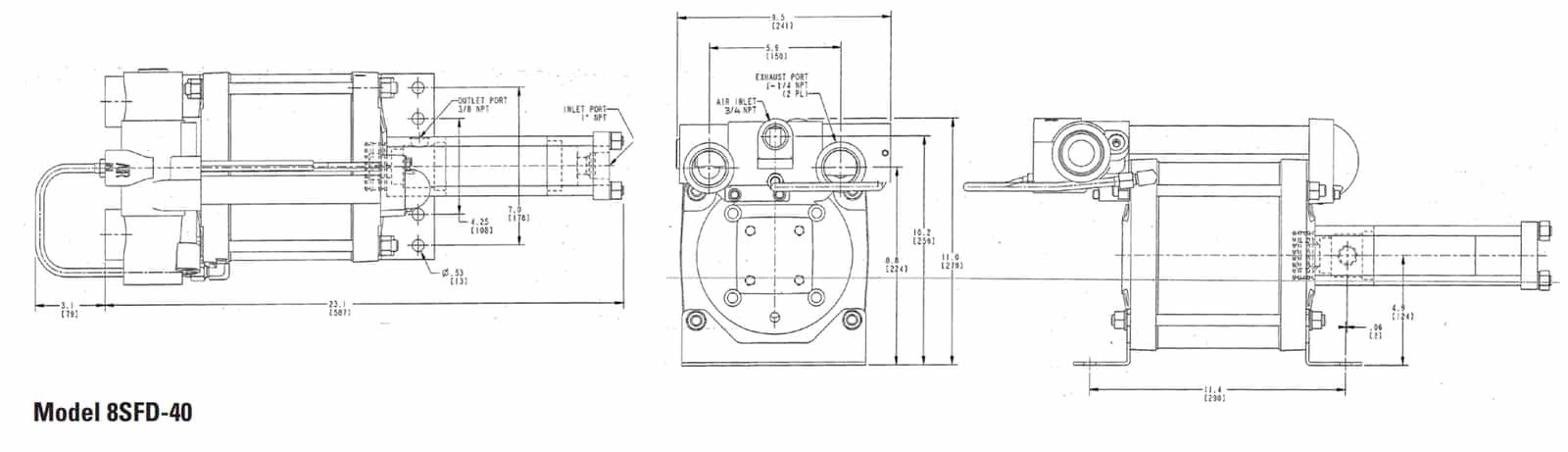

8SFD | -40 | 43.5 | 6000 | 414 | 6000 | 414 | 8.90 | 145 | 1691 | 28.0 | |||
8DSFD | -100 | 112 | 10000 | 690 | 10000 | 690 | 3.52 | 58 | 669 | 11.0 | |||

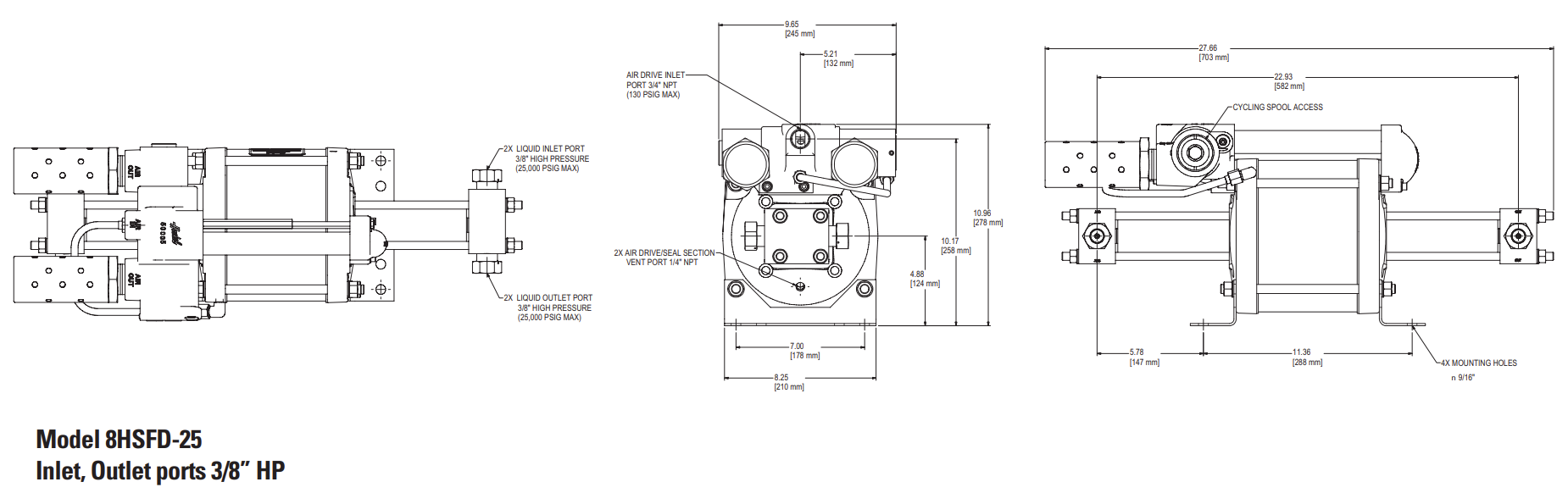

8HSFD | -225 | 253 | 25000 | 1724 | 25000 | 1724 | 1.56 | 26 | 296 | 5.0 | |||

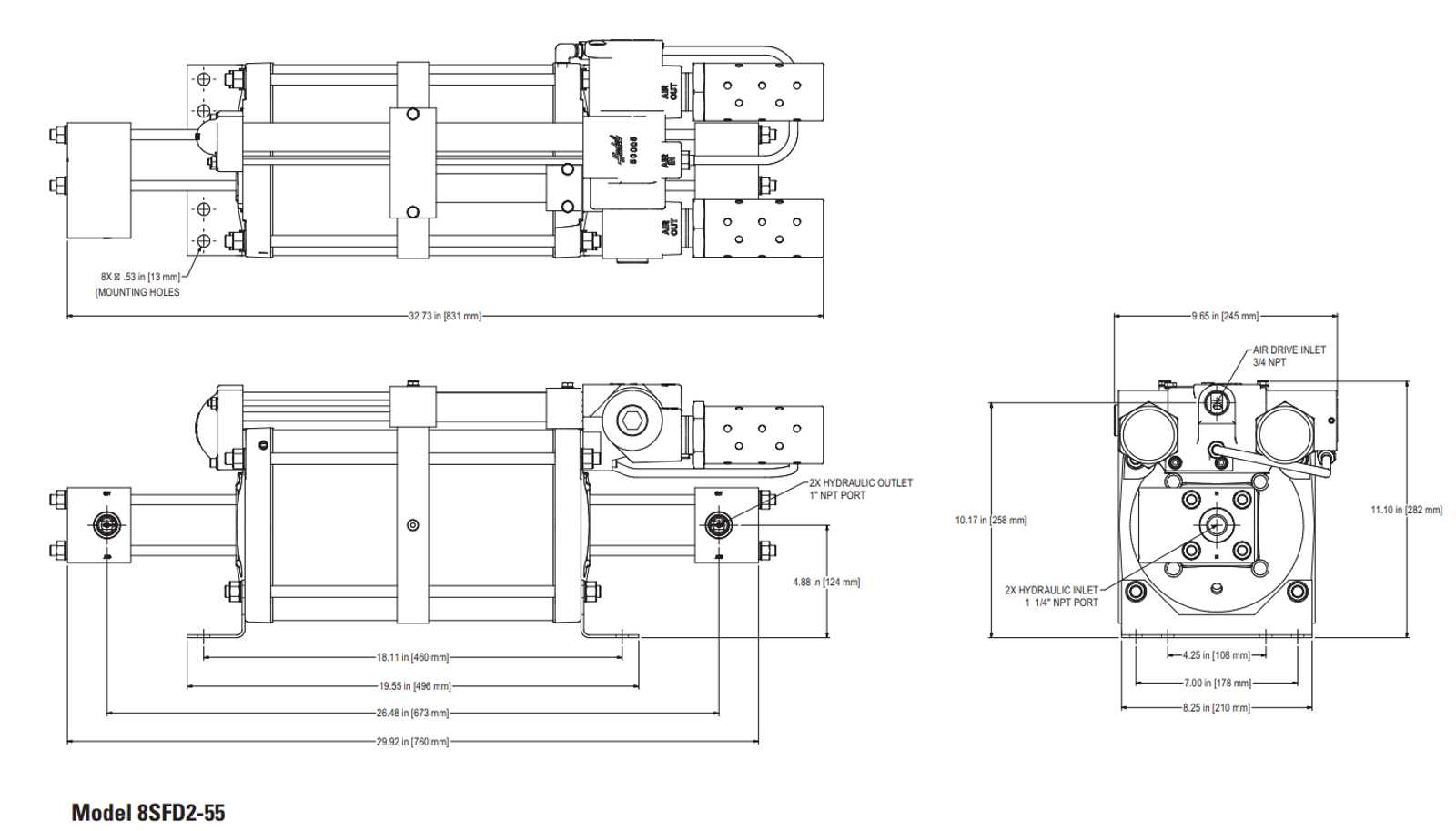

8SFD2 | -55 | 55 | 5500 | 379 | 7200 | 497 | 14.14 | 232 | 1900 | 31.1 | |||
MODEL | WETTED MATERIALS | NON METALLICS | |
|---|---|---|---|
PUMP SECTION | PLUNGERS | ||
8SFD | All SS & Bronze* | Hard chrome plated 15.5PH SS | UHMWPE, Viton, PTFE, Ryton |
8DSFD | Separation- All SS & Bronze | 15.5PH SS Hard chrome | UHMWPE, Viton, PTFE, Ryton |
8DTVD | Separation- All SS & Bronze | 15.5PH SS Hard chrome | PTFE, Viton |
8HSFD | All SS & Bronze* | 17.4PH SS | UHMWPE, Viton, PTFE, Ryton |
8DSTVD | All SS & Bronze* | 15-5 PH SS Hard chrome | Viton, PTFE |
8SFD2 | All SS & Bronze* | 15-5 PH SS Hard chrome | PTFE, Viton, UHMWPE |
Configure seal kits or search parts in seconds

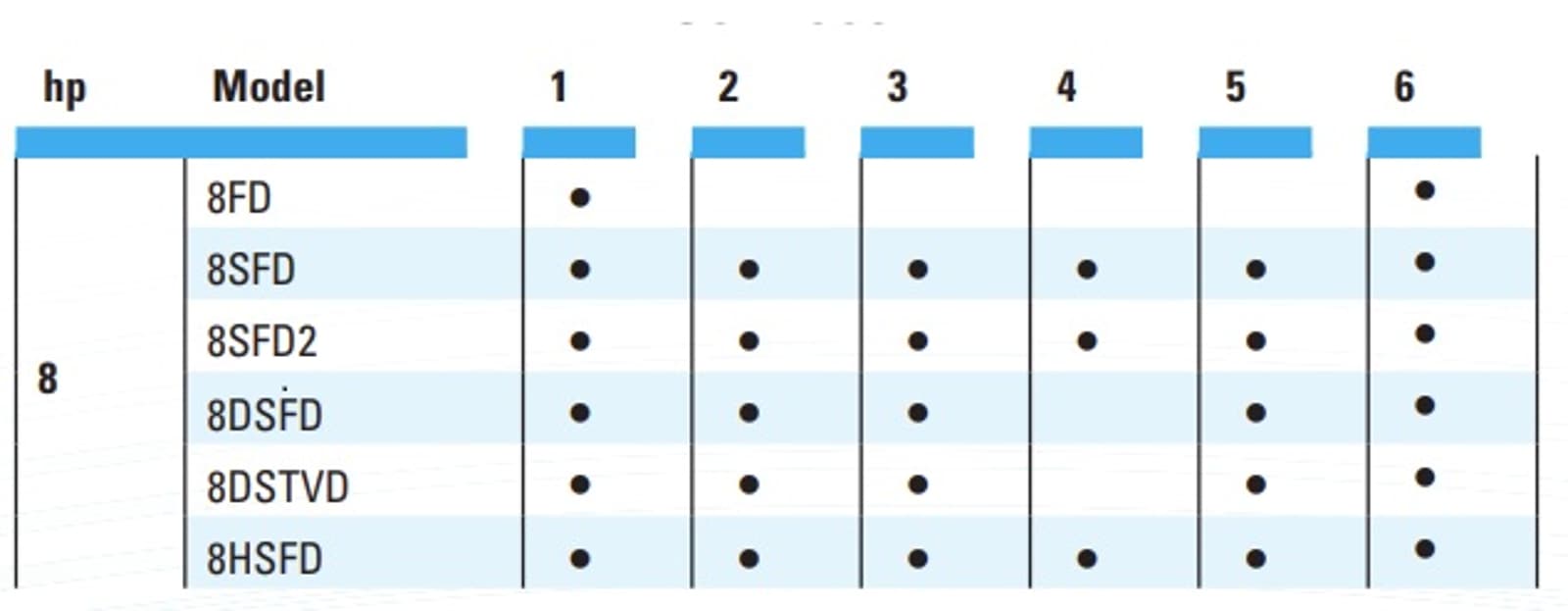

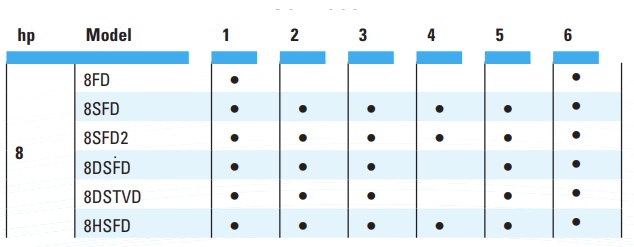

To assist in easier pump selection, we have classified various popular liquids in groups and assigned to each group a service code. These service code numbers are featured in the chart to the right and are designated for each pump series. Seals and other wetted materials can be supplied to suit your preferred liquid. For advice, please contact our technical services personnel at 818-843-4000.
Service Codes
1 - Petroleum-based oils, kerosene, ethylene glycol, water with 5% soluble oil.
2 - Plain water, diesel fuel.
3 - Most phosphate ester-based hydraulic e.g. Pydraul, Lindol, Cellulube, Fyrquel, and Houghtosafe 1120 and petroleum-based solvents compatible with UHMWPE (Ultra-high Molecular Weight Polyethylene) dynamic seals and Viton static seals.
4 - Petroleum-based solvents, e.g. aromatic hydrocarbons (benzene, toluene, xylene, hylene, etc.); chlorinated solvents (trichlorethylene, carbon tetrachloride, chlorobenzine, etc.); mercaptans, Dowtherm A, solvents etc.); Dowtherm E, plus all of Group 3 and some mildly corrosive acids compatible with wetted materials. See note 5A for service with methyl-ethyl-ketone, methyl acetone, diacetone, alcohol and freon 22.
5 - Skydrol and Aerosafe hydraulic acetone and some alcohols (ethyl, methyl, and isopropyl). 5A. Also suitable for these if Viton static seals are replaced with EPR; specify number 51331 (no extra charge); e.g., 51331-MDTV-5. Most phosphate ester-based solidify at approximately 30000 psi.
6 - Deionized water; demineralized water.
