High Pressure Equipment for 150,000 PSI

High Pressure Equipment Coned and Threaded for Service from 30,000 psi (2,070 bar) to 150,000 psi (10,340 bar).

Materials of Construction

Standard materials of construction include 316 cold-worked stainless steel, 17-4PH, Ampco 45, and glass-filled PTFE. All BuTech equipment may also be produced in any machinable metal. Some of the more common exotic materials used are:

  • Hastelloy™
  • Inconel™
  • Titanium
  • Monel 400™
Download Catalog
Configuration Tool



Catalog

Number

Stem

Style



Connection

Orifice

Cv

A

B

C

D

E

F

G

H

I

J



Thk.



Fig.

150V51V

150V51R

Vee

Reg

5/16" H/P

Tube

0.094"

(2.4)

0.27

3.00"

(76.2)

1.50"

(38.1)

2.50"

(63.5)

5.66"

(143.8)

1.75"

(44.5)

1.44"

(36.6)

0.87"

(22.1)

0.50"

(12.7)

3.00"

(76.2)

0.34"

(8.6)

1.50"

(38.1)

1

150V52V

150V52R

Vee

Reg

5/16" H/P

Tube

0.094"

(2.4)

0.40

3.00"

(76.2)

1.50"

(38.1)

2.88"

(73.2)

6.27"

(159.3)

---

1.44"

(36.6)

0.87"

(22.1)

0.50"

(12.7)

3.00"

(76.2)

0.34"

(8.6)

1.50"

(38.1)

2

150V53V

150V53R

Vee

Reg

5/16" H/P

Tube

0.094"

(2.4)

0.40

3.00"

(76.2)

1.50"

(38.1)

3.19"

(81.0)

6.35"

(161.3)

1.75"

(44.5)

1.44"

(36.6)

0.87"

(22.1)

0.50"

(12.7)

3.00"

(76.2)

0.34"

(8.6)

1.50"

(38.1)

3



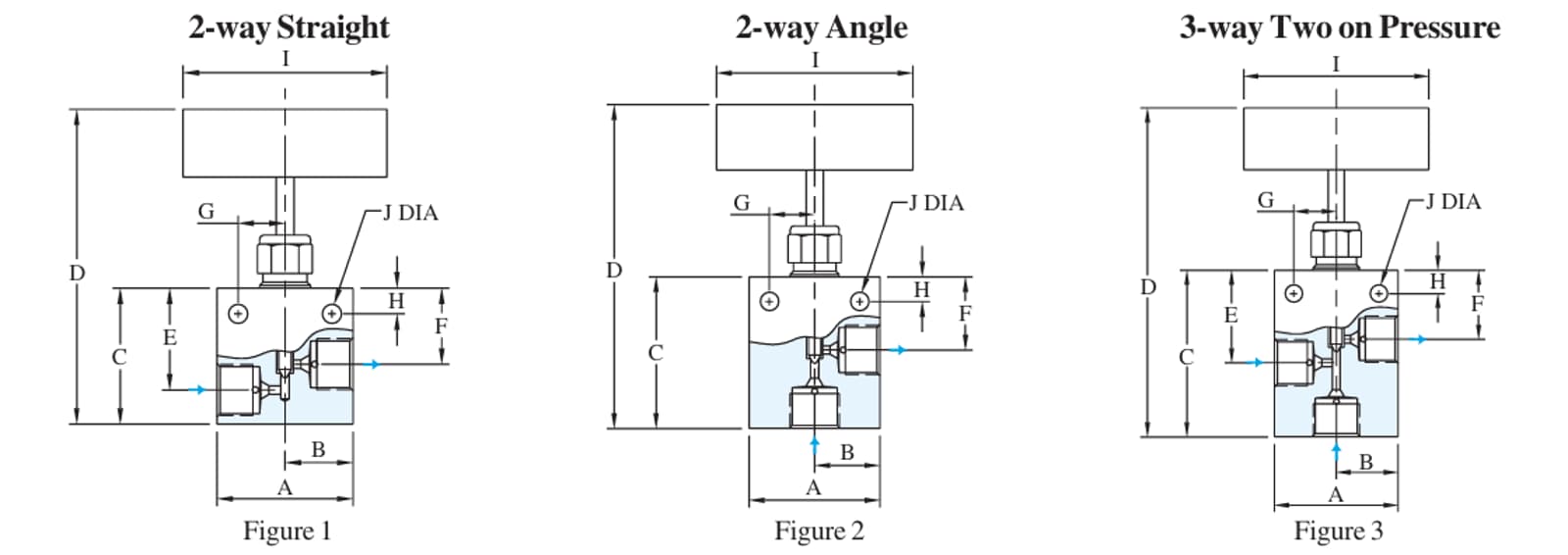

Equipment For 150,000 PSI

Configure repair kits or search parts in seconds

Repair Kit SelectorPart Number Search

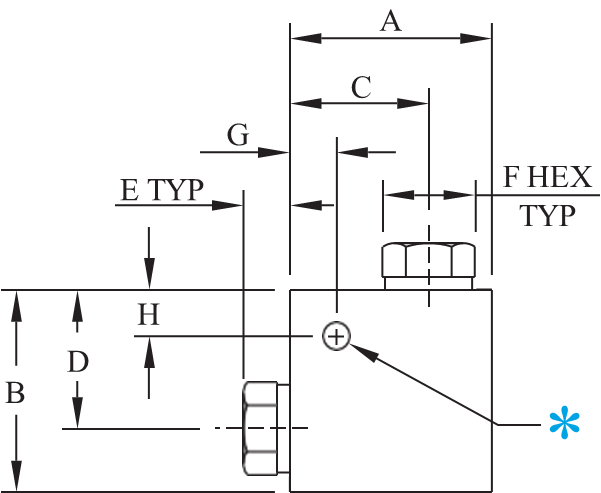

ELBOW



Catalog

Number

Connection

Port

MAWP

A

B

C

D

E

F

Block

Thickness

Mounting Holes*

G

H

Dia.

150L5

5/16" H/P

Tube

0.062"

(1.6)

150,000 PSI

10340 bar

2.25"

(57.2)

2.00"

(50.8)

1.75"

(44.5)

1.38"

(35.1)

0.62"

(15.7)

0.75"

(19.1)

1.50"

(38.1)

0.50"

(12.7)

0.50"

(12.7)

0.34"

(8.6)

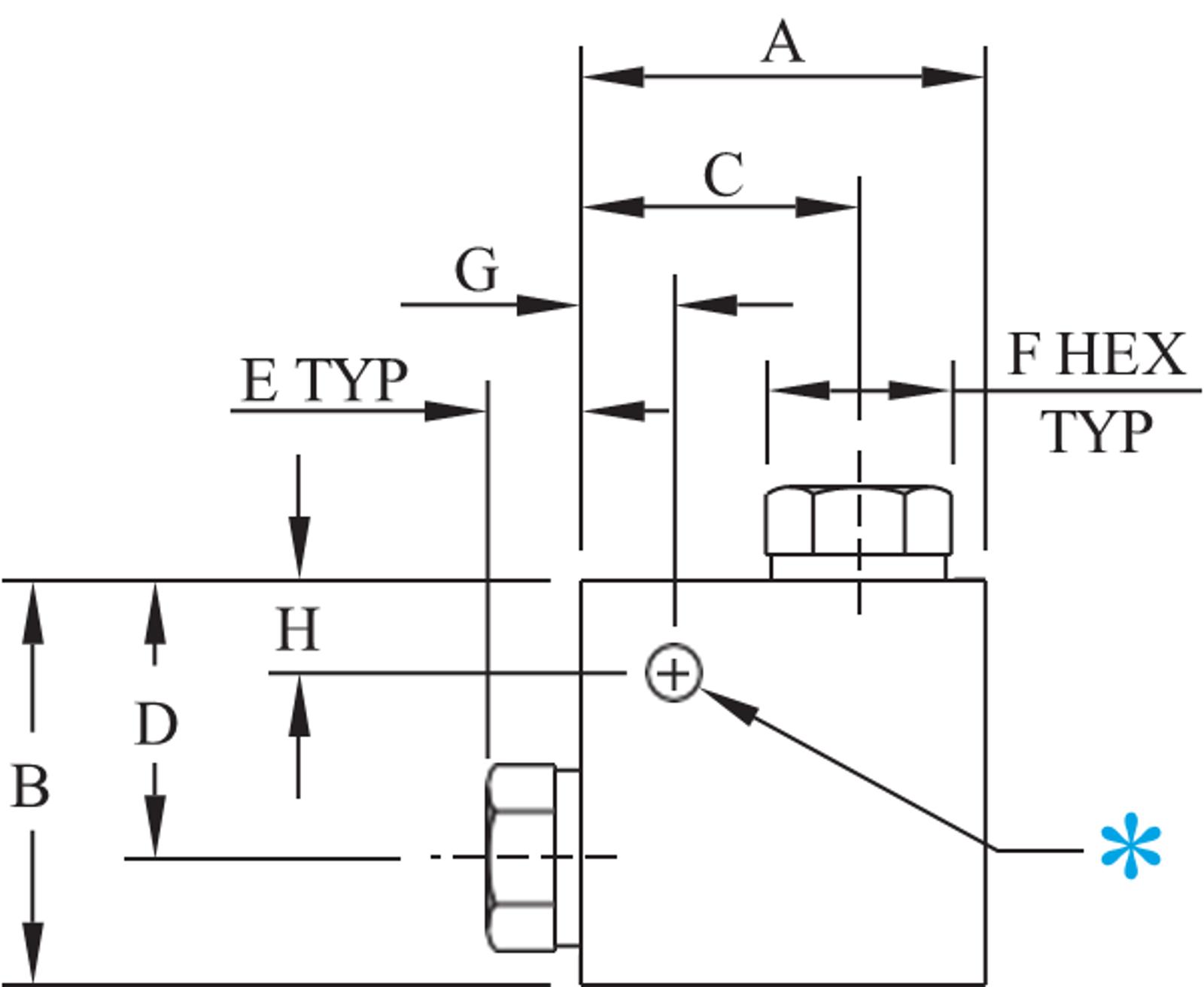

Elbow 150000 PSI

TEE



Catalog

Number

Connection

Port

MAWP

A

B

C

D

E

F

Block

Thickness

Mounting Holes*

G

H

Dia.

150T5

5/16" H/P

Tube

0.062"

(1.6)

150,000 PSI

10340 bar

3.00"

(76.2)

2.25"

(57.2)

1.50"

(38.1)

1.62"

(41.1)

0.62"

(15.7)

0.75"

(19.1)

1.50"

(38.1)

0.50"

(12.7)

0.50"

(12.7)

0.34"

(8.6)

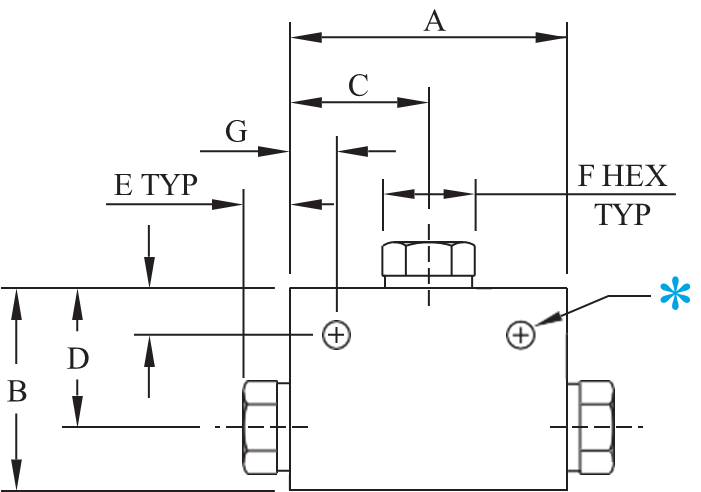

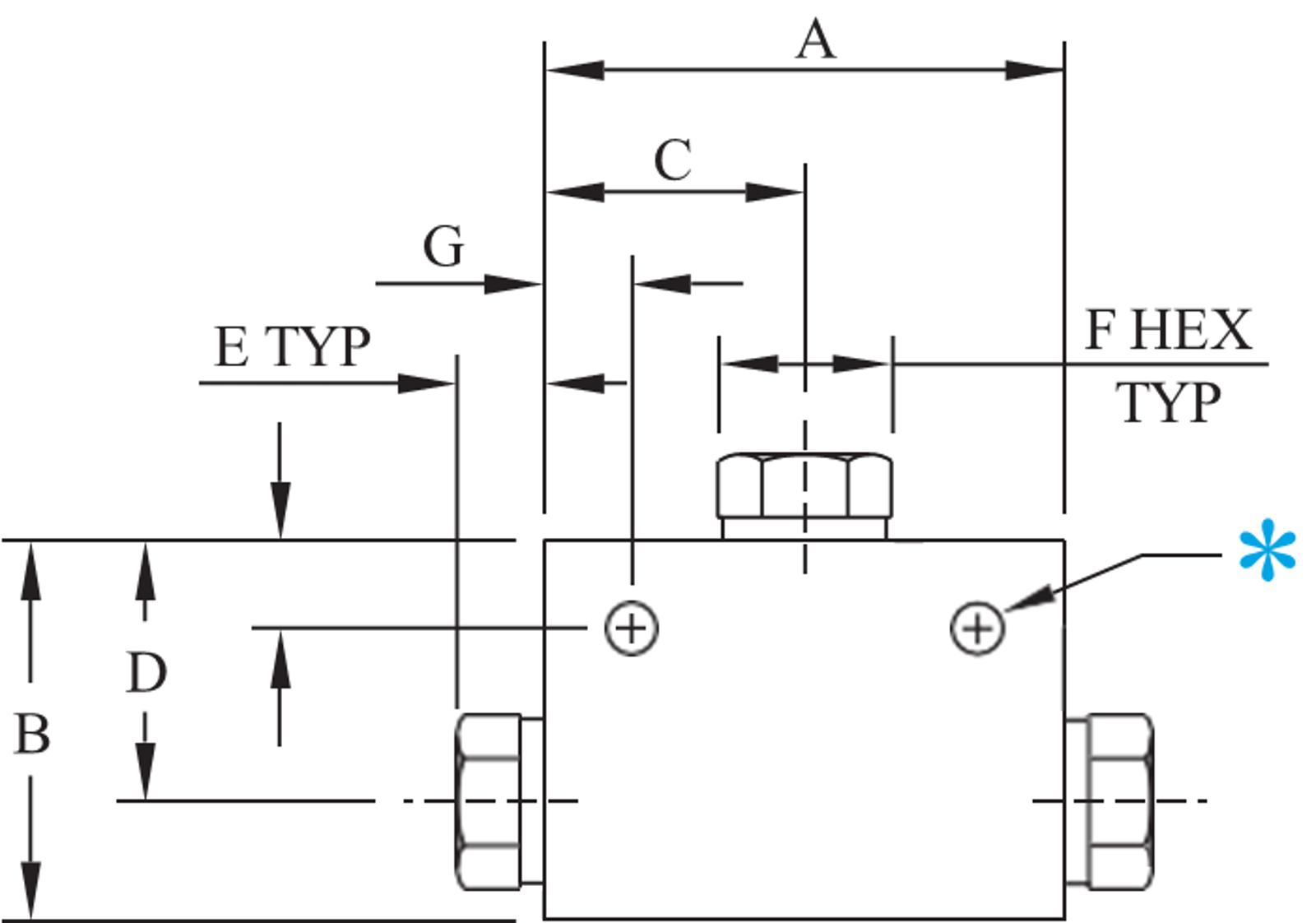

Tee 150000 PSI

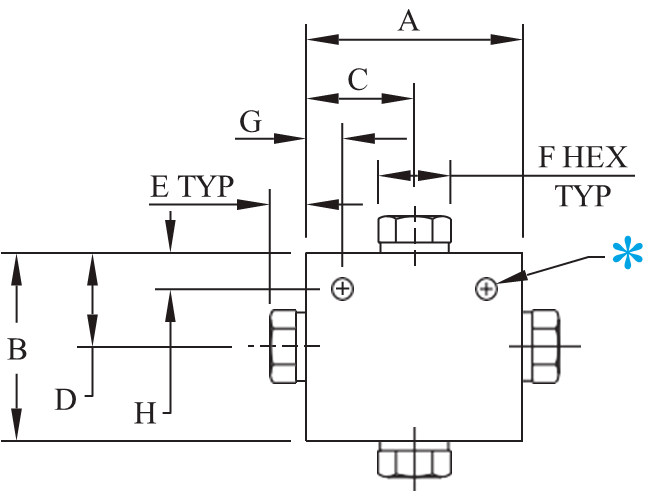

CROSS



Catalog

Number

Connection

Port

MAWP

A

B

C

D

E

F

Block

Thickness

Mounting Holes*

G

H

Dia.

150X5

5/16" H/P

Tube

0.062"

(1.6)

150,000 PSI

10340 bar

3.00"

(76.2)

3.00"

(76.2)

1.50"

(38.1)

1.50"

(38.1)

0.62"

(15.7)

0.75"

(19.1)

1.50"

(38.1)

0.50"

(12.7)

0.50"

(12.7)

0.34"

(8.6)

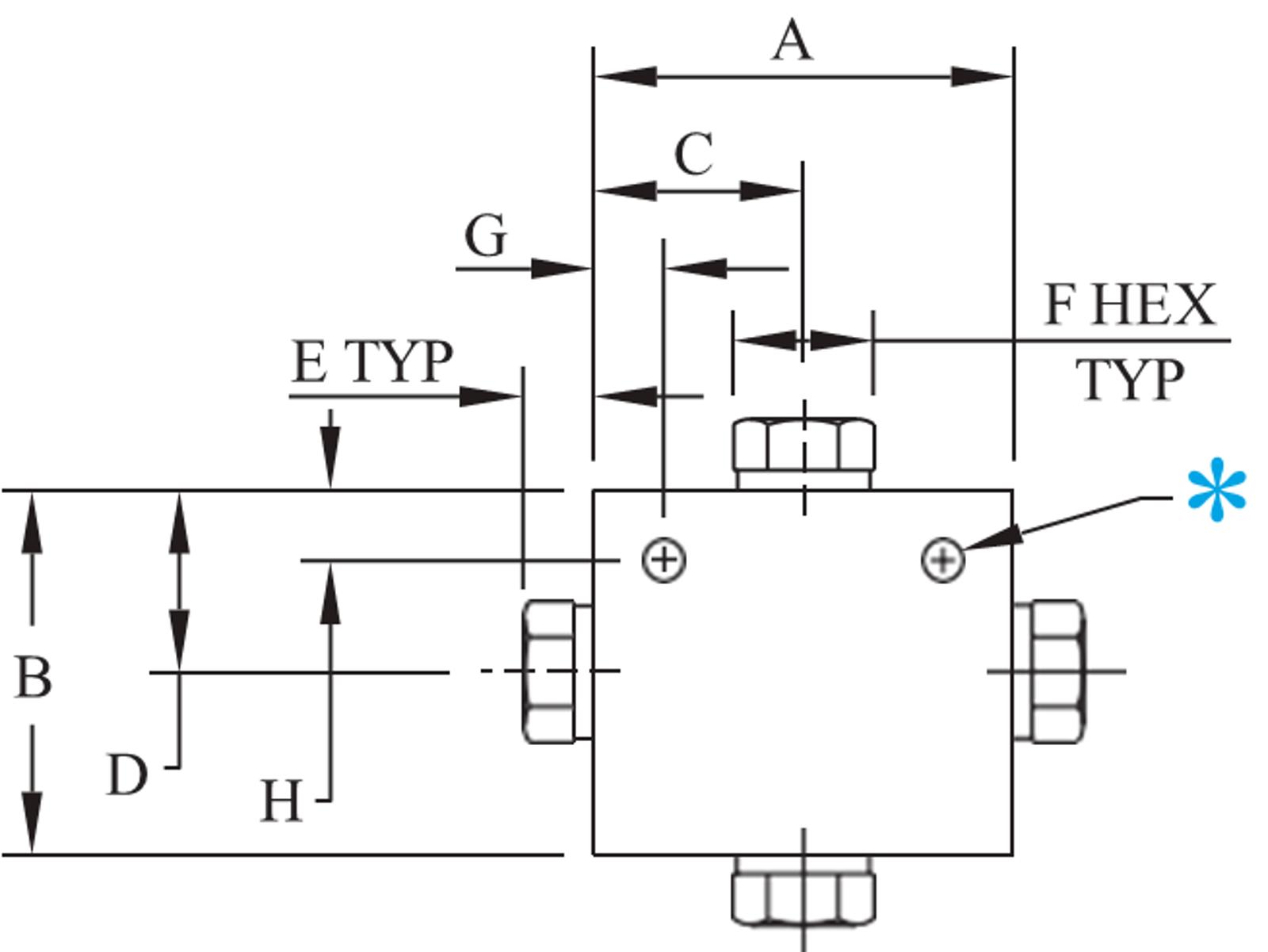

Cross 150000 PSI

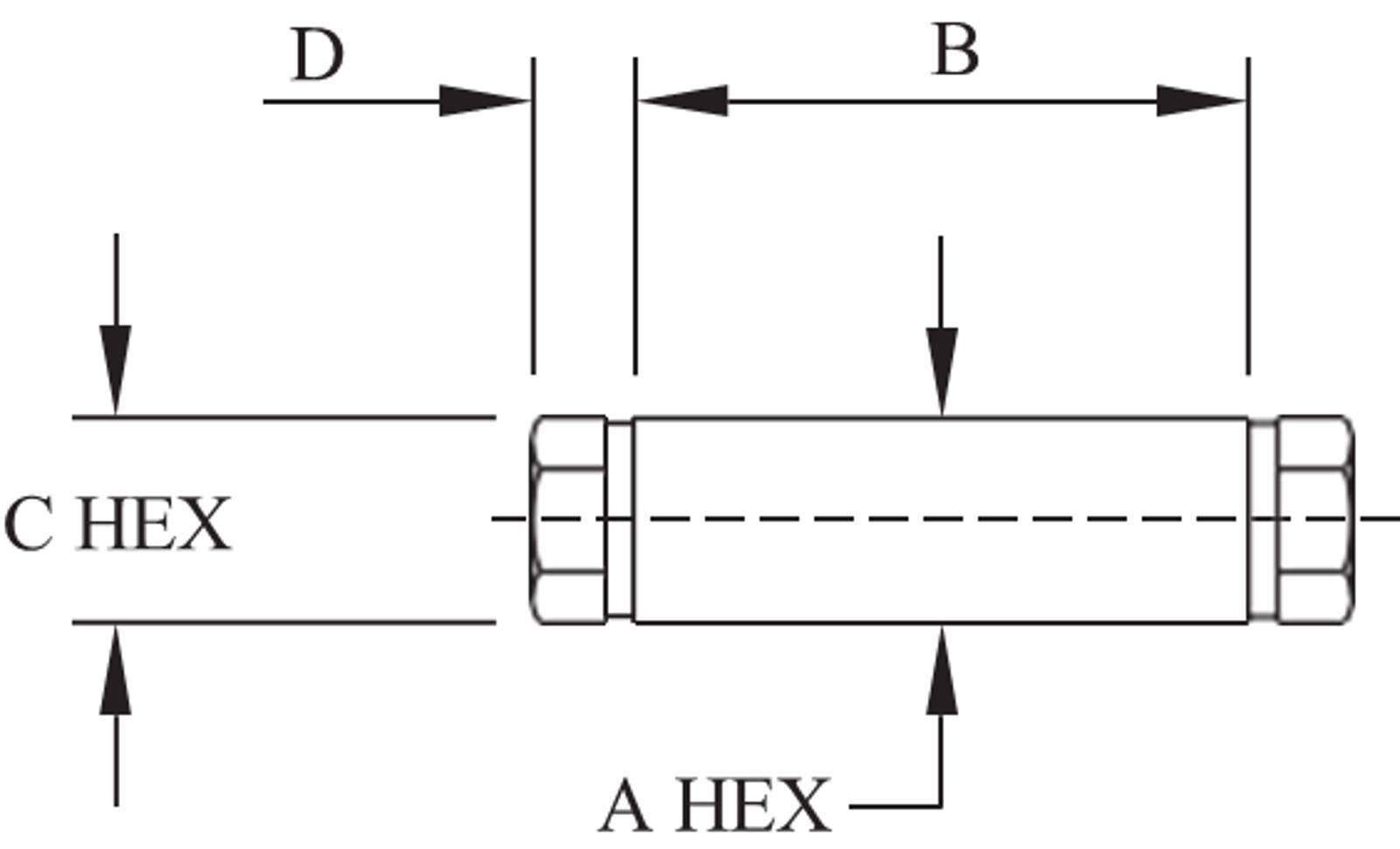

Coupling



Catalog Number

Connection

Port

MAWP

A

B

C

D

150F5

5/16" H/P

Tube

0.062"

(1.6)

150,000 PSI

10340 bar

1.12"

(28.4)

2.62"

(66.5)

0.75"

(19.1)

0.62"

(15.7)



Coupling 150000 PSI

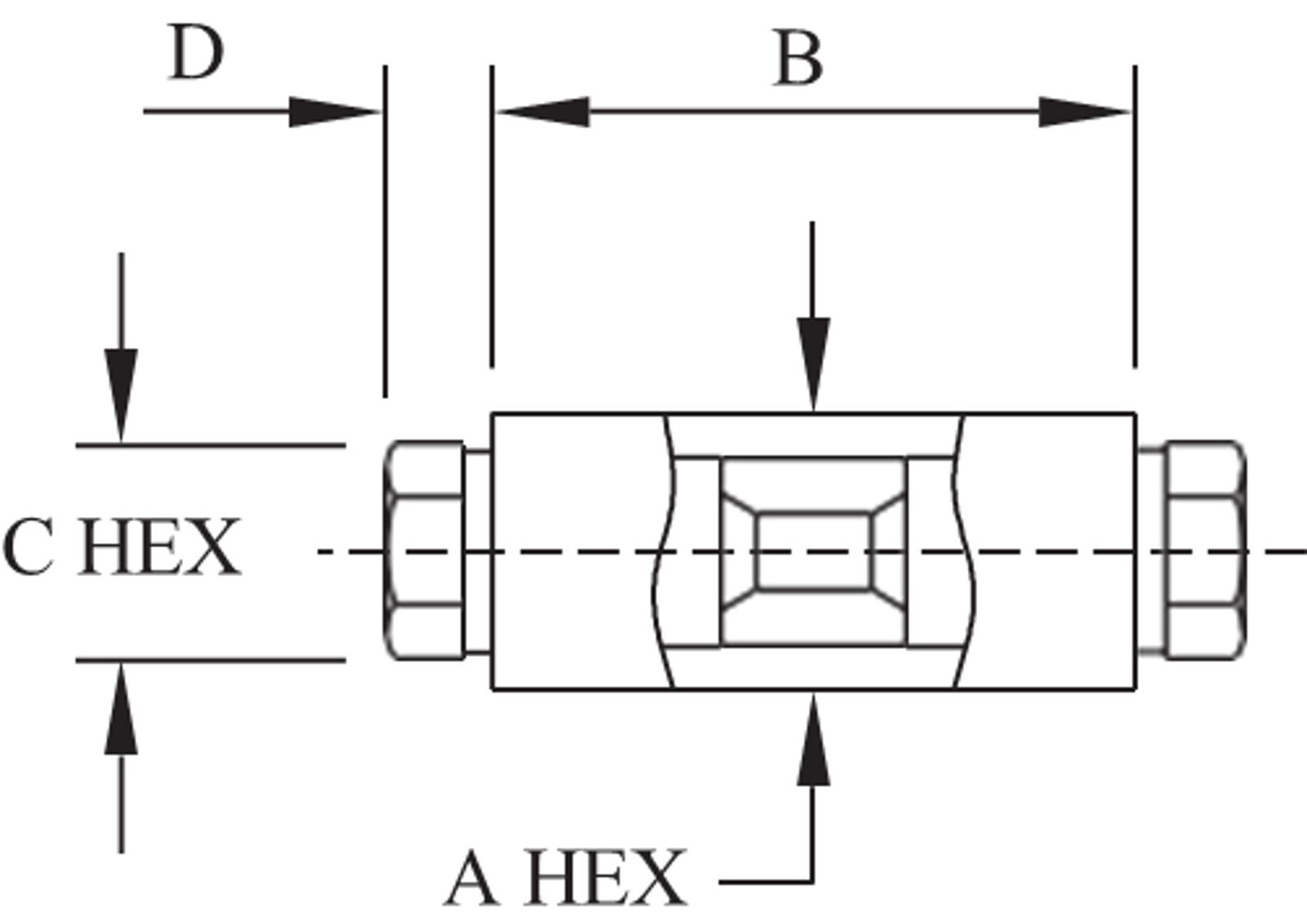

Replaceable Seat Coupling

Catalog

Number

Connection

Port

MAWP

A



B

C

D

150UF5

5/16" H/P

Tube

0.062"

(1.6)

150,000 PSI

10340 bar

1.12"

(28.4)



2.62"

(66.5)

0.75"

(19.1)

0.62"

(15.7)



Replaceable Seat Coupling 150000 PSI

Bulkhead



Catalog

Number

Connection

Port

MAWP

A

B

C

D

Max Panel

Thickness

Panel

Hole

150BF5

5/16" H/P

Tube

0.062"

(1.6)

150,000 PSI

10340 bar

1.75"

(44.5)

3.25"

(82.6)

0.75"

(19.1)

0.62"

(15.7)

0.50"

(12.7)

1.44"

(36.6)

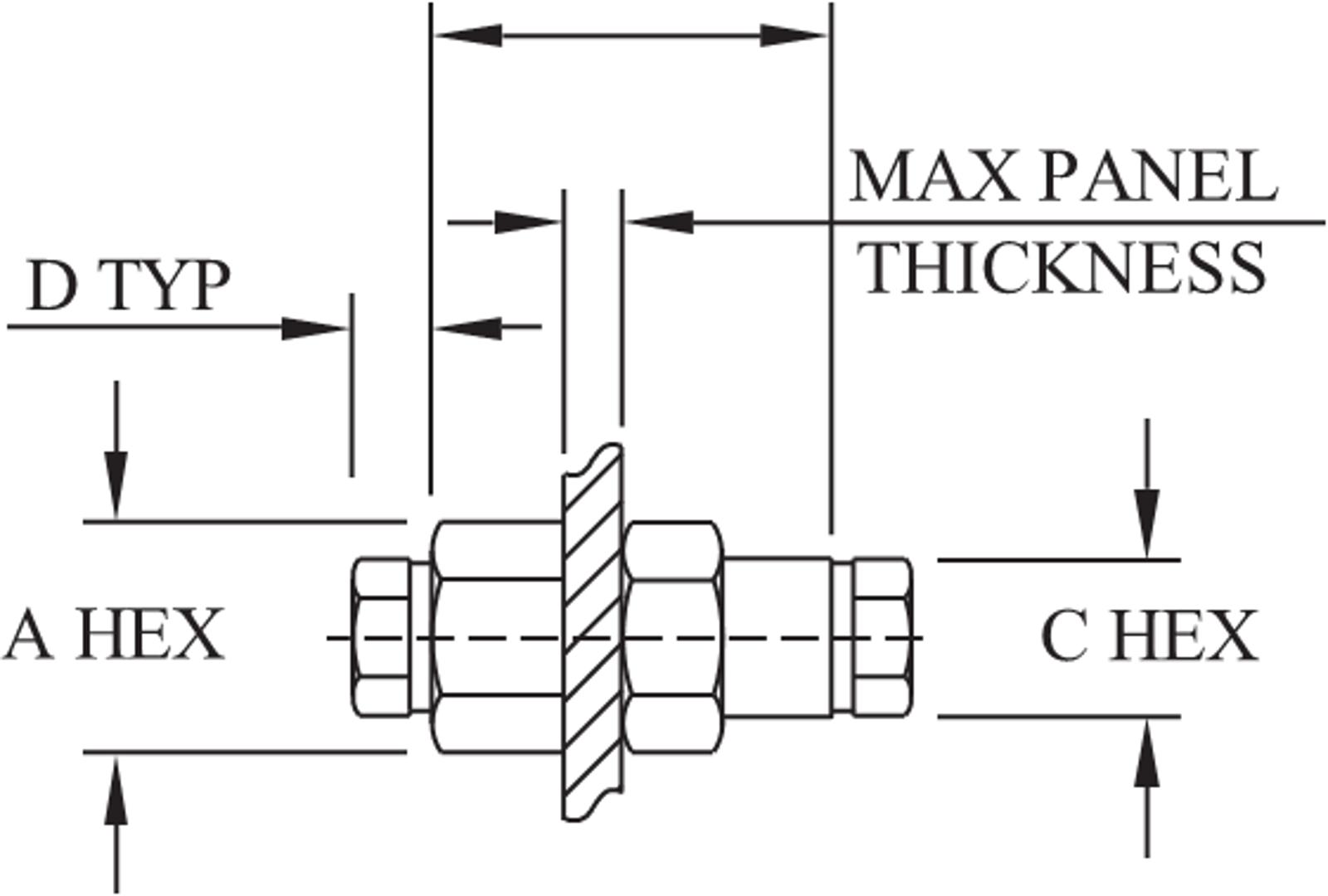

Bulkhead 150000 PSI

All BuTech valves and fittings are supplied with glands and collars. To order these components separately, use catalog numbers listed below. When using a plug, the collar is not required.

Tube Size

Collar

Gland

Plug

5/16" H/P

150C5

150G5

150P5



High Pressure Connection Components

Cap

A

B

C

D

150CA5

1.12"
(28.4)

1.50"
(38.1)

0.75"
(19.1)

0.62"
(15.7)

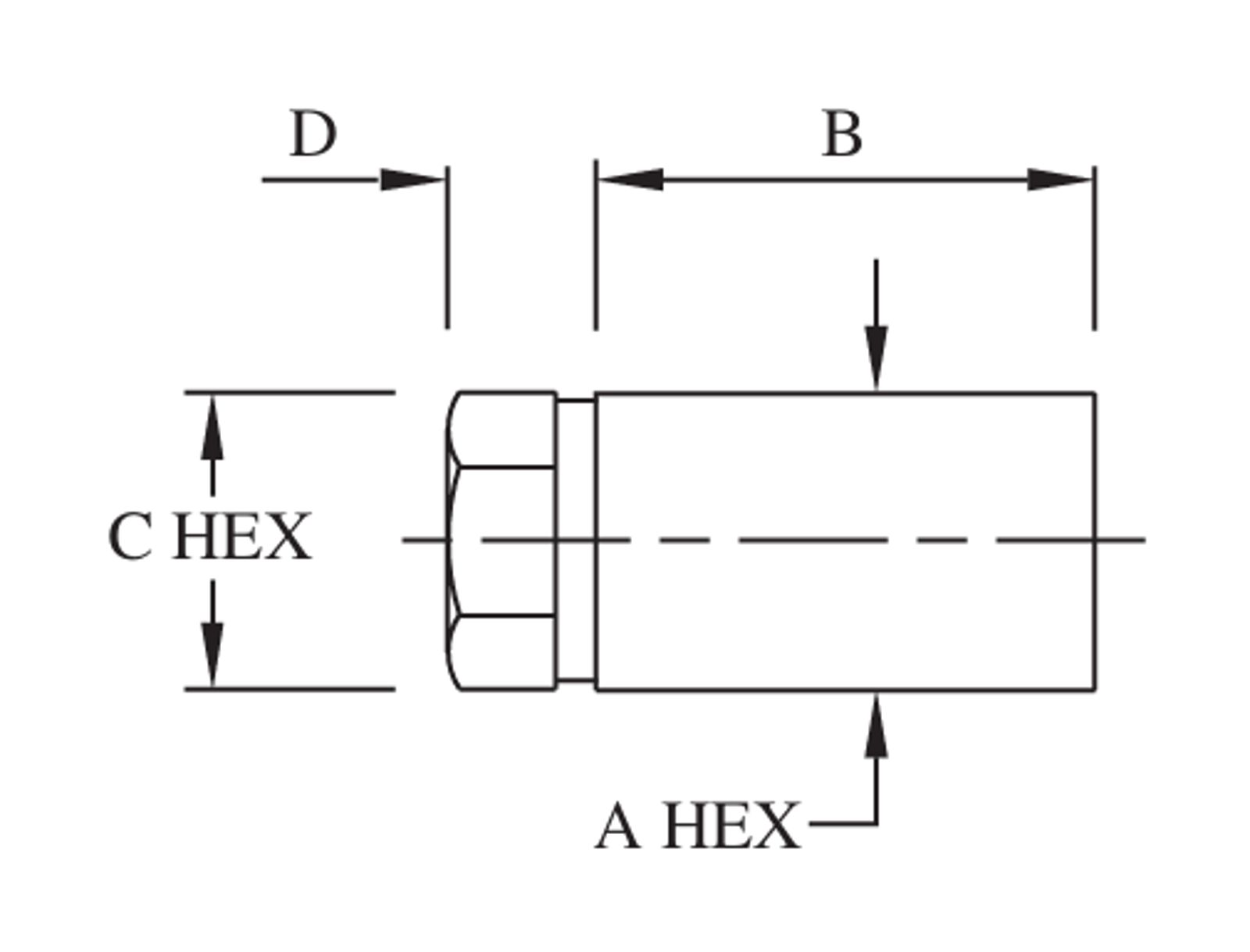

High Pressure Equipment for 150000 PSI Connection Component

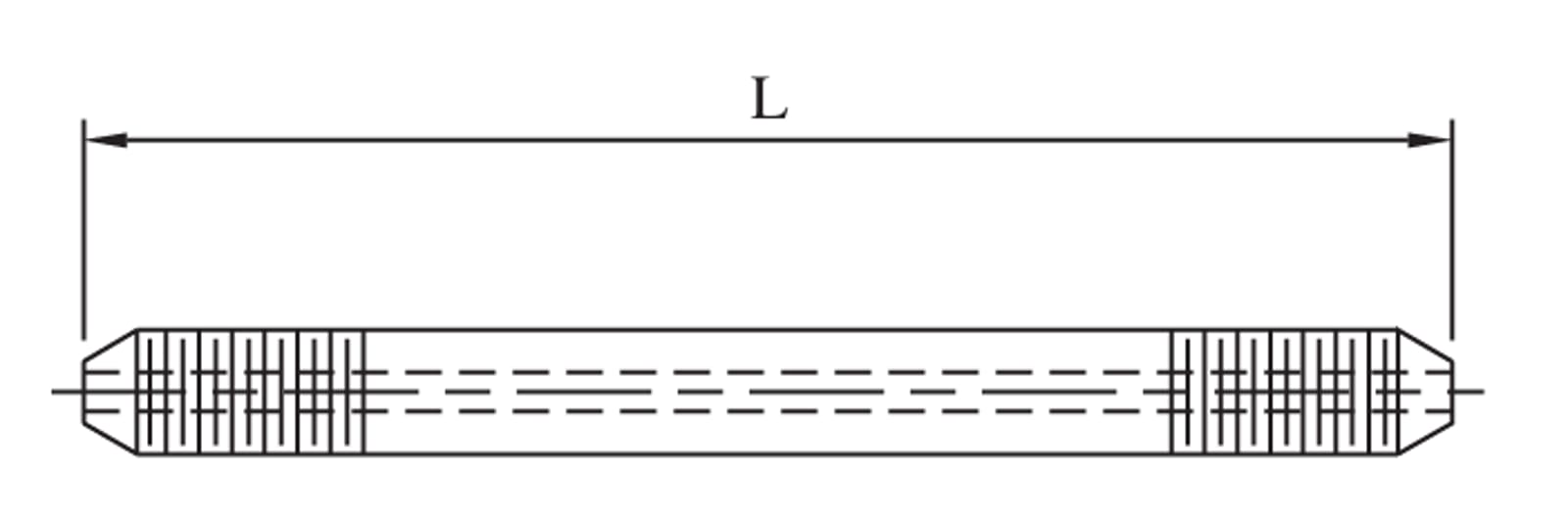

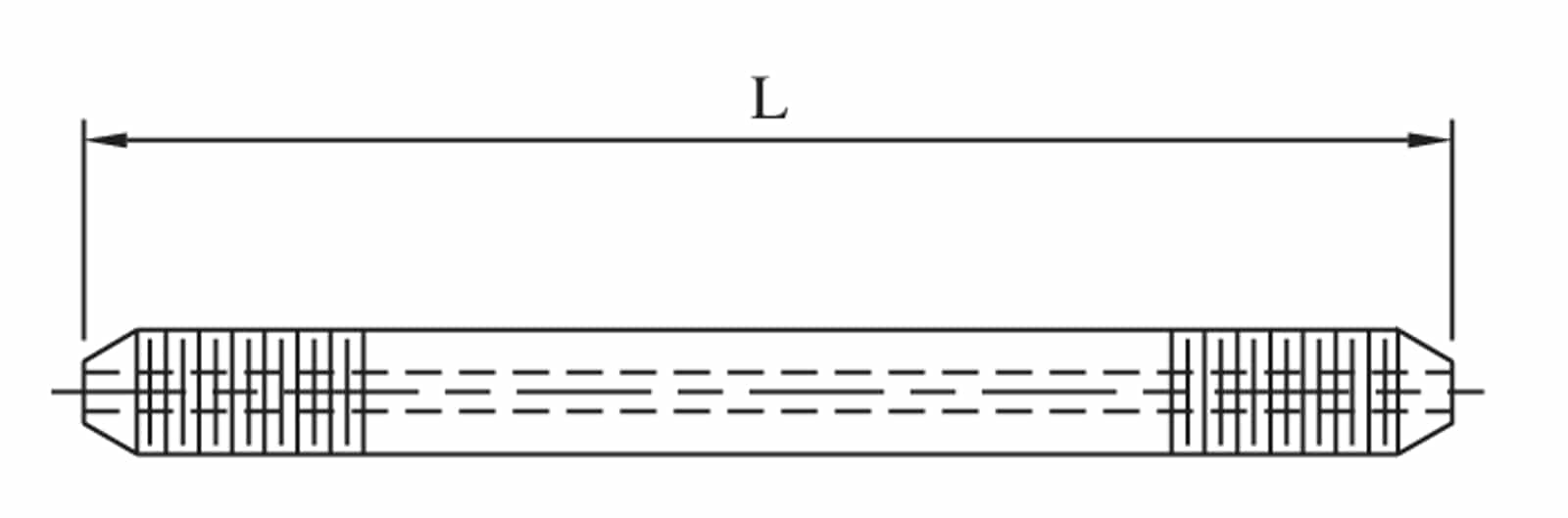

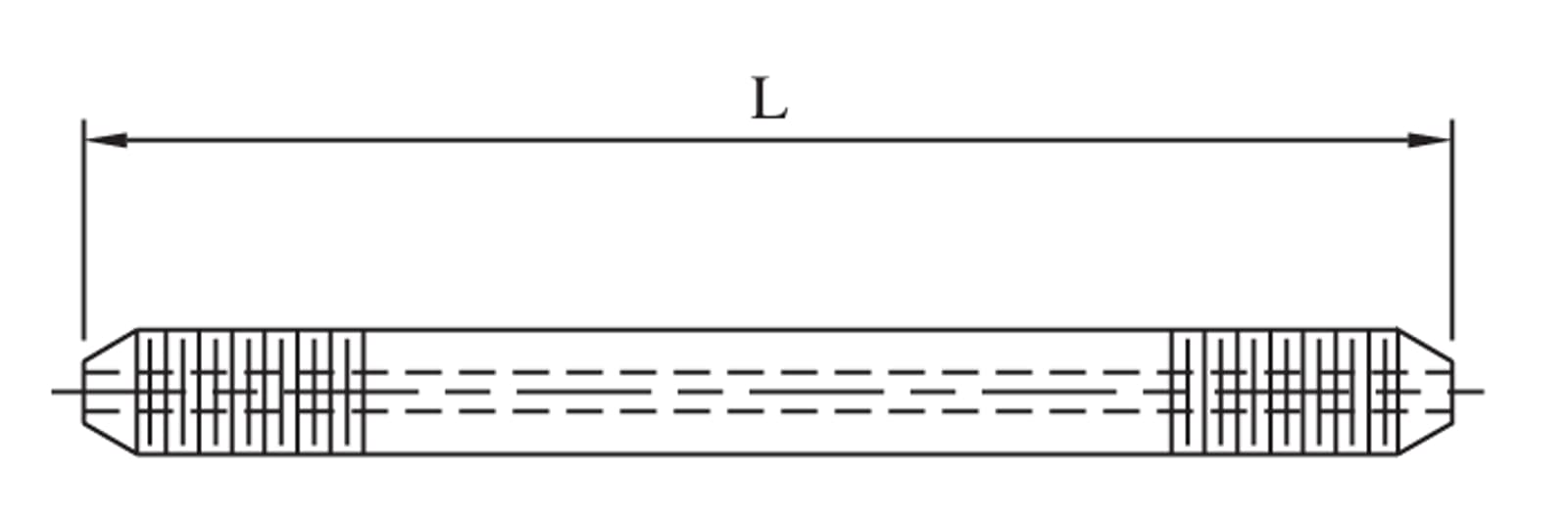

BuTech stocks pre-cut coned and threaded nipples in lengths up to 12" (305 mm). In addition, nipples can be purchased to any custom.

Connection

Length

MAWP

4.00"
(101.6

6.00"
(152.4)

8.00"
(203.2)

10.00"
(254.0)

12.00"
(304.8)

5/16" HP

150N554-316

150N556-316

150N558-316

150N5510-316

150N5512-316

150,000 PSI
10340 bar



Coned and Threaded Nipples

BuTech offers a complete selection of austenitic seamless cold-drawn stainless steel tubing for high pressure applications where both high strength and corrosion resistance are desired. Tubing is available in standard 20-24 foot lengths (6-7 meters), however, longer lengths are available on request.





Catalog Number

Connection

O.D

I.D.

MAWP

150-063-316

5/16" H/P

0.312" (7.9)

0.063" (1.6)

150,000 PSI 10340 bar
