Medium Needle Valve
medium-needle-valve-2

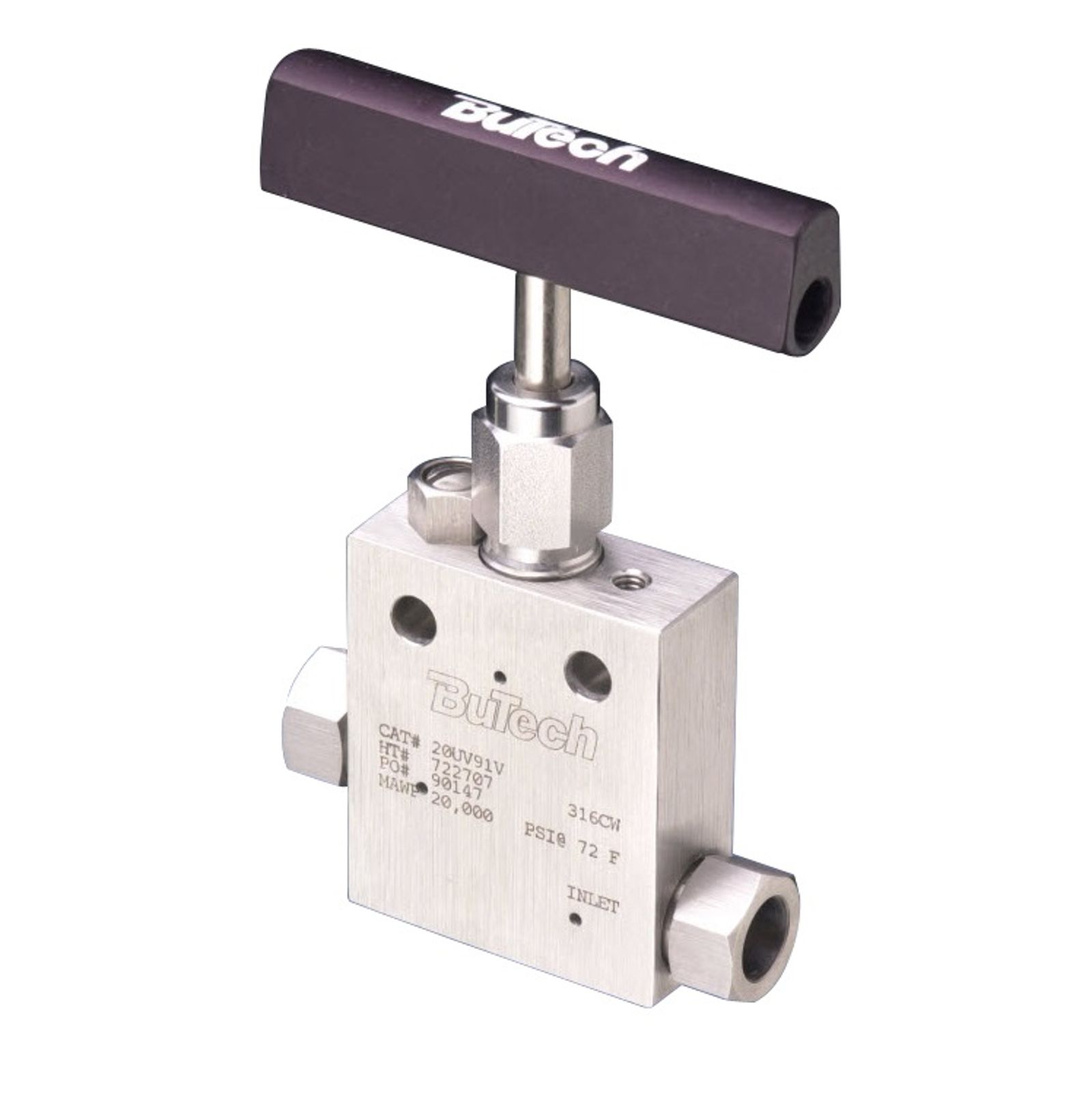

Medium Needle Valve
medium-needle-valve-2
Back to the product list

Medium Pressure Needle Valves

  • Non-rotating stem prevents galling and scoring
  • Five stem styles:
    • Vee
    • Regulating
    • Metering
    • Micro-Metering
    • Soft Tip
  • 17-4PH Stem for longer service life. 316 wetted parts are also available by specifying option -316WP (see page MP-3)
  • Glass-filled Teflon packing for temperatures to 600°F (315°C)
  • Integral through holes for bracket mounting, a panel-mounting option is also available (see page MP-3)
  • Wide range of options allow customizing of valve
  • Positive gland locking device
Download Catalog
Link to configuration tool

BuTech Medium Pressure Valves are designed for liquid and gas flow control in petroleum, chemical, power generating and general industrial applications.

Available in a variety of body styles, the valves are designed for operation at temperatures ranging from -100° to +600°F (-73° to +315°C). Optional packings and/or extended stuffing boxes increase the range to -423° to +1200°F (-253° to +648°C).

Their rugged construction provides assurance of fail-safe operation at pressures ranging to 20,000 PSI (1380 bar).

Materials of Construction

Standard materials of construction include 316 cold-worked stainless steel, 17-4PH, Ampco 45, and glass-filled teflon. All BuTech equipment may also be produced in any machinable metal. Some of the more common exotic materials used are:

  • Hastelloy™
  • Inconel™
  • Titanium
  • Monel 400™

Tube Sizes: 1/4" through 1" ; Pressures to 20,000 PSI (1380 bar); Type: M/P Cone-and-Thread



Tube O.D.

Connection

Orifice

Cv*

MAWP+

1/4"

1/4" M/P

0.109"
(2.8)

0.31

20,000 PSI
1380 bar

3/8"

3/8" M/P

0.203"
(5.2)

0.75

20,000 PSI
1380 bar

9/16"

9/16" M/P

0.312"
(7.9)

1.75

20,000 PSI
1380 bar

3/4"

3/4" M/P

0.438"
(11.1)

2.80

20,000 PSI
1380 bar

1"

1" M/P

0.562"
(14.3)

5.20

20,000 PSI
1380 bar

*Cv values listed are for 2-way straight pattern valves excluding metering valves.
For 2-way angle pattern valves, increase Cv value by 50%.
For Metering Valves: Cv=.004, Port size=0.062" (1.57 mm) +Maximum allowable working pressure at 72°F (22° C)

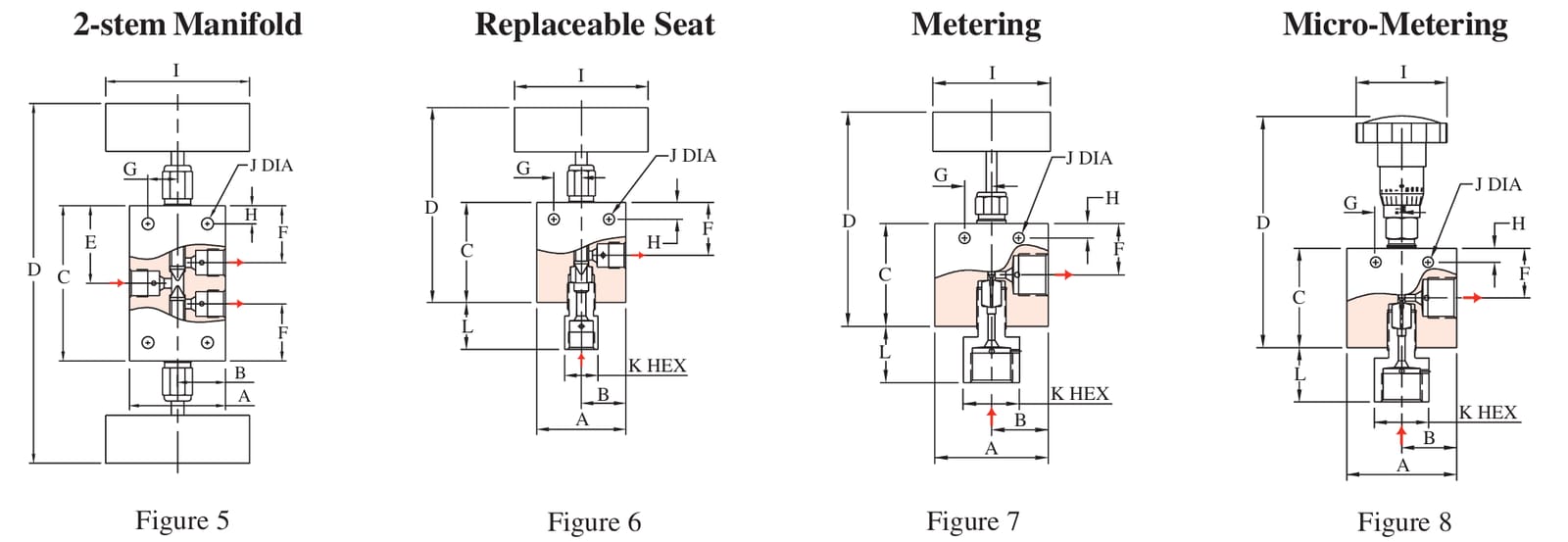

medium-needle-valve-2

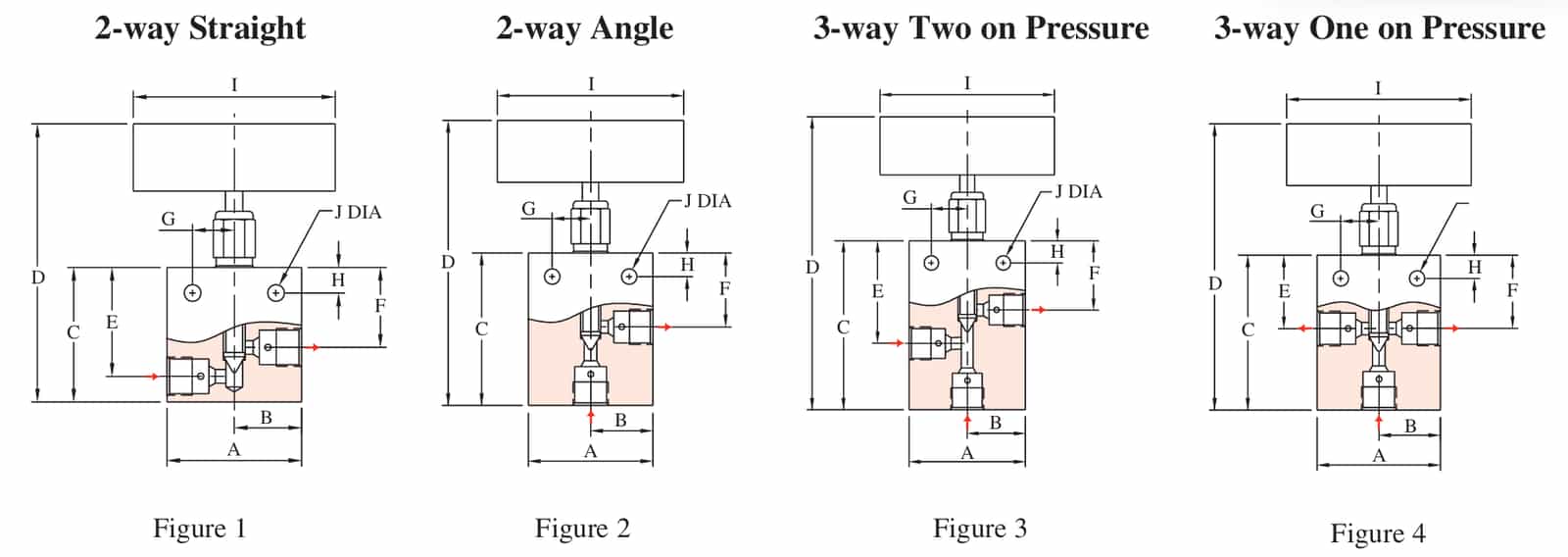

1/4" M/P Tube, Coned and Threaded



Catalog Number

Stem Style

Connection

A

B

C

D

E

F

G

H

I

J

K

L

Thk.

Fig

20UV41V
20UV41R

Vee Reg

1/4" M/P Tube

2.00" (50.8)

1.00" (25.4)

2.00" (50.8)

4.50" (114.3)

1.62" (41.1)

 1.19" (30.2)

0.62" (15.7)

0.38" (9.7)

3.00" (76.2)

0.25" (6.4)

---

---

0.75" (19.1)

1

20UV42V
20UV42R

Vee Reg

1/4" M/P Tube

2.00" (50.8)

1.00" (25.4)

2.44" (62.0)

4.94" (125.5)

---

 1.19" (30.2)

0.62" (15.7)

0.38"  (9.7)

3.00" (76.2)

0.25" (6.4)

---

---

0.75" (19.1)

2

20UV43V
20UV43R

Vee Reg

1/4" M/P Tube

2.00" (50.8)

1.00" (25.4)

2.62" (66.5)

5.12" (130.0)

1.62" (41.1)

 1.19" (30.2)

0.62" (15.7)

0.38" (9.7)

3.00" (76.2)

0.25" (6.4)

---

---

0.75" (19.1)

3

20UV44V
20UV44R

Vee Reg

1/4" M/P Tube

2.00" (50.8)

1.00" (25.4)

2.44" (62.0)

4.94" (125.5)

1.19" (30.2)

 1.19" (30.2)

0.62" (15.7)

0.38" (9.7)

3.00" (76.2)

0.25" (6.4)

---

---

0.75" (19.1)

4

20UV45V
20UV45R

Vee Reg

1/4" M/P Tube

2.00" (50.8)

1.00" (25.4)

3.38" (85.9)

8.38" (212.9)

1.68" (42.7)

 1.19" (30.2)

0.62" (15.7)

0.38" (9.7)

3.00" (76.2)

0.25" (6.4)

---

---

0.75" (19.1)

5

20UV46V
20UV46R

Vee Reg

1/4" M/P Tube

2.00" (50.8)

1.00" (25.4)

2.25" (57.2)

4.75" (120.7)

---

 1.19" (30.2)

0.62" (15.7)

0.38" (9.7)

3.00" (76.2)

0.25" (6.4)

0.75" (19.1)

1.06" (26.9)

0.75" (19.1)

6

20MV46V

Meter

1/4" M/P Tube

2.00" (50.8)

1.00" (25.4)

2.62" (66.5)

6.72" (170.7)

---

1.31" (33.3)

0.69" (17.5)

0.38" (9.7)

3.00" (76.2)

0.25" (6.4)

0.75" (19.1)

1.06" (26.9)

1.00" (25.4)

7

20MMV46V

Micro-Meter

1/4" M/P Tube

2.00" (50.8)

1.00" (25.4)

2.62" (66.5)

7.36" (186.9)

---

1.31" (33.3)

0.69" (17.5)

0.38" (9.7)

2.35" (59.7)

0.25" (6.4)

0.75" (19.1)

1.06" (26.9)

1.00" (25.4)

8



3/8" M/P Tube, Coned and Threaded



Catalog Number

Stem Style

Connection

A

B

C

D

E

F

G

H

I

J

K

L

Thk.

Fig

20UV61V
20UV61R

Vee Reg

3/8" M/P Tube

2.00" (50.8)

1.00" (25.4)

2.00" (50.8)

4.50" (114.3)

1.62" (41.1)

 1.19" (30.2)

0.62" (15.7)

0.38" (9.7)

3.00" (76.2)

0.25" (6.4)

---

---

0.75" (19.1)

1

20UV62V
20UV62R

Vee Reg

3/8" M/P Tube

2.00" (50.8)

1.00" (25.4)

2.44" (62.0)

4.94" (125.5)

---

 1.19" (30.2)

0.62" (15.7)

0.38"  (9.7)

3.00" (76.2)

0.25" (6.4)

---

---

0.75" (19.1)

2

20UV63V
20UV63R

Vee Reg

3/8" M/P Tube

2.00" (50.8)

1.00" (25.4)

2.62" (66.5)

5.12" (130.0)

1.62" (41.1)

 1.19" (30.2)

0.62" (15.7)

0.38" (9.7)

3.00" (76.2)

0.25" (6.4)

---

---

0.75" (19.1)

3

20UV64V
20UV64R

Vee Reg

3/8" M/P Tube

2.00" (50.8)

1.00" (25.4)

2.44" (62.0)

4.94" (125.5)

1.19" (30.2)

 1.19" (30.2)

0.62" (15.7)

0.38" (9.7)

3.00" (76.2)

0.25" (6.4)

---

---

0.75" (19.1)

4

20UV65V
20UV65R

Vee Reg

3/8" M/P Tube

2.00" (50.8)

1.00" (25.4)

3.38" (85.9)

8.38" (212.9)

1.68" (42.7)

 1.19" (30.2)

0.62" (15.7)

0.38" (9.7)

3.00" (76.2)

0.25" (6.4)

---

---

0.75" (19.1)

5

20UV66V
20UV66R

Vee Reg

3/8" M/P Tube

2.00" (50.8)

1.00" (25.4)

2.25" (57.2)

4.75" (120.7)

---

 1.19" (30.2)

0.62" (15.7)

0.38" (9.7)

3.00" (76.2)

0.25" (6.4)

0.75" (19.1)

1.06" (26.9)

0.75" (19.1)

6

20MV66V

Meter

3/8" M/P Tube

2.00" (50.8)

1.00" (25.4)

2.62" (66.5)

6.72" (170.7)

---

1.31" (33.3)

0.69" (17.5)

0.38" (9.7)

3.00" (76.2)

0.25" (6.4)

0.75" (19.1)

1.06" (26.9)

1.00" (25.4)

7

20MMV66V

Micro-Meter

3/8" M/P Tube

2.50" (63.5)

1.25" (31.8)

2.62" (66.5)

7.36" (186.9)

---

1.31" (33.3)

0.69" (17.5)

0.38" (9.7)

2.35" (59.7)

0.25" (6.4)

0.75" (19.1)

1.06" (26.9)

1.00" (25.4)

8



9/16" M/P Tube, Coned and Threaded



Catalog Number

Stem Style

Connection

A

B

C

D

E

F

G

H

I

J

K

L

Thk.

Fig

20UV91V
20UV91R

Vee Reg

9/16" M/P Tube

2.50" (63.5)

1.25" (31.8)

2.88" (73.2)

6.32" (160.5)

2.38" (60.5)

1.75" (44.5)

0.69" (17.5)

0.50" (12.7)

4.00" (101.6)

0.34" (8.6)

---

---

1.00" (25.4)

1

20UV92V
20UV92R

Vee Reg

9/16" M/P Tube

2.50" (63.5)

1.25" (31.8)

3.38" (85.9)

6.82"(173.2)

---

1.75" (44.5)

0.69" (17.5)

0.50" (12.7)

4.00" (101.6)

0.34" (8.6)

---

---

1.00" (25.4)

2

20UV93V
20UV93R

Vee Reg

9/16" M/P Tube

2.50" (63.5)

1.25" (31.8)

3.62" (91.9)

7.06" (179.3)

2.38" (60.5)

1.75" (44.5)

0.69" (17.5)

0.50" (12.7)

4.00" (101.6)

0.34" (8.6)

---

---

1.00" (25.4)

3

20UV94V
20UV94R

Vee Reg

9/16" M/P Tube

2.50" (63.5)

1.25" (31.8)

3.38" (85.9)

6.82"(173.2)

1.75" (44.5)

1.75" (44.5)

0.69" (17.5)

0.50" (12.7)

4.00" (101.6)

0.34" (8.6)

---

---

1.00" (25.4)

4

20UV95V
20UV95R

Vee Reg

9/16" M/P Tube

2.50" (63.5)

1.25" (31.8)

5.12" (130.0)

12.00" (304.8)

2.56" (65.0)

1.75" (44.5)

0.69" (17.5)

0.50" (12.7)

4.00" (101.6)

0.34" (8.6)

---

---

1.00" (25.4)

5

20UV96V
20UV96R

Vee Reg

9/16" M/P Tube

2.50" (63.5)

1.25" (31.8)

3.25" (82.6)

6.69" (169.9)

---

1.75" (44.5)

0.69" (17.5)

0.50" (12.7)

4.00" (101.6)

0.34" (8.6)

0.75" (19.1)

1.37" (34.8)

1.00" (25.4)

6



3/4" M/P Tube, Coned and Threaded



Catalog Number

Stem Style

Connection

A

B

C

D

E

F

G

H

I

J

K

L

Thk.

Fig

20V121V
20V121R

Vee Reg

3/4" M/P Tube

3.00" (76.2)

1.50" (38.1)

3.75" (95.3)

8.75"(222.3)

3.00" (76.2)

2.25" (57.2)

0.88" (22.4)

0.62" (15.7)

8.00" (203.2)

0.43" (10.9)

---

---

1.38"(35.1)

1

20V122V
20V122R

Vee Reg

3/4" M/P Tube

3.00" (76.2)

1.50" (38.1)

 4.50" (114.3)

9.50"(241.3)

---

2.25" (57.2)

0.88" (22.4)

0.62" (15.7)

8.00" (203.2)

0.43" (10.9)

---

---

1.38"(35.1)

2

20V123V
20V123R

Vee Reg

3/4" M/P Tube

3.00" (76.2)

1.50" (38.1)

5.00" (127.0)

10.00" (254.0)

3.00" (76.2)

2.25" (57.2)

0.88" (22.4)

0.62" (15.7)

8.00" (203.2)

0.43" (10.9)

---

---

1.38"(35.1)

3

20V124V
20V124R

Vee Reg

3/4" M/P Tube

3.00" (76.2)

1.50" (38.1)

4.50" (114.3)

9.50"(241.3)

2.25" (57.2)

2.25" (57.2)

0.88" (22.4)

0.62" (15.7)

8.00" (203.2)

0.43" (10.9)

---

---

1.38"(35.1)

4

20V125V
20V125R

Vee Reg

3/4" M/P Tube

3.00" (76.2)

1.50" (38.1)

7.00" (177.8)

17.00"(431.8)

3.50" (88.9)

2.25" (57.2)

0.88" (22.4)

0.62" (15.7)

8.00" (203.2)

0.43" (10.9)

---

---

1.38"(35.1)

5

20V126V
20V126R

Vee Reg

3/4" M/P Tube

3.00" (76.2)

1.50" (38.1)

3.75" (95.3)

8.75"(222.3)

---

2.25" (57.2)

0.88" (22.4)

0.62" (15.7)

8.00" (203.2)

0.43" (10.9)

 1.38" (35.1)

1.65"(41.9)

1.38"(35.1)

6



1" M/P Tube, Coned and Threaded



Catalog Number

Stem Style

Connection

A

B

C

D

E

F

G

H

I

J





Thk.

Fig

20V161V
20V161R

Vee Reg

1" M/P Tube

4.12" (104.6)

2.06" (52.3)

4.75" (120.7)

10.19" (258.8)

3.75"(95.3)

2.81" (71.4)

1.25"  (31.8)

 1.12"  (28.4)

10.00"  (254.0)

0.56" (14.2)

---

---

1.75"  (44.5)

1

20V162V
20V162R

Vee Reg

1" M/P Tube

4.12" (104.6)

2.06" (52.3)

5.50" (139.7)

10.94"(277.9)

---

2.81" (71.4)

1.25"  (31.8)

 1.12"  (28.4)

10.00"  (254.0)

0.56" (14.2)

---

---

1.75" (44.5)

2

20V163V
20V163R

Vee Reg

1" M/P Tube

4.12" (104.6)

2.06" (52.3)

6.00" (152.4)

11.44" (290.6)

3.75" (95.3)

2.81" (71.4)

1.25"  (31.8)

 1.12"  (28.4)

10.00"  (254.0)

0.56" (14.2)

---

---

1.75" (44.5)

3

20V164V
20V164R

Vee Reg

1" M/P Tube

4.12" (104.6)

2.06" (52.3)

5.50" (139.7)

10.94"(277.9)

2.81" (71.4)

2.81" (71.4)

1.25"  (31.8)

 1.12"  (28.4)

10.00"  (254.0)

0.56" (14.2)

---

---

 1.75"  (44.5)

4

20V165V
20V165R

Vee Reg

1" M/P Tube

4.12" (104.6)

2.06" (52.3)

8.00" (203.2)

18.88" (479.6)

4.00" (101.6)

2.81" (71.4)

1.25"  (31.8)

 1.12"  (28.4)

10.00"  (254.0)

0.56" (14.2)

---

---

1.75" (44.5)

1

20V166V
20V166R

Vee Reg

1" M/P Tube

4.12" (104.6)

2.06" (52.3)

4.88" (124.0)

10.62" (269.7)

---

2.81" (71.4)

1.56" (39.6)

 1.12"  (28.4)

10.00"  (254.0)

0.56" (14.2)

1.75"  (44.5)

 2.08"  (52.8)

1.75" (44.5)

2





For valve Options and Automation please open the catalog at the bottom of the page.

Configure Repair kits or search parts in seconds

Repair Kit SelectorPart Number Search

Replacement Parts

BuTech offers replacement parts in a variety of packages so you can purchase just the parts you need.

  • Replacement Stem Kit contains just the stem
  • Replacement Packing Kit contains all soft packing rings
  • Repair Kits contain stem, stem sleeve, stem nuts and washers, packings and packing washers (replacement seat where applicable)





Repair Kits

Replacement Stem

Replacement Packings

Replacement Valve Body

Valve Series

All others

Replaceable Seat

20UV4

RK-20UV4*

RK-20UV46*

20S4*

20PK4*

20UV4+

20UV6

RK-20UV6*

RK-20UV66*

20S6*

20PK6*

20UV6+

20UV9

RK-20UV9*

RK-20UV96*

20S9*

20PK9*

20UV9+

20V12

RK-20V12*

RK-20V126*

20S12*

20PK12*

20V12+

20V16

RK-20V16*

RK-20V166*

20S16*

20PK16*

20V16+



*Complete catalog number by adding the following:

  • V, R or S for stem type
  • Suffix for special packing materials (see page MP-3) (ex. -GR for Grafoil packings)
  • Suffix for special materials (ex. -HC for Hastelloy)
  • -LT or -HT for cryogenic or high-temperature service
  • -WAO for a valve fitted with an actuator

Examples:

  • 20UV42V specifies a 2-way angle valve for 1/4" tube with a Vee stem
  • 20UV91R-PM specifies a 2-way straight valve for 9/16" tube with regulating stem and panel-mount packing gland option

BuTech Medium Pressure Valves

MEDIUM PRESSURE VALVES

Access the data sheet, installation manual or other technical documents you need by using our Technical Resources Finder. Simply apply the filters or type your query into the search field to locate the right document.

Search Technical Documents
Resources & Product SelectorsDocument LibraryFind a Sales Rep

Related Products
