NOTE: Standard operating temperature range is -20 to 400°F (-28 to 204°C). For applications requiring higher temperatures, select the -HT option shown on page BV-2.
*CAUTION: The maxiumum allowable working pressure (MAWP) of the valve shall not exceed the MAWP of the valve series or the selected connection, whichever is less.
Model No. | Maximum Pressure* | Port | Cv | Page | |||

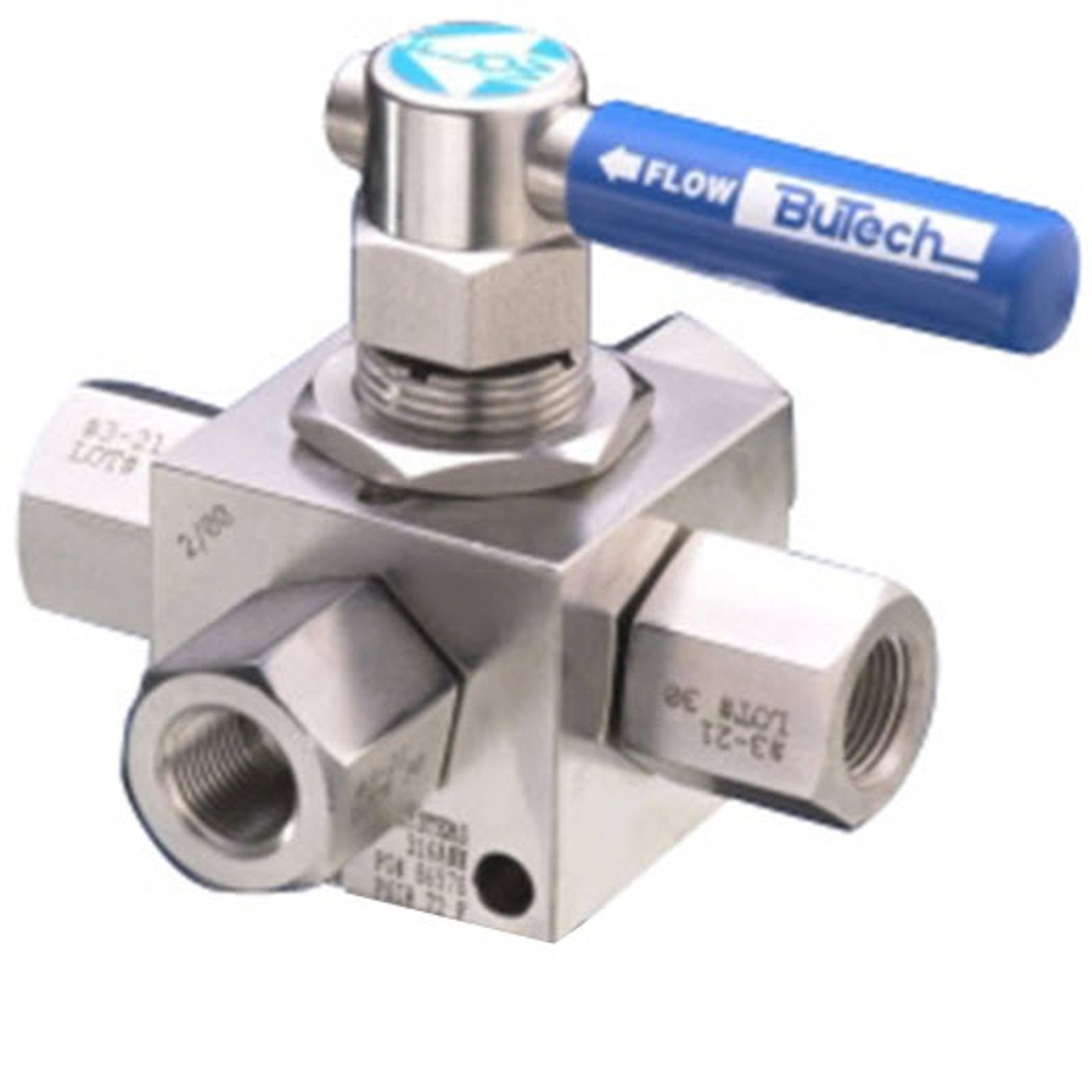

4-way & 5-way Vavles | 4K103 | 10,000 psi | 690 bar | 0.187" | (4.7 mm) | 0.56 | BV-36 |
5K103 | 10,000 psi | 690 bar | 0.187" | (4.7 mm) | 0.56 | BV-40 | |
4K106 | 10,000 psi | 690 bar | 0.375" | (9.5 mm) | 2.40 | BV-38 | |
5K106 | 10,000 psi | 690 bar | 0.375" | (9.5 mm) | 2.40 | BV-42 |
