NOTE: Standard operating temperature range is -20 to 400°F (-28 to 204°C). For applications requiring higher temperatures, select the -HT option shown on page BV-2.
*CAUTION: The maximum allowable working pressure (MAWP) of the valve shall not exceed the MAWP of the valve series or the selected connection, whichever is less.
Model No.
| Maximum Pressure*
| Port | Cv | Page
| |||

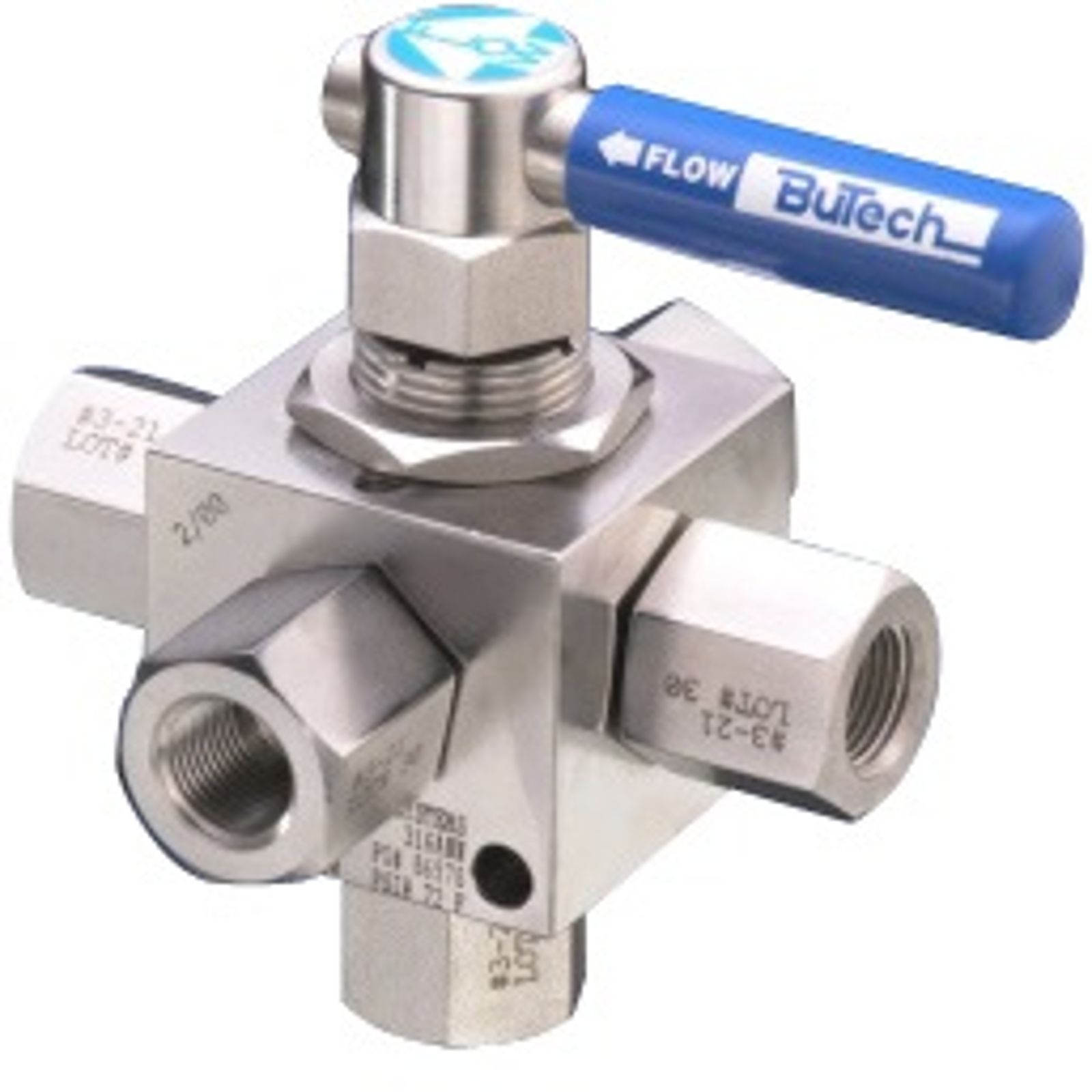

4-way & 5-way Vavles
| 4K103 | 10,000 psi
| 690 bar
| 0.187"
| (4.7 mm)
| 0.56
| BV-36
|
5K103 | 10,000 psi
| 690 bar
| 0.187"
| (4.7 mm)
| 0.56
| BV-40
| |
4K106
| 10,000 psi
| 690 bar
| 0.375"
| (9.5 mm)
| 2.40
| BV-38
| |
5K106
| 10,000 psi
| 690 bar
| 0.375"
| (9.5 mm)
| 2.40
| BV-42
|
