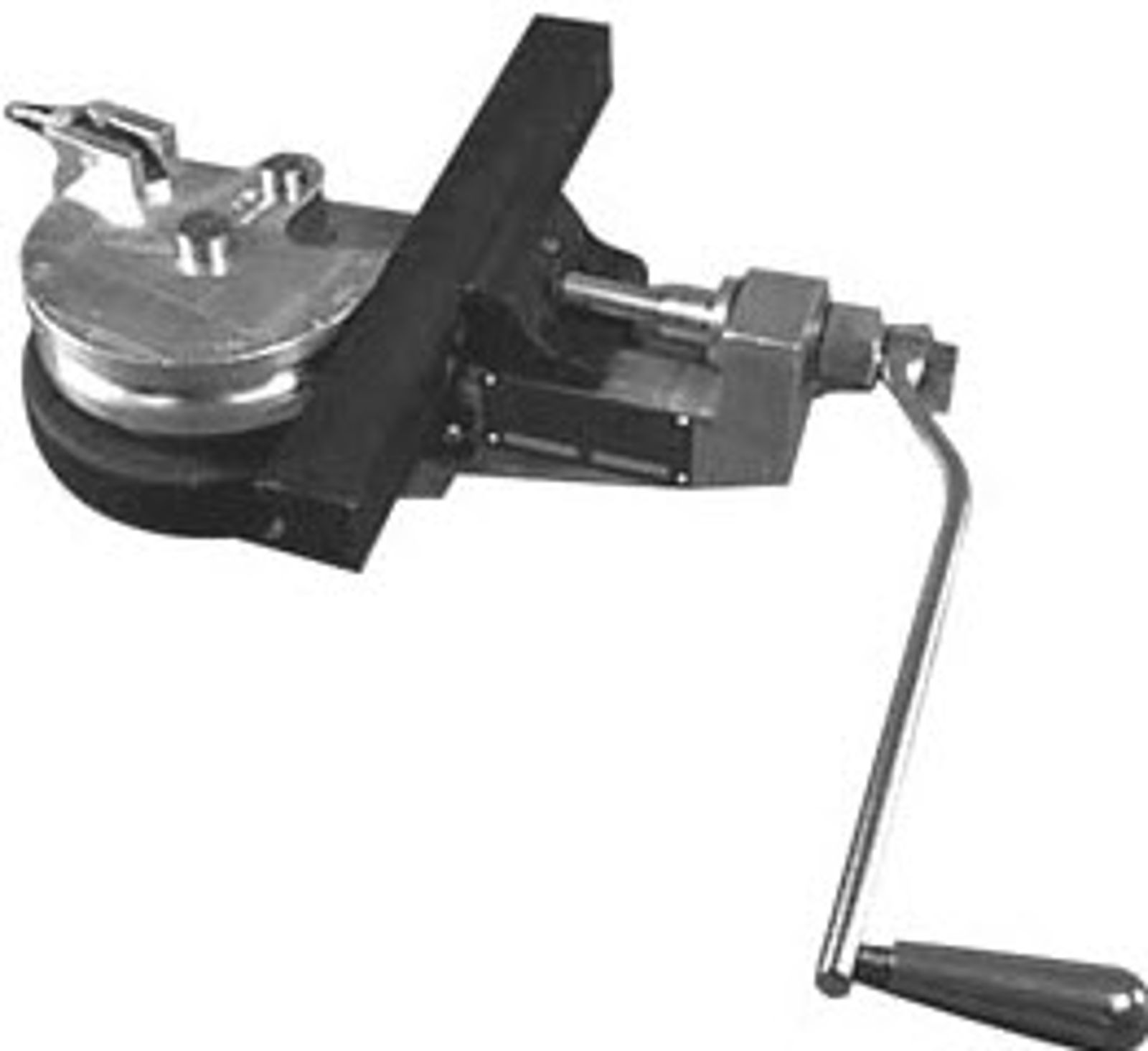

To order a complete tube bender, specify catalog number from the chart below.
Included Radius Block Sizes | Catalog Number |
1/4" | MTB4 |
3/8" | MTB6 |
9/16" | MTB9 |
1/4",3/8",9/16" | MTB469 |
To order extra radius blocks, specify catalog number from the chart below.
Tube OD | Catalog Number | Bend Radius | Min. Tube Length* |
1/4" | PH-2043 | 1.75"(44.5mm) | 1.25”(31.8mm) |
3/8" | PH-2044 | 1.75"(44.5mm) | 8.00"(203.2mm) |
9/16" | PH-2045 | 2.62"(66.5mm) | 14.00"(355.6mm) |
*For 90° bend |
