Back to the product list

Sour Gas Fittings

NACE-compliant stainless steel fittings, adapters, couplings, and filters engineered for secure performance and equipment protection in sour gas applications up to 30,000 PSI.

Seal Kit Selector
Pump & Compressor Selector

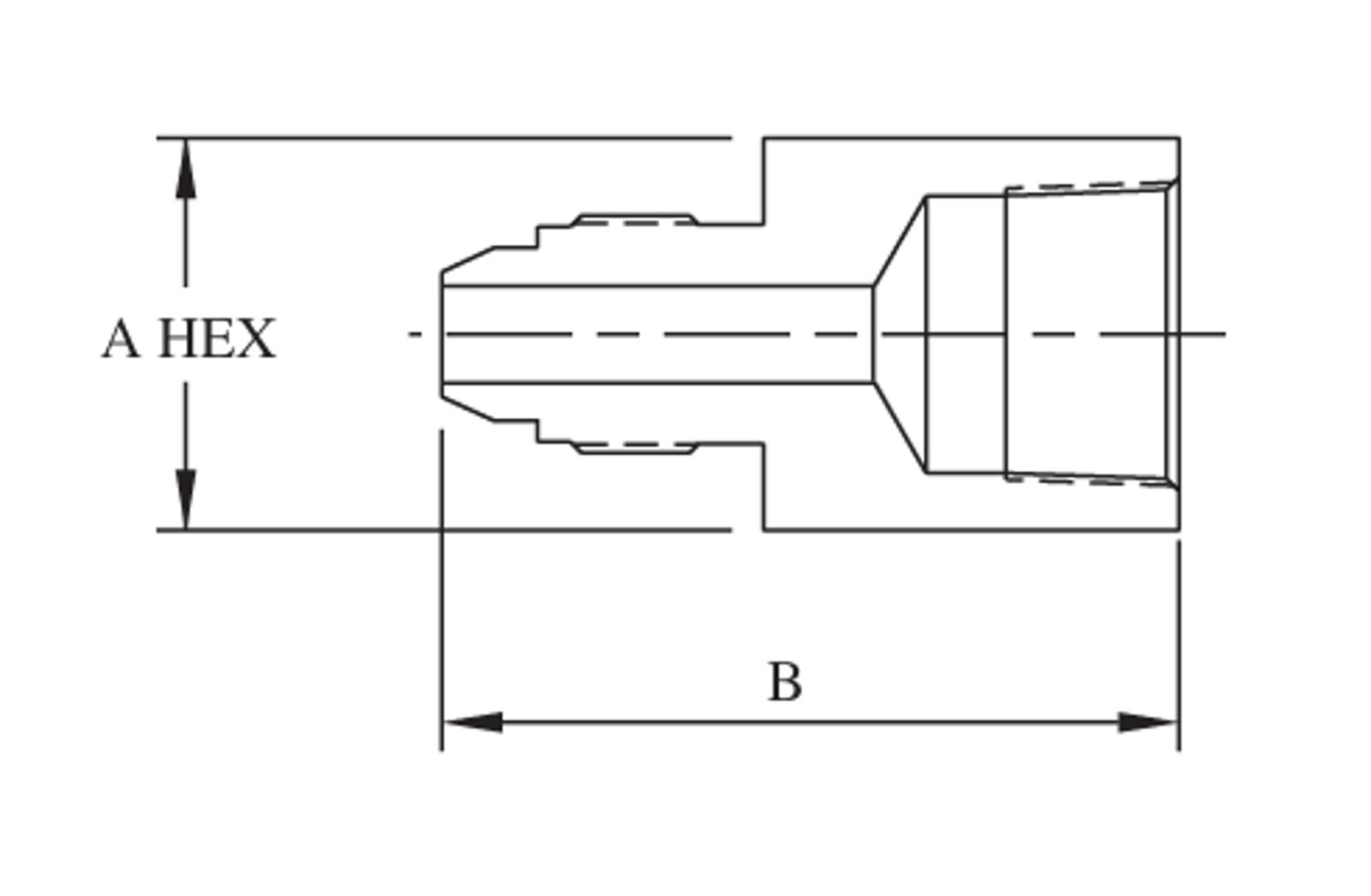

H/P Male X NPT Female

Catalog Number

Male HP

Female NPT

Port

MAWP

A

B

10A4H2P-SOG

1/4"

1/8"

0.125" (3.2)

10,000 PSI (690 bar)

0.63" (16.0)

1.43" (36.3)

10A4H4P-SOG

1/4"

1/4"

0.125" (3.2)

10,000 PSI (690 bar)

0.75" (19.1)

1.68" (42.7)

10A4H6P-SOG

1/4"

3/8"

0.125" (3.2)

10,000 PSI (690 bar)

1.00" (25.4)

1.68" (42.7)

10A4H8P-SOG

1/4"

1/2"

0.125" (3.2)

10,000 PSI (690 bar)

1.38" (35.1)

1.93" (49.0)

10A6H2P-SOG

3/8"

1/8"

0.218" (5.5)

6,900 PSI (690 bar)

0.75" (19.1)

1.75" (44.5)

10A6H4P-SOG

3/8"

1/4"

0.218" (5.5)

6,900 PSI (690 bar)

1.00" (25.4)

2.00" (50.8)

10A6H6P-SOG

3/8"

3/8"

0.218" (5.5)

6,900 PSI (690 bar)

1.00" (25.4)

2.00" (50.8)

10A6H8P-SOG

3/8"

1/2"

0.218" (5.5)

6,900 PSI (690 bar)

1.38" (35.1)

2.38" (60.5)

10A9H2P-SOG

9/16"

1/8"

0.281" (7.1)

10,000 PSI (690 bar)

1.18" (30.0)

2.06" (52.3)

10A9H4P-SOG

9/16"

1/4"

0.281" (7.1)

10,000 PSI (690 bar)

1.18" (30.0)

2.06" (52.3)

10A9H6P-SOG

9/16"

3/8"

0.281" (7.1)

10,000 PSI (690 bar)

1.18" (30.0)

2.06" (52.3)

10A9H8P-SOG

9/16"

1/2"

0.281" (7.1)

10,000 PSI (690 bar)

1.38" (35.1)

2.06" (52.3)

10A9H12P-SOG

9/16"

3/4"

0.281" (7.1)

10,000 PSI (690 bar)

1.75" (44.5)

2.69" (68.3)

H/P Male X NPT Female

NPT Male X H/P Female

Catalog Number

Male HP

Female HP

Port

MAWP

A

B

10A2P4H-SOG

1/8"

1/4"

0.093" (2.4)

10,000 PSI (690 bar)

0.75" (19.1)

1.50" (38.1)

10A2P6H-SOG

1/8"

3/8"

0.125" (3.2)

10,000 PSI (690 bar)

1.00" (25.4)

1.75" (44.5)

10A2P9H-SOG

1/8"

9/16"

0.187" (4.7)

10,000 PSI (690 bar)

1.38" (35.1)

2.25" (57.2)

10A4P4H-SOG

1/4"

1/4"

0.093" (2.4)

10,000 PSI (690 bar)

0.75" (19.1)

1.50" (38.1)

10A4P6H-SOG

1/4"

3/8"

0.125" (3.2)

10,000 PSI (690 bar)

1.00" (25.4)

1.75" (44.5)

10A4P9H-SOG

1/4"

9/16"

0.187" (4.7)

10,000 PSI (690 bar)

1.38" (35.1)

2.25" (57.2)

10A6P4H-SOG

3/8"

1/4"

0.093" (2.4)

10,000 PSI (690 bar)

0.75" (19.1)

1.50" (38.1)

10A6P6H-SOG

3/8"

3/8"

0.125" (3.2)

10,000 PSI (690 bar)

1.00" (25.4)

1.75" (44.5)

10A6P9H-SOG

3/8"

9/16"

0.187" (4.7)

10,000 PSI (690 bar)

1.38" (35.1)

2.25" (57.2)

10A8P4H-SOG

1/2"

1/4"

0.093" (2.4)

10,000 PSI (690 bar)

1.00" (25.4)

1.62" (41.1)

10A8P6H-SOG

1/2"

3/8"

0.125" (3.2)

10,000 PSI (690 bar)

1.00" (25.4)

1.75" (44.5)

10A8P9H-SOG

1/2"

9/16"

0.187" (4.7)

10,000 PSI (690 bar)

1.38" (35.1)

2.25" (57.2)

10A12P9H-SOG

3/4"

9/16"

0.187" (4.7)

10,000 PSI (690 bar)

1.38" (35.1)

2.25" (57.2)

10A16P4H-SOG

1"

1/4"

0.093" (2.4)

10,000 PSI (690 bar)

1.38" (35.1)

1.75" (44.5)

Sour Gas NPT Male X H/P Female Adapters

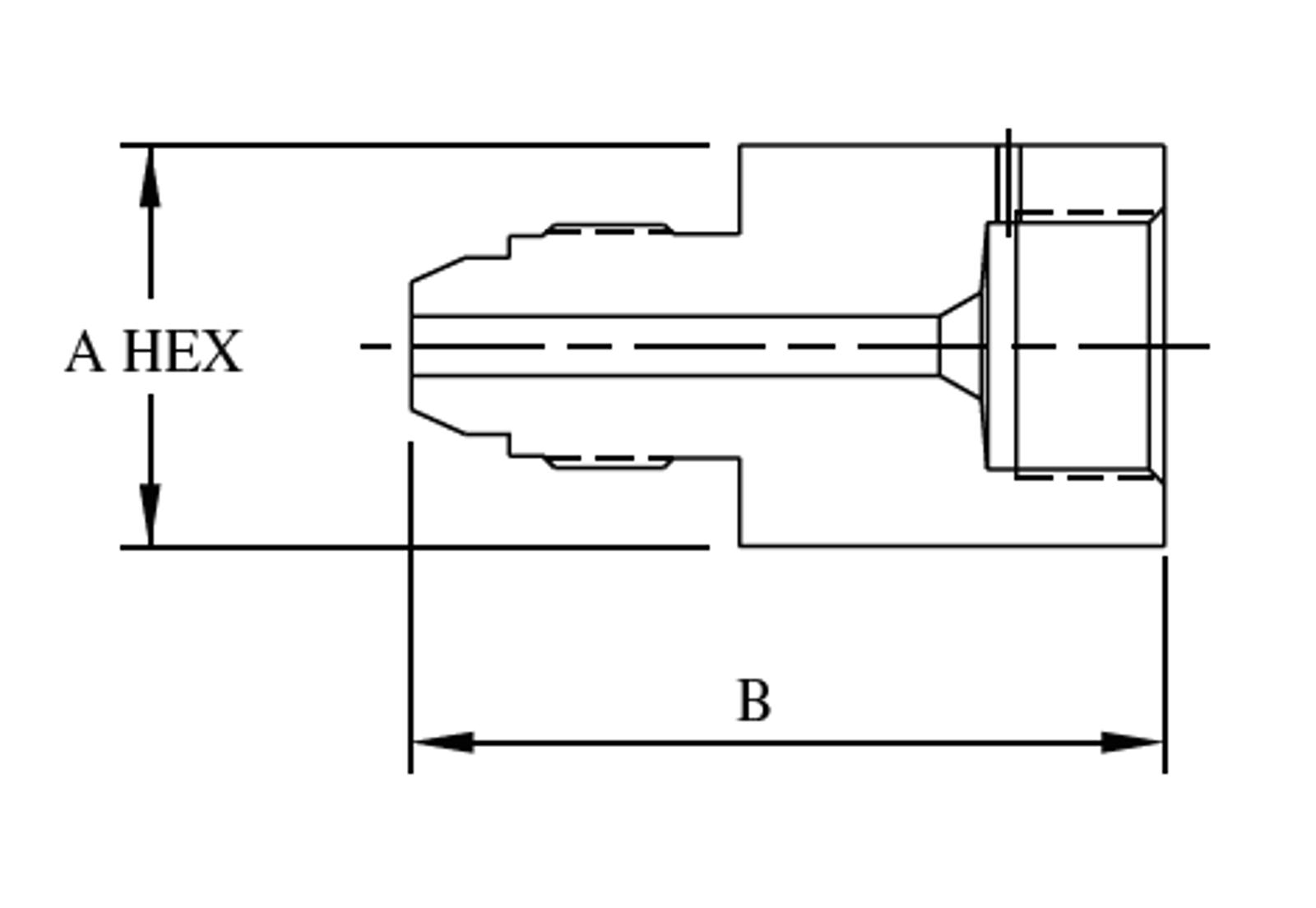

H/P Male X H/P Female

Catalog Number

Male H/P

Female H/P

Port

MAWP

A

B

60A4H4H-SOG

1/4"

1/4"

0.093" (2.4)

30,000 PSI
2070 bar

0.75" (19.1)

1.43" (36.3)

60A4H6H-SOG

1/4"

3/8"

0.125" (3.2)

30,000 PSI
2070 bar

1.00" (25.4)

1.93" (49.0)

60A4H9H-SOG

1/4"

9/16"

0.125" (3.2)

30,000 PSI
2070 bar

1.38" (35.1)

2.43" (61.7)

60A6H4H-SOG

3/8"

1/4"

0.093" (2.4)

30,000 PSI
2070 bar

0.75" (19.1)

1.75" (44.5)

60A6H9H-SOG

3/8"

9/16"

0.188" (4.8)

30,000 PSI
2070 bar

1.38" (35.1)

2.50" (63.5)

60A9H4H-SOG

9/16"

1/4"

0.093" (2.4)

30,000 PSI
2070 bar

1.18" (30.0)

2.06" (52.3)

60A9H6H-SOG

9/16"

3/8"

0.125" (3.2)

30,000 PSI
2070 bar

1.18" (30.0)

2.06" (52.3)

60A9H9H-SOG

9/16"

9/16"

0.188" (4.8)

30,000 PSI
2070 bar

1.38" (35.1)

2.56" (65.0)

H/P Male X H/P Female

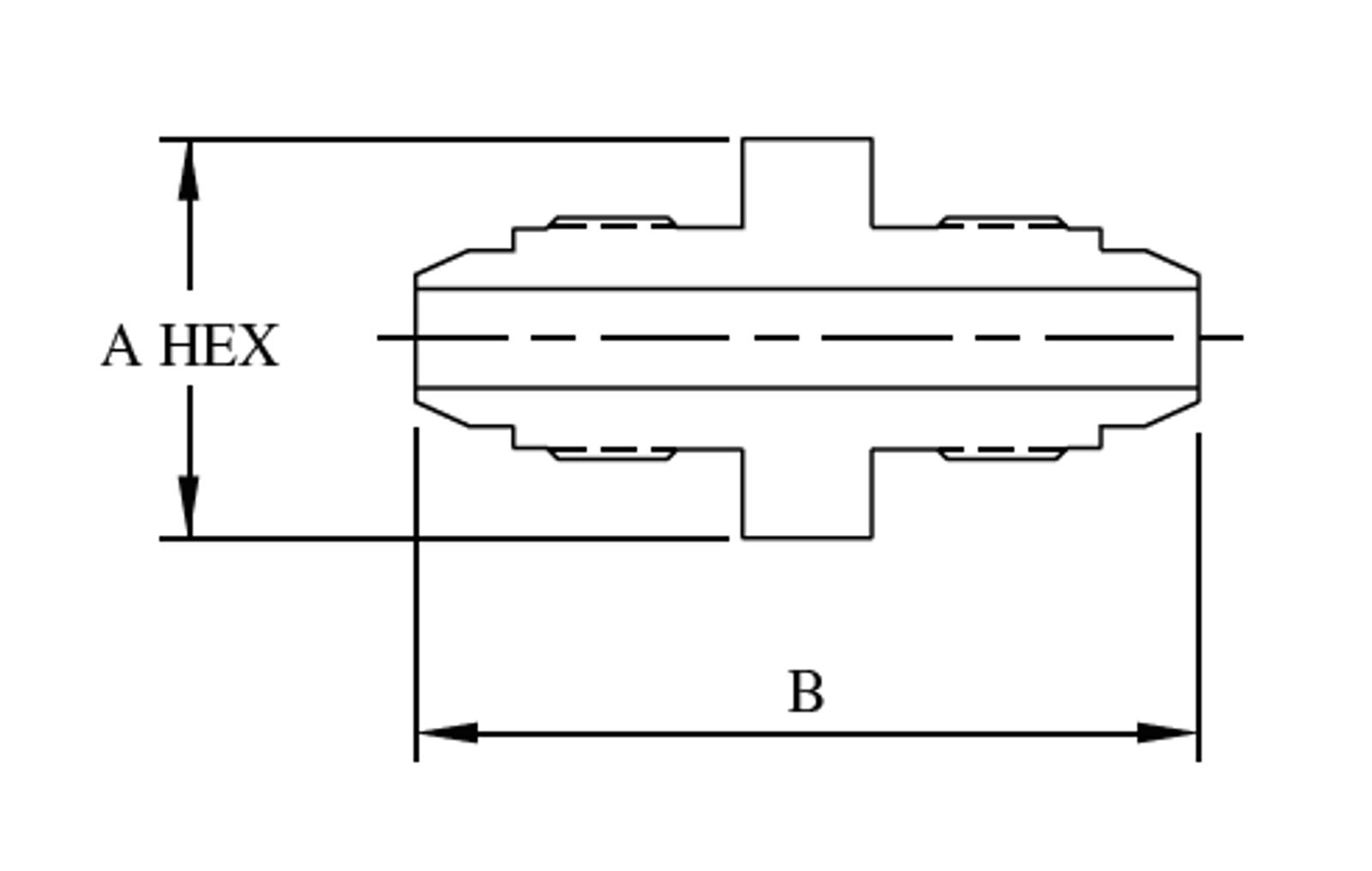

H/P Male X H/P Male

Catalog Number

Male H/P

Male H/P

Port

MAWP

A

B

MA4H4H-SOG

1/4"

1/4"

0.125" (3.2)

30,000 PSI
2070 bar

0.75" (19.1)

2.12" (53.8)

MA6H4H-SOG

3/8"

1/4"

0.082" (2.1)

30,000 PSI
2070 bar

0.75" (19.1)

2.42" (61.5)

MA6H6H-SOG

3/8"

3/8"

0.218" (5.5)

30,000 PSI
2070 bar

0.75" (19.1)

2.50" (63.5)

MA9H4H-SOG

9/16"

1/4"

0.125" (3.2)

30,000 PSI
2070 bar

1.13" (28.7)

2.99" (75.9)

MA9H6H-SOG

9/16"

3/8"

0.218" (5.5)

30,000 PSI
2070 bar

1.18" (30.0)

3.06" (77.7)

MA9H9H-SOG

9/16"

9/16"

0.218" (5.5)

30,000 PSI
2070 bar

1.18" (30.0)

3.37" (85.6)

H/P Male X H/P Male

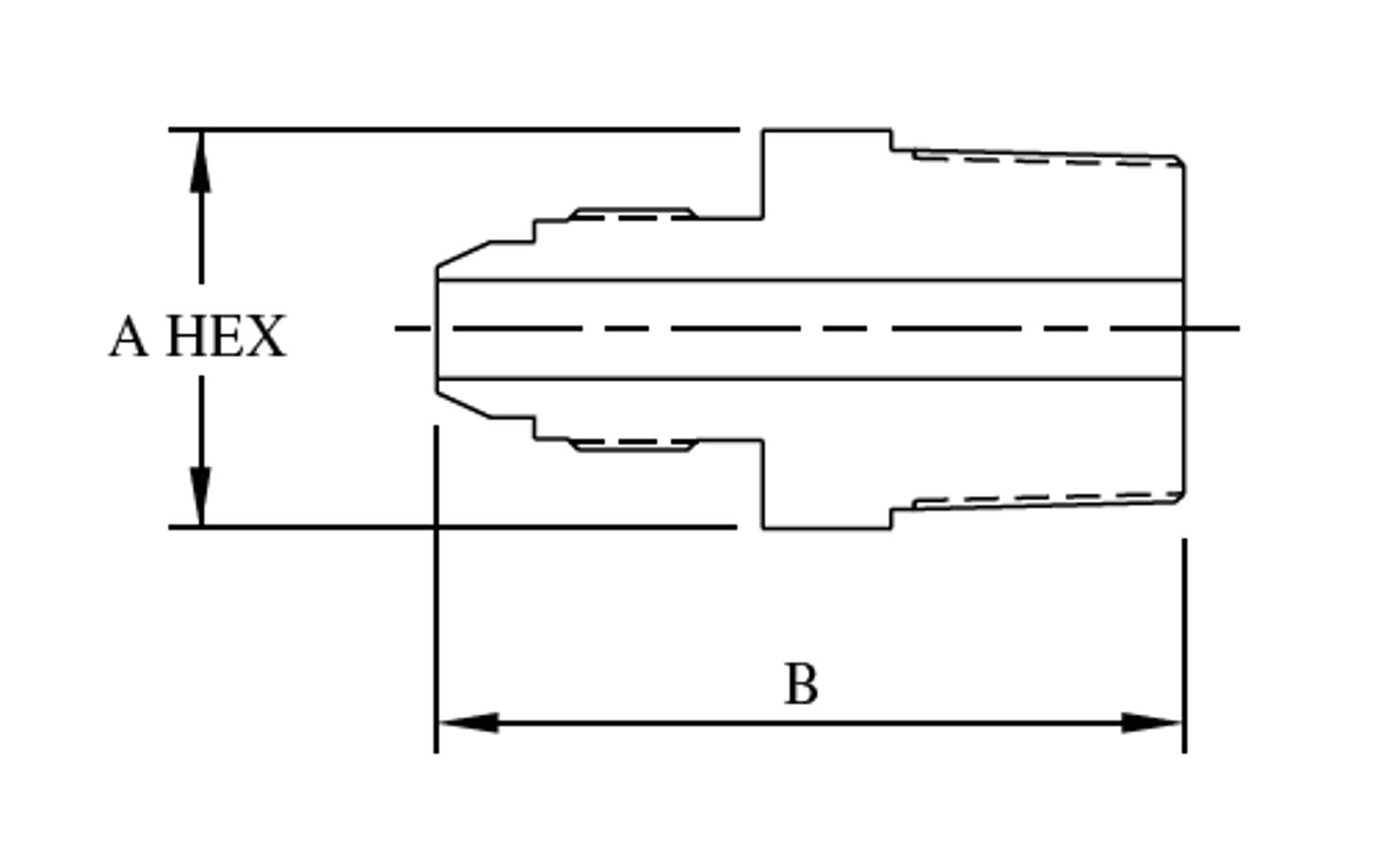

H/P Male X NPT Male

Catalog Number

Male H/P

Male NPT

Port

MAWP

A

B

MA4H2P-SOG

1/4"

1/8"

0.125" (3.2)

10,000 PSI
690 bar

1.00" (25.4)

2.18" (55.4)

MA4H4P-SOG

1/4"

1/4"

0.125" (3.2)

10,000 PSI
690 bar

1.00" (25.4)

2.18" (55.4)

MA4H6P-SOG

1/4"

3/8"

0.125" (3.2)

10,000 PSI
690 bar

0.75" (19.1)

1.86" (47.2)

MA4H8P-SOG

1/4"

1/2"

0.125" (3.2)

10,000 PSI
690 bar

1.00" (25.4)

2.18" (55.4)

MA6H2P-SOG

3/8"

1/8"

0.218" (5.5)

10,000 PSI
690 bar

1.38" (35.1)

2.75" (69.9)

MA6H4P-SOG

3/8"

1/4"

0.218" (5.5)

10,000 PSI
690 bar

1.00" (25.4)

2.75" (69.9)

MA6H6P-SOG

3/8"

3/8"

0.218" (5.5)

10,000 PSI
690 bar

0.81" (20.6)

2.19" (55.6)

MA6H8P-SOG

3/8"

1/2"

0.125" (3.2)

10,000 PSI
690 bar

1.00" (25.4)

3.00" (76.2)

MA9H2P-SOG

9/16"

1/8"

0.281" (7.1)

10,000 PSI
690 bar

1.13" (28.7)

2.81" (71.4)

MA9H4P-SOG

9/16"

1/4"

0.250" (6.4)

10,000 PSI
690 bar

1.13" (28.7)

2.81" (71.4)

MA9H6P-SOG

9/16"

3/8"

0.281" (7.1)

10,000 PSI
690 bar

1.13" (28.7)

2.81" (71.4)

MA9H8P-SOG

9/16"

1/2"

0.188" (4.8)

10,000 PSI
690 bar

1.18" (30.0)

3.00" (76.2)

MA9H12P-SOG

9/16"

3/4"

0.281" (7.1)

10,000 PSI
690 bar

1.13" (28.7)

2.63" (66.8)

H/P Male X NPT Male

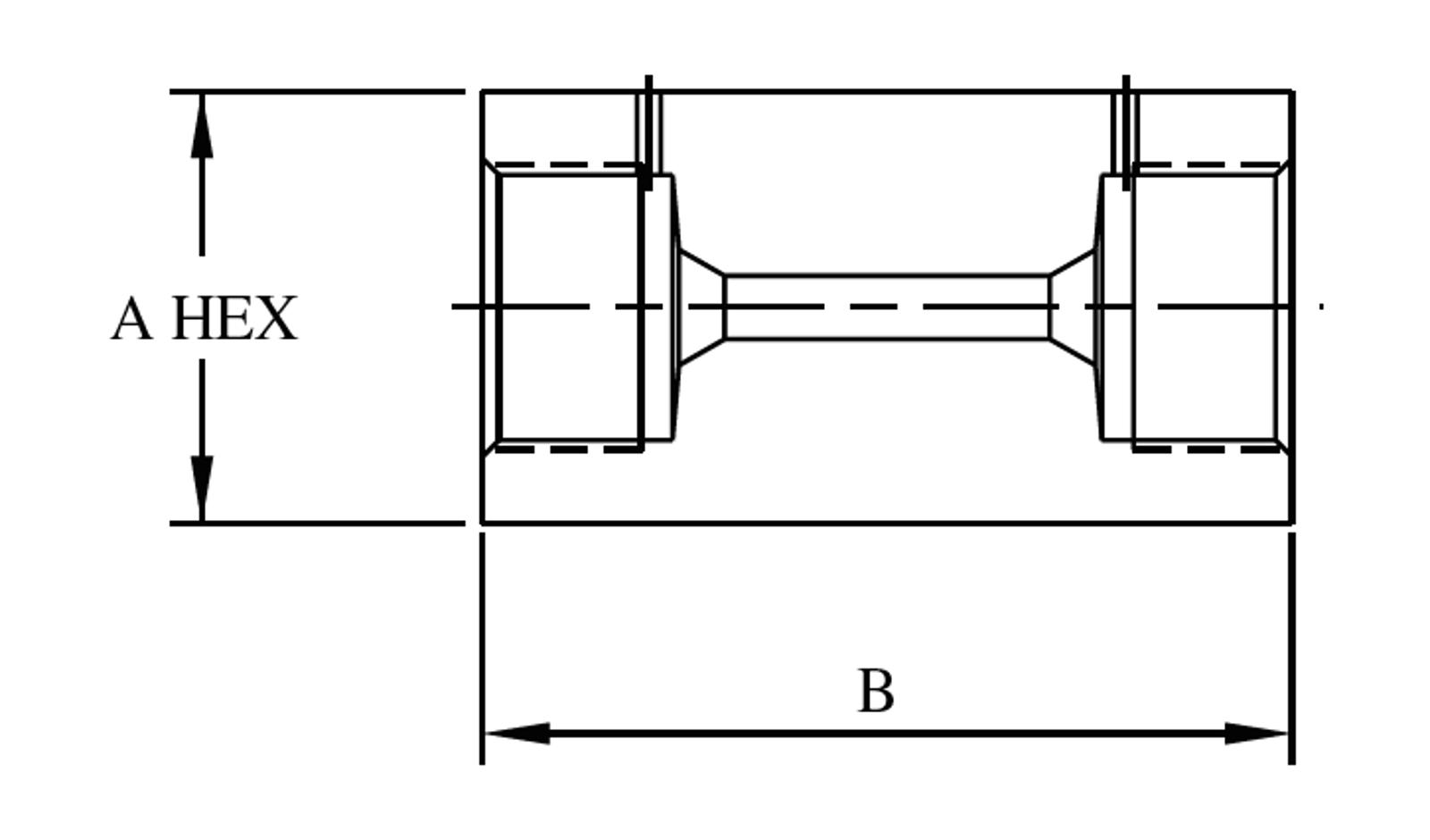

Couplings, H/P Tube to H/P Tube

Catalog Number

Female H/P

Female H/P

Port

MAWP

A

B

60F4-SOG

1/4"

1/4"

0.093" (2.4)

30,000 PSI
2070 bar

0.75" (19.1)

1.38" (35.1)

60F4H6H-SOG

1/4"

3/8"

0.093" (2.4)

30,000 PSI
2070 bar

1.00" (25.4)

1.75" (44.5)

60F4H9H-SOG

1/4"

9/16"

0.093" (2.4)

30,000 PSI
2070 bar

1.38" (35.1)

2.25" (57.2)

60F6-SOG

3/8"

3/8"

0.125" (3.2)

30,000 PSI
2070 bar

1.00" (25.4)

1.75" (44.5)

60F6H9H-SOG

3/8"

9/16"

0.125" (3.2)

30,000 PSI
2070 bar

1.38" (35.1)

2.25" (57.2)

60F9-SOG

9/16"

9/16"

0.187" (4.7)

30,000 PSI
2070 bar

1.38" (35.1)

2.25" (57.2)

Couplings, H/P Tube to H/P Tube

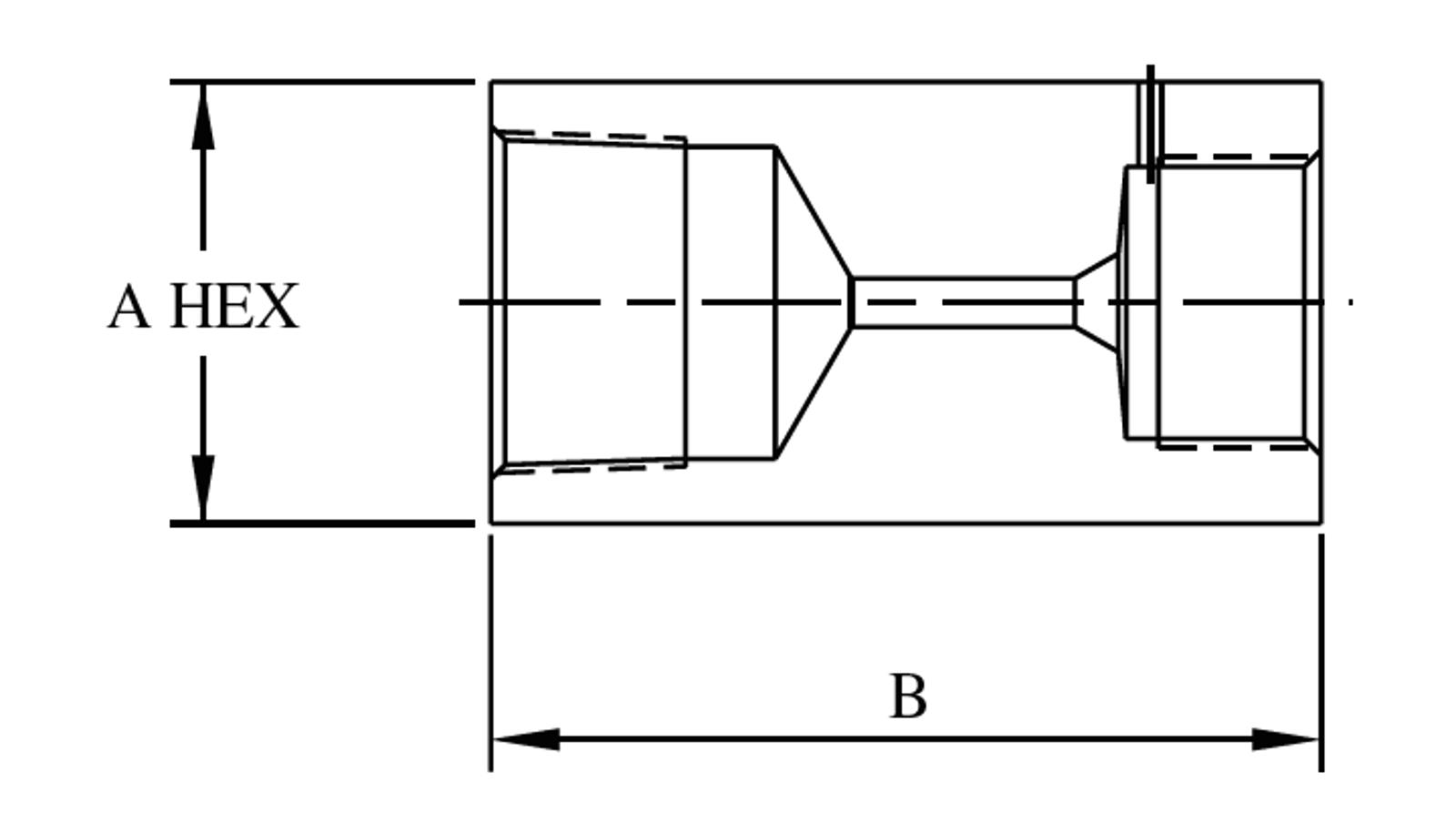

Couplings, H/P Tube to H/P Pipe

Catalog Number

Female H/P

Female NPT

Port

MAWP

A

B

10F4H2P-SOG

1/4"

1/8"

0.093" (2.4)

10,000 PSI
690 bar

0.75" (19.1)

1.50" (38.1)

10F4H4P-SOG

1/4"

1/4"

0.093" (2.4)

10,000 PSI
690 bar

0.75" (19.1)

1.50" (38.1)

10F4H6P-SOG

1/4"

3/8"

0.093" (2.4)

10,000 PSI
690 bar

1.00" (25.4)

1.62" (41.1)

10F4H8P-SOG

1/4"

1/2"

0.093" (2.4)

10,000 PSI
690 bar

1.38" (35.1)

2.12" (53.8)

10F6H2P-SOG

3/8"

1/8"

0.125" (3.2)

10,000 PSI
690 bar

1.00" (25.4)

1.75" (44.5)

10F6H4P-SOG

3/8"

1/4"

0.125" (3.2)

10,000 PSI
690 bar

1.00" (25.4)

1.75" (44.5)

10F6H6P-SOG

3/8"

3/8"

0.125" (3.2)

10,000 PSI
690 bar

1.00" (25.4)

1.75" (44.5)

10F6H8P-SOG

3/8"

1/2"

0.125" (3.2)

10,000 PSI
690 bar

1.38" (35.1)

2.12" (53.8)

10F9H2P-SOG

9/16"

1/8"

0.187" (4.7)

10,000 PSI
690 bar

1.38" (35.1)

2.25" (57.2)

10F9H4P-SOG

9/16"

1/4"

0.187" (4.7)

10,000 PSI
690 bar

1.38" (35.1)

2.25" (57.2)

10F9H6P-SOG

9/16"

3/8"

0.187" (4.7)

10,000 PSI
690 bar

1.38" (35.1)

2.25" (57.2)

10F9H8P-SOG

9/16"

1/2"

0.187" (4.7)

10,000 PSI
690 bar

1.38" (35.1)

2.25" (57.2)

Couplings, H/P Tube to H/P Pipe

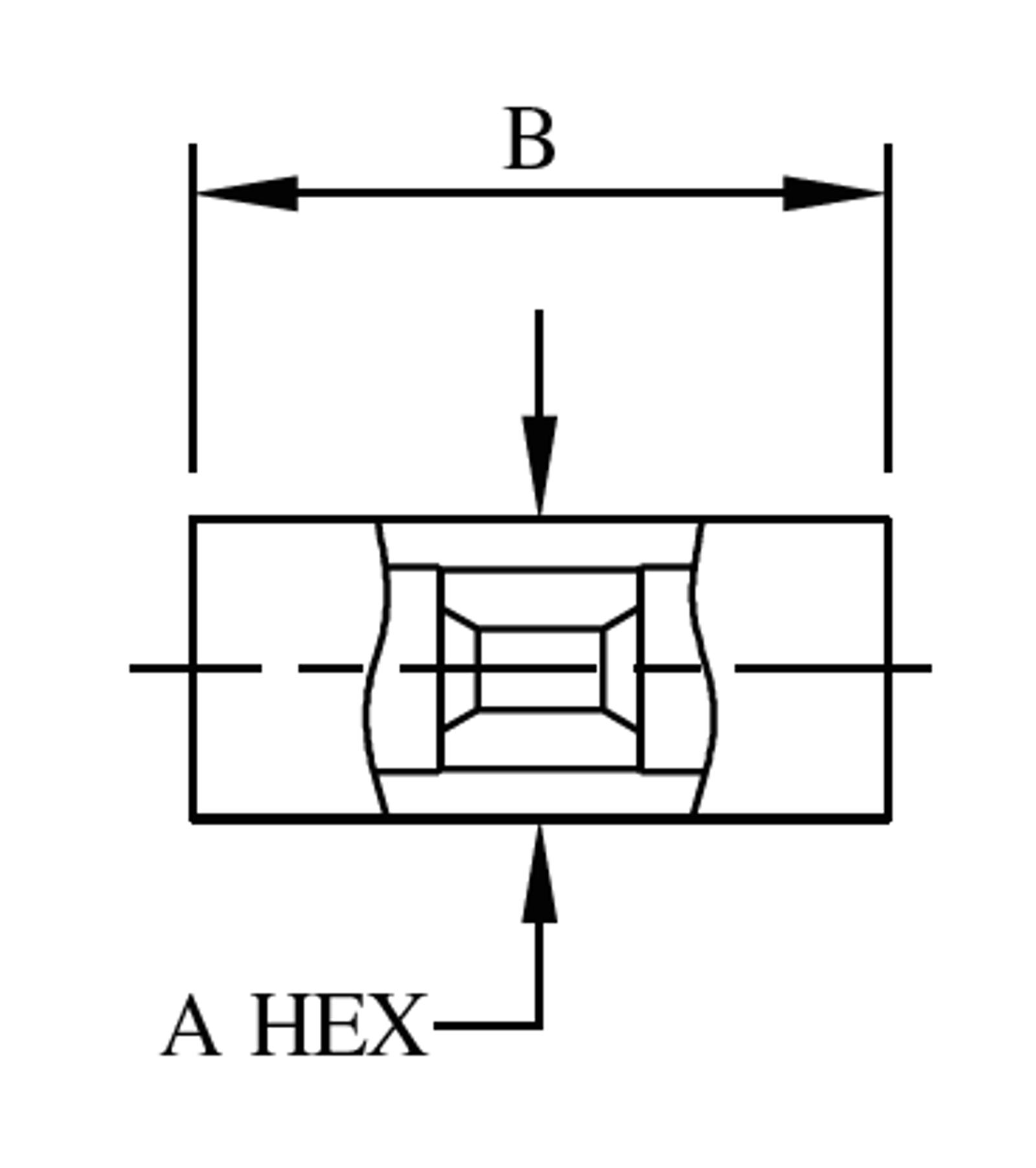

Replaceable Seat Couplings

Catalog Number

Connection

Port

MAWP

A

B

60UF4-SOG

1/4" H/P
Tube

0.093"
(2.4)

30,000 PSI
2070 bar

0.75"
(19.1)

1.50"
(38.1)

60UF6-SOG

3/8" H/P
Tube

0.125"
(3.2)

30,000 PSI
2070 bar

1.38"
(35.1)

1.75"
(44.5)

60UF9-SOG

9/16" H/P
Tube

0.187"
(4.7)

30,000 PSI
2070 bar

1.38"
(35.1)

2.25"
(57.2)

Sour Gas Replaceable Seat Couplings

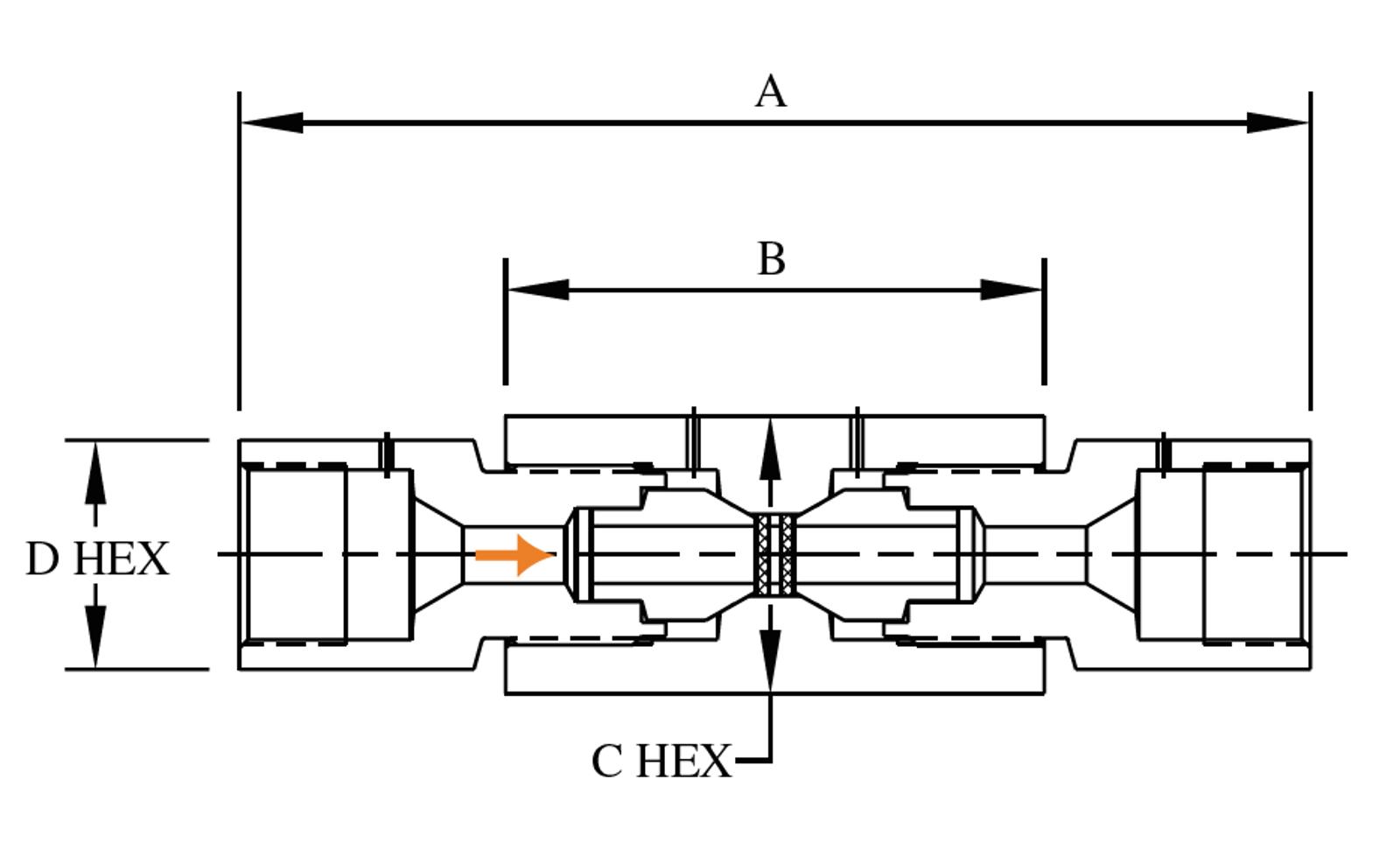

LINE Filters

BuTech line filters are used in system lines to remove contaminating particles from the system fluid. Upstream filter of larger micron rating than downstream filter to prevent clogging of downstream filter.

Standard materials of construction are 316 stainless steel with 300 series stainless steel filter discs. Available in nominal ratings of: 0.5, 2, 5, 10, 20, 40, and 100 micron.

Micron rating of filter must be specified. To order, complete the catalog number with the desired micron rating, upstream first: 60LF4-SOG-40/20 specifies a line filter with 1/4" H/P connections, a 40 micron filter upstream and 20 micron downstream.

Sour Gas LINE Filters

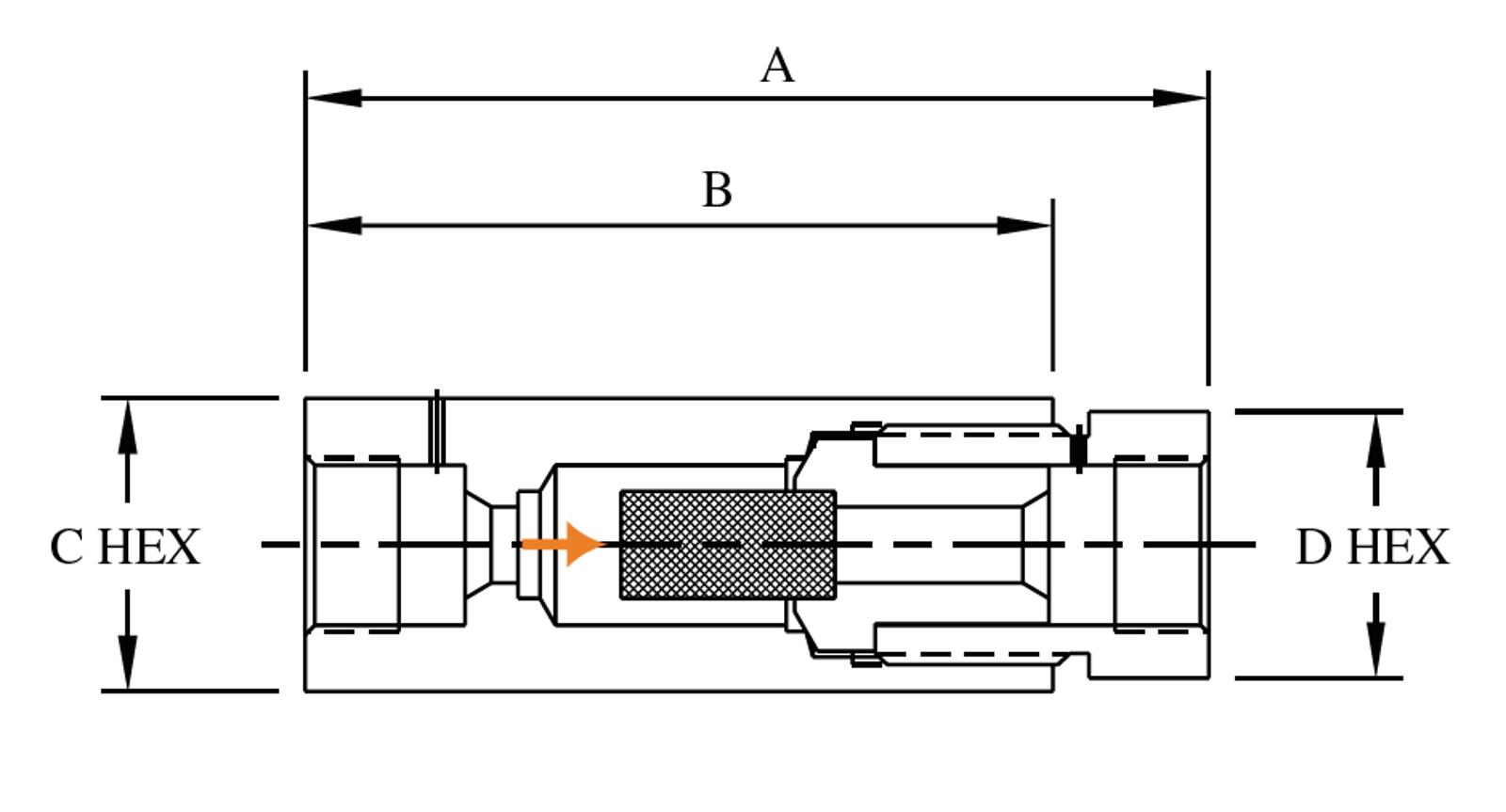

Sintered Cup Filters

BuTech sintered cup filters offer maximum filtration surface area for removal of contaminating particles from the fluid system. They may be used in systems which require high flow rates with minimum pressure drop.

Standard materials of construction are 316 stainless steel with 300 series stainless steel filter discs. Available in nominal ratings of: 5, 10, 20, 40, and 100 micron.

Micron rating of filter must be specified. To order, complete the catalog number with the desired micron rating: 60SCF4-SOG-20 specifies a line filter with 1/4" H/P connections and a 20 micron filter.

Sour Gas Sintered Cup Filters

BuTech - Equipment for Sour Gas Service

Access the data sheet, installation manual or other technical documents you need by using our Technical Resources Finder. Simply apply the filters or type your query into the search field to locate the right document.
