Butech Sour Gas Needle Valves | NACE-Compliant High-Pressure Valves

- 316 annealed stainless steel body- Two-piece Alloy 725 Stem in two styles:

Vee style for on-off service
Regulating style for on-off and flow control service

- Glass-filled PTFE and Nylatron packings
- Integral through holes for bracket mounting. A panel-mounting option is also available

- Wide range of options allow customizing of valve

- Positive gland locking device

Seal Kit Selector

Pump & Compressor Selector

1/4" H/P TUBE CONED AND THREADED

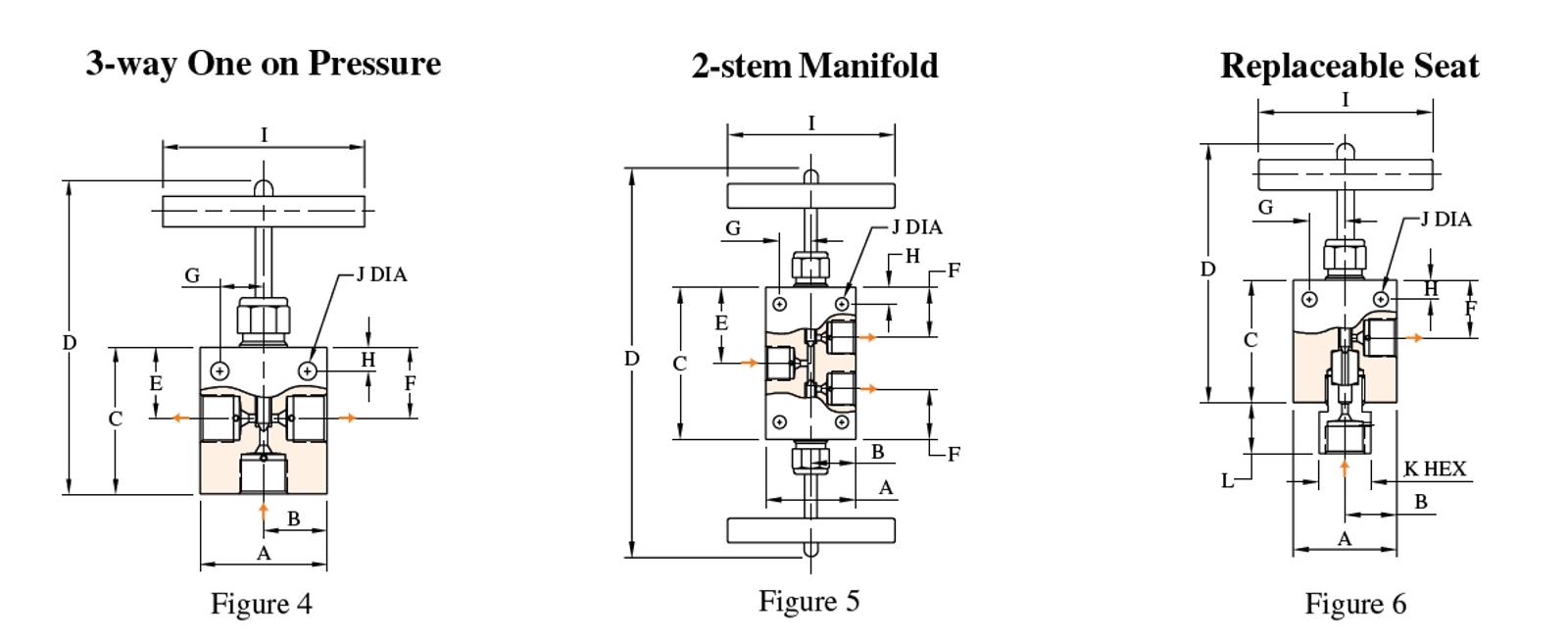

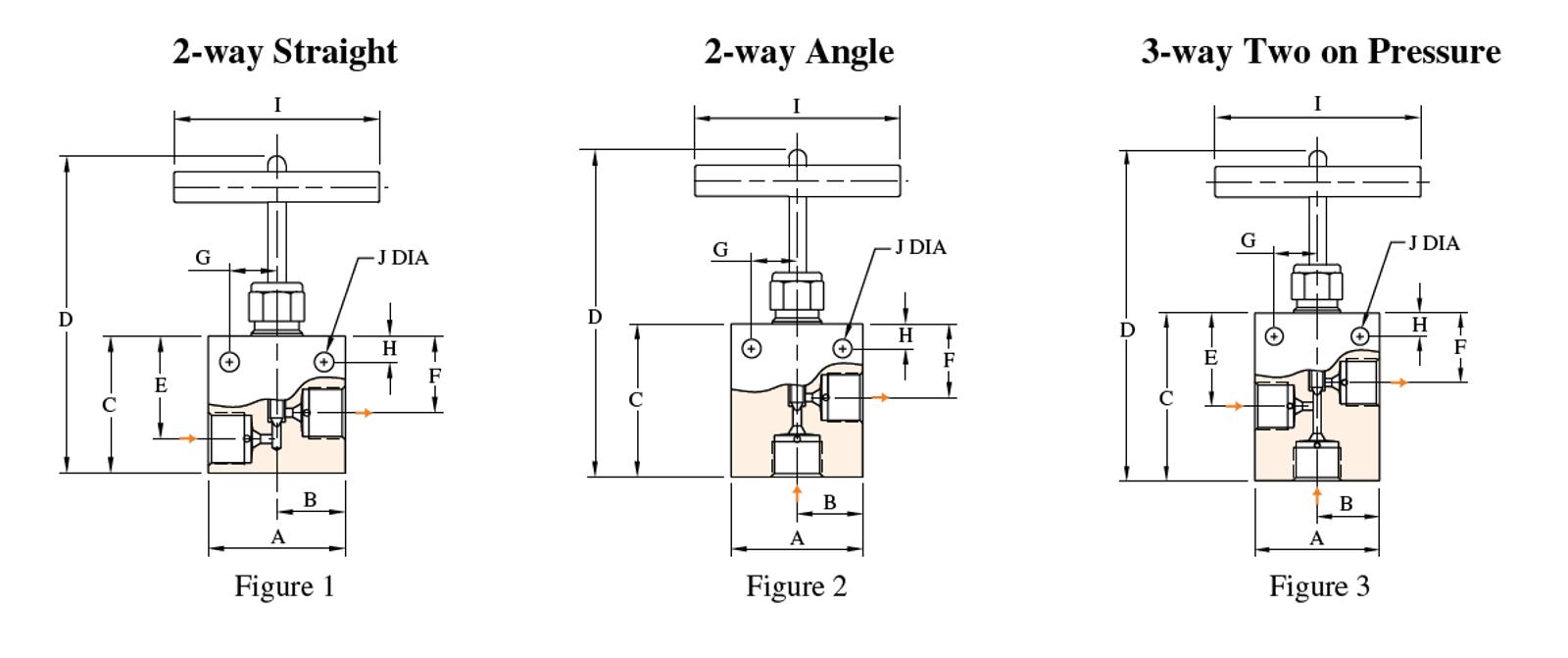

Catalog Number	Style	A	B	C	D	E	F	G	H	I	J	K	L	Thk.	Fig
30UV41V-SOG 30UV41R-SOG	Vee Reg	2.00" (50.8)	1.00" (25.4)	2.00" (50.8)	4.77" (121.2)	1.50" (38.1)	1.12" (28.4)	0.69" (17.5)	0.38" (9.7)	3.00" (76.2)	0.28" (7.1)	---	---	1.00" (25.4)	1
30UV42V-SOG 30UV42R-SOG	Vee Reg	2.00" (50.8)	1.00" (25.4)	2.00" (50.8)	4.77" (121.2)	---	1.12" (28.4)	0.69" (17.5)	0.38" (9.7)	3.00" (76.2)	0.28" (7.1)	---	---	1.00" (25.4)	2
30UV43V-SOG 30UV43R-SOG	Vee Reg	2.00" (50.8)	1.00" (25.4)	2.12" (53.8)	4.89" (124.2)	1.50" (38.1)	1.12" (28.4)	0.69" (17.5)	0.38" (9.7)	3.00" (76.2)	0.28" (7.1)	---	---	1.00" (25.4)	3
30UV44V-SOG 30UV44R-SOG	Vee Reg	2.00" (50.8)	1.00" (25.4)	2.00" (50.8)	4.77" (121.2)	1.12" (28.4)	1.12" (28.4)	0.69" (17.5)	0.38" (9.7)	3.00" (76.2)	0.28" (7.1)	---	---	1.00" (25.4)	4
30UV45V-SOG 30UV45R-SOG	Vee Reg	2.00" (50.8)	1.00" (25.4)	3.06" (77.7)	8.60" (218.4)	1.53" (38.9)	1.12" (28.4)	0.69" (17.5)	0.38" (9.7)	3.00" (76.2)	0.28" (7.1)	---	---	1.00" (25.4)	5
30UV46V-SOG 30UV46R-SOG	Vee Reg	2.00" (50.8)	1.00" (25.4)	2.38" (60.5)	5.15" (130.8)	---	1.12" (28.4)	0.69" (17.5)	0.38" (9.7)	3.00" (76.2)	0.28" (7.1)	0.75" (19.1)	1.47" (37.3)	1.00" (25.4)	6

3/8" H/P TUBE CONED AND THREADED

Catalog Number	Stem Style	A	B	C	D	E	F	G	H	I	J	K	L	Thk.	Fig
30UV61V-SOG 30UV61R-SOG	Vee Reg	2.00" (50.8)	1.00" (25.4)	2.00" (50.8)	4.77" (121.2)	1.50" (38.1)	1.12" (28.4)	0.69" (17.5)	0.38" (9.7)	3.00" (76.2)	0.28" (7.1)	---	---	1.00" (25.4)	1
30UV62V-SOG 30UV62R-SOG	Vee Reg	2.00" (50.8)	1.00" (25.4)	2.12" (53.8)	4.89" (124.2)	---	1.12" (28.4)	0.69" (17.5)	0.38" (9.7)	3.00" (76.2)	0.28" (7.1)	---	---	1.00" (25.4)	2
30UV63V-SOG 30UV63R-SOG	Vee Reg	2.00" (50.8)	1.00" (25.4)	2.50" (63.5)	5.32" (135.1)	1.50" (38.1)	1.12" (28.4)	0.69" (17.5)	0.38" (9.7)	3.00" (76.2)	0.28" (7.1)	---	---	1.00" (25.4)	3
30UV64V-SOG 30UV64R-SOG	Vee Reg	2.00" (50.8)	1.00" (25.4)	2.12" (53.8)	4.89" (124.2)	1.12" (28.4)	1.12" (28.4)	0.69" (17.5)	0.38" (9.7)	3.00" (76.2)	0.28" (7.1)	---	---	1.00" (25.4)	4
30UV65V-SOG 30UV65R-SOG	Vee Reg	2.00" (50.8)	1.00" (25.4)	3.25" (82.6)	8.79" (223.3)	1.62" (41.1)	1.12" (28.4)	0.69" (17.5)	0.38" (9.7)	3.00" (76.2)	0.28" (7.1)	---	---	1.00" (25.4)	5
30UV66V-SOG 30UV66R-SOG	Vee Reg	2.00" (50.8)	1.00" (25.4)	2.38" (60.5)	5.15" (130.8)	---	1.12" (28.4)	0.69" (17.5)	0.38" (9.7)	3.00" (76.2)	0.28" (7.1)	1.00" (25.4)	1.15" (29.2)	1.00" (25.4)	6

9/16" H/P TUBE CONED AND THREADED

Catalog Number	Stem Style	A	B	C	D	E	F	G	H	I	J	K	L	Thk.	Fig
30UV91V-SOG 30UV91R-SOG	Vee Reg	2.62" (66.5)	1.31" (33.3)	2.44" (62.0)	5.20" (132.1)	1.56" (39.6)	1.12" (28.4)	0.69" (17.5)	0.38" (9.7)	3.00" (76.2)	0.25" (6.4)	---	---	1.50" (38.1	1
30UV92V-SOG 30UV92R-SOG	Vee Reg	2.62" (66.5)	1.31" (33.3)	3.00" (76.2)	5.44" (138.2)	---	1.62" (41.1)	0.69" (17.5)	0.38" (9.7)	3.00" (76.2)	0.28" (7.1)	---	---	1.50" (38.1)	2
30UV93V-SOG 30UV93R-SOG	Vee Reg	2.62" (66.5)	1.31" (33.3)	2.88" (73.2)	5.65" (143.5)	1.56" (39.6)	1.12" (28.4)	0.69" (17.5)	0.38" (9.7)	3.00" (76.2)	0.28" (7.1)	---	---	1.50" (38.1)	3
30UV94V-SOG 30UV94R-SOG	Vee Reg	2.62" (66.5)	1.31" (33.3)	2.44" (62.0)	5.21" (132.3)	1.12" (28.4)	1.12" (28.4)	0.69" (17.5)	0.38" (9.7)	3.00" (76.2)	0.28" (7.1)	---	---	1.50" (38.1)	4
30UV95V-SOG 30UV95R-SOG	Vee Reg	2.62" (66.5)	1.31" (33.3)	4.75" (120.7)	10.29" (261.4)	2.38" (60.5)	1.62" (41.1)	0.69" (17.5)	0.50" (12.7)	3.00" (76.2)	0.28" (7.1)	---	---	1.50" (38.1)	5
30UV96V-SOG 30UV96R-SOG	Vee Reg	2.62" (66.5)	1.31" (33.3)	2.44" (62.0)	5.21" (132.3)	---	1.19" (30.2)	0.69" (17.5)	0.38" (9.7)	3.00" (76.2)	0.28" (7.1)	1.38" (35.1)	1.65" (41.9)	1.50" (38.1)	6

1/4" H/P TUBE CONED AND THREADED

Catalog Number	Stem Style	A	B	C	D	E	F	G	H	I	J	K	L	Thk.	Fig
60UV41V-SOG 60UV41R-SOG	Vee Reg	2.00" (50.8)	1.00" (25.4)	2.12" (53.8)	4.90" (124.5)	1.69" (42.9)	1.31" (33.3)	0.69" (17.5)	0.38" (9.7)	3.00" (76.2)	0.25" (6.4)	---	---	1.00" (25.4)	1
60UV42V-SOG 60UV42R-SOG	Vee Reg	2.00" (50.8)	1.00" (25.4)	2.38" (60.5)	5.16" (131.1)	---	1.31" (33.3)	0.69" (17.5)	0.38" (9.7)	3.00" (76.2)	0.25" (6.4)	---	---	1.00" (25.4)	2
60UV43V-SOG 60UV43R-SOG	Vee Reg	2.00" (50.8)	1.00" (25.4)	2.38" (60.5)	5.16" (131.1)	1.69" (42.9)	1.31" (33.3)	0.69" (17.5)	0.38" (9.7)	3.00" (76.2)	0.25" (6.4)	---	---	1.00" (25.4)	3
60UV44V-SOG 60UV44R-SOG	Vee Reg	2.00" (50.8)	1.00" (25.4)	2.38" (60.5)	5.16" (131.1)	1.31" (33.3)	1.31" (33.3)	0.69" (17.5)	0.38" (9.7)	3.00" (76.2)	0.25" (6.4)	---	---	1.00" (25.4)	4
60UV45V-SOG 60UV45R-SOG	Vee Reg	2.00" (50.8)	1.00" (25.4)	3.44" (87.4)	9.00" (228.6)	1.72" (43.7)	1.31" (33.3)	0.69" (17.5)	0.38" (9.7)	3.00" (76.2)	0.25" (6.4)	---	---	1.00" (25.4)	5
60UV46V-SOG 60UV46R-SOG	Vee Reg	2.00" (50.8)	1.00" (25.4)	2.62" (66.5)	5.40" (137.2)	---	1.31" (33.3)	0.69" (17.5)	0.38" (9.7)	3.00" (76.2)	0.25" (6.4)	0.75" (19.1)	1.29" (32.8)	1.00" (25.4)	6

3/8" H/P TUBE CONED AND THREADED

Catalog Number	Stem Style	A	B	C	D	E	F	G	H	I	J	K	L	Thk.	Fig
60UV61V-SOG 60UV61R-SOG	Vee Reg	2.00" (50.8)	1.00" (25.4)	2.25" (57.2)	5.03" (127.8)	1.69" (42.9)	1.31" (33.3)	0.69" (17.5)	0.38" (9.7)	3.00" (76.2)	0.25" (6.4)	---	---	1.00" (25.4)	1
60UV62V-SOG 60UV62R-SOG	Vee Reg	2.00" (50.8)	1.00" (25.4)	2.62" (66.5)	5.40" (137.2)	---	1.31" (33.3)	0.69" (17.5)	0.38" (9.7)	3.00" (76.2)	0.25" (6.4)	---	---	1.00" (25.4)	2
60UV63V-SOG 60UV63R-SOG	Vee Reg	2.00" (50.8)	1.00" (25.4)	2.75" (69.9)	5.53" (140.5)	1.69" (42.9)	1.31" (33.3)	0.69" (17.5)	0.38" (9.7)	3.00" (76.2)	0.25" (6.4)	---	---	1.00" (25.4)	3
60UV64V-SOG 60UV64R-SOG	Vee Reg	2.00" (50.8)	1.00" (25.4)	2.62" (66.5)	5.40" (137.2)	1.31" (33.3)	1.31" (33.3)	0.69" (17.5)	0.38" (9.7)	3.00" (76.2)	0.25" (6.4)	---	---	1.00" (25.4)	4
60UV65V-SOG 60UV65R-SOG	Vee Reg	2.00" (50.8)	1.00" (25.4)	3.75" (95.3)	9.31" (236.5)	1.88" (47.8)	1.31" (33.3)	0.69" (17.5)	0.38" (9.7)	3.00" (76.2)	0.25" (6.4)	---	---	1.00" (25.4)	5
60UV66V-SOG 60UV66R-SOG	Vee Reg	2.00" (50.8)	1.00" (25.4)	2.62" (66.5)	5.40" (137.2)	---	1.31" (33.3)	0.69" (17.5)	0.38" (9.7)	3.00" (76.2)	0.25" (6.4)	1.00" (25.4)	1.21" (30.7)	1.00" (25.4)	6

9/16" H/P TUBE CONED AND THREADED

Catalog Number	Stem Style	A	B	C	D	E	F	G	H	I	J	K	L	Thk.	Fig
60UV91V-SOG 60UV91R-SOG	Vee Reg	2.62" (66.5)	1.31" (33.3)	2.50" (63.5)	5.28" (134.1)	1.69" (42.9)	1.31" (33.3)	0.69" (17.5)	0.38" (9.7)	3.00" (76.2)	0.28" (7.1)	---	---	1.50" (38.1)	1
60UV92V-SOG 60UV92R-SOG	Vee Reg	2.62" (66.5)	1.31" (33.3)	2.81" (71.4)	5.59" (142.0)	---	1.31" (33.3)	0.69" (17.5)	0.38" (9.7)	3.00" (76.2)	0.28" (7.1)	---	---	1.50" (38.1)	2
60UV93V-SOG 60UV93R-SOG	Vee Reg	2.62" (66.5)	1.31" (33.3)	3.03" (77.0)	5.81" (147.6)	1.75" (44.5)	1.31" (33.3)	0.69" (17.5)	0.38" (9.7)	3.00" (76.2)	0.28" (7.1)	---	---	1.50" (38.1)	3
60UV94V-SOG 60UV94R-SOG	Vee Reg	2.62" (66.5)	1.31" (33.3)	2.81" (71.4)	5.59" (142.0)	1.31" (33.3)	1.31" (33.3)	0.69" (17.5)	0.38" (9.7)	3.00" (76.2)	0.28" (7.1)	---	---	1.50" (38.1)	4
60UV95V-SOG 60UV95R-SOG	Vee Reg	2.62" (66.5)	1.31" (33.3)	4.12" (104.6)	9.68" (245.9)	2.06" (52.3)	1.31" (33.3)	0.69" (17.5)	0.50" (12.7)	3.00" (76.2)	0.28" (7.1)	---	---	1.50" (38.1)	5
60UV96V-SOG 60UV96R-SOG	Vee Reg	2.62" (66.5)	1.31" (33.3)	2.62" (66.5)	5.40" (137.2)	---	1.31" (33.3)	0.69" (17.5)	0.38" (9.7)	3.00" (76.2)	0.28" (7.1)	1.38" (35.1)	1.39" (35.3)	1.50" (38.1)	6
