Catalog Number | 30WGV97V-SOG |
Service | Sour Oil & Gas |
Inlet Port | 9/16" Female H/P |
Discharge Port | (3) 9/16" Female H/P |
Pressure Rating | 20,000 PSI |
Standard Material | 316 annealed |
BuTech Wellhead Gauge and Bleed valves are standard 316 stainless steel annealed material for SO service and comply with NACE MR0175 / ISO 15156. Special materials available on request.

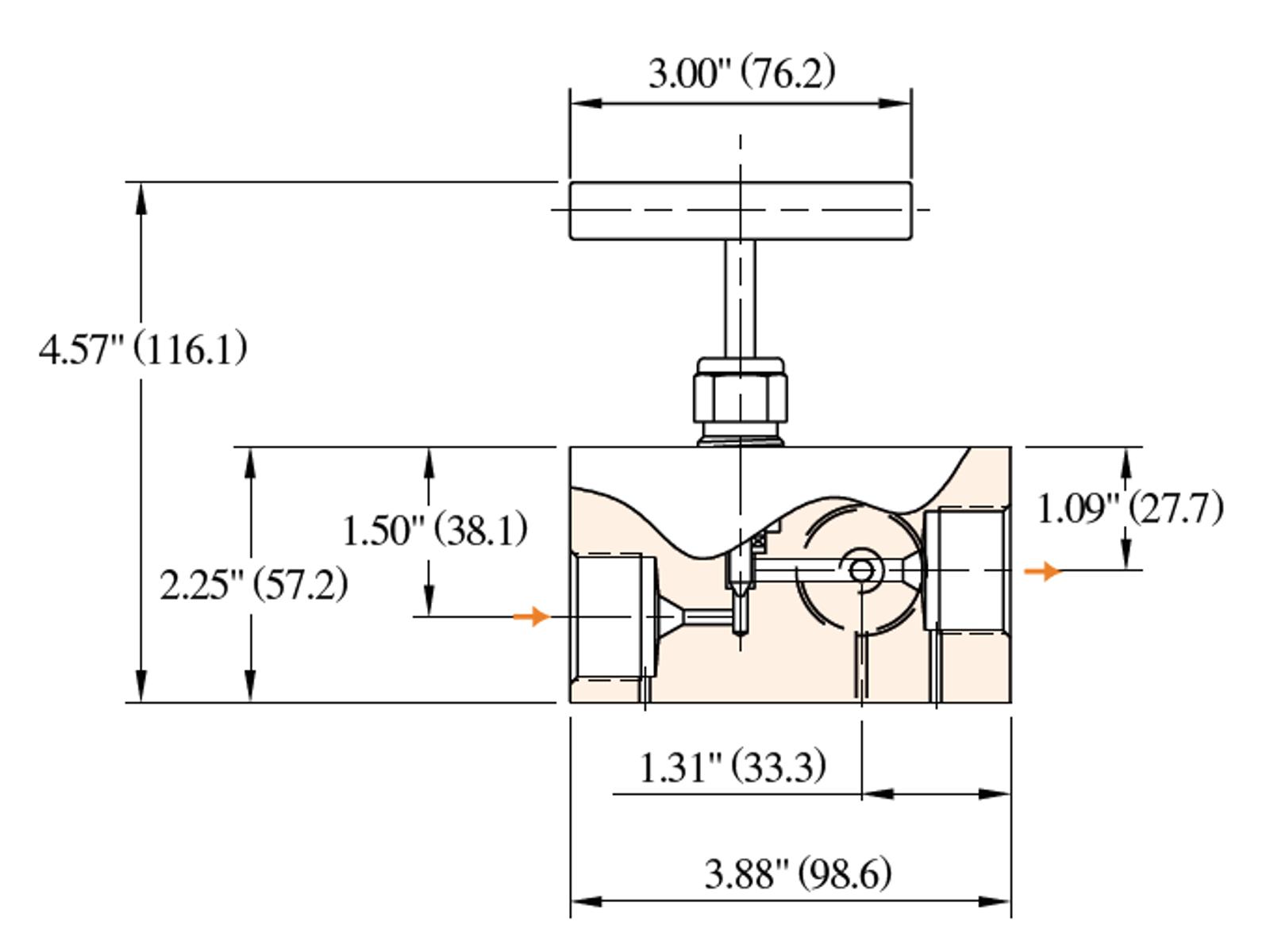

Wellhead Gauge Valve 30WGV97V-SOG
- One inlet, three outlet ports
- Ideal for sampling or instrument calibration
- Packing located below stem threads
- Metal-to-metal seat for bubble-tight shutoff
- One-piece stem
- Collars lands not included

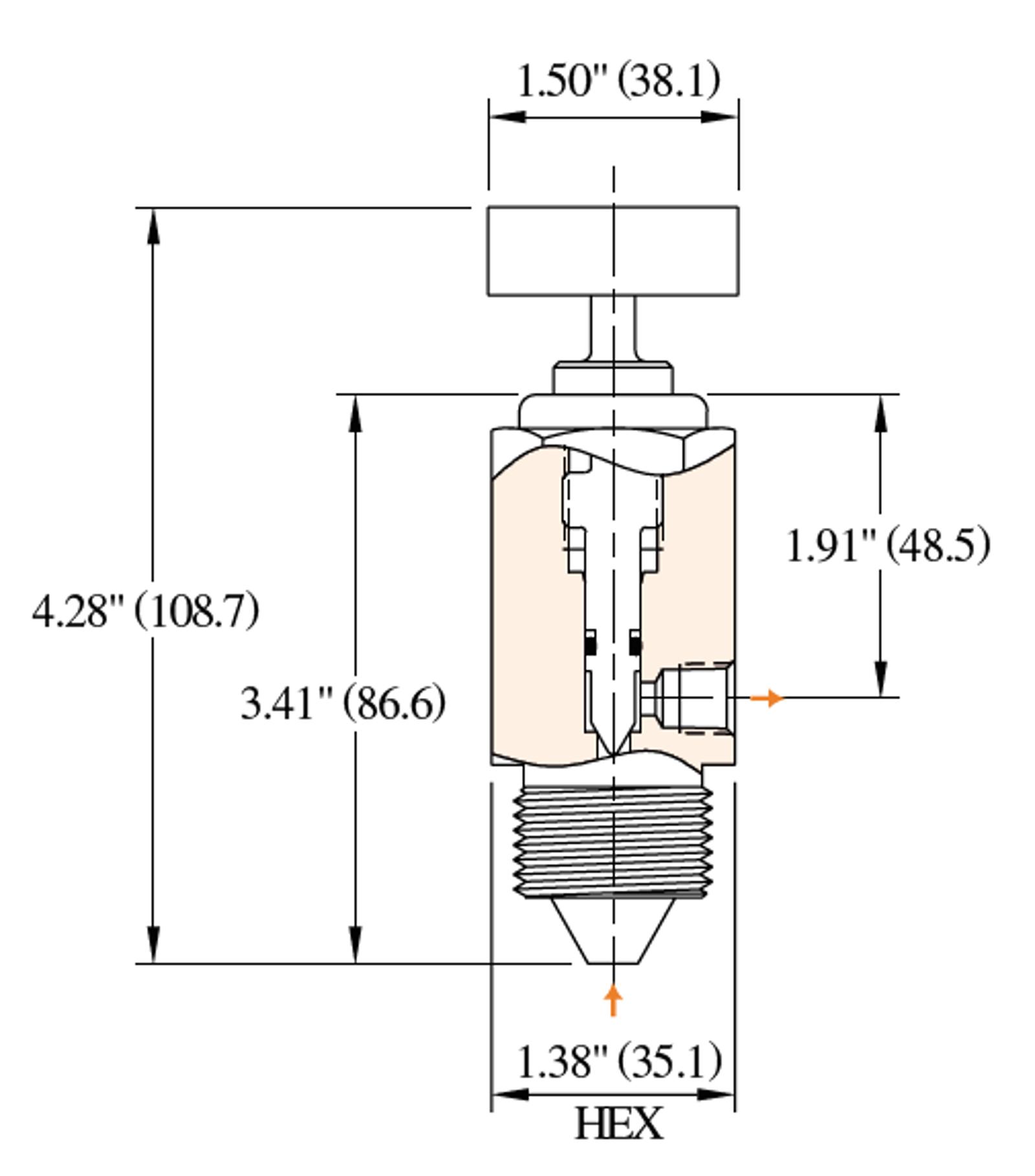

Bleed Valve 30ABV9H2P-SOG
- Vent port tapped for safe plumbing
- Positive blow-out prevention on stem
- Easy T-handle operation
- Metal-to-metal seat for bubble-tight shutoff
- One-piece stem
- Compatible with standard API test and gauge connections for 20,000 PSI (1380 bar) service
Catalog Number | 30ABV9H2P-SOG |
Service | Sour Oil & Gas |
Inlet Port | 9/16" Male H/P |
Discharge Port | 1/8" Female NPT |
Pressure Rating | 20,000 PSI |
Standard Material | 316 annealed |
